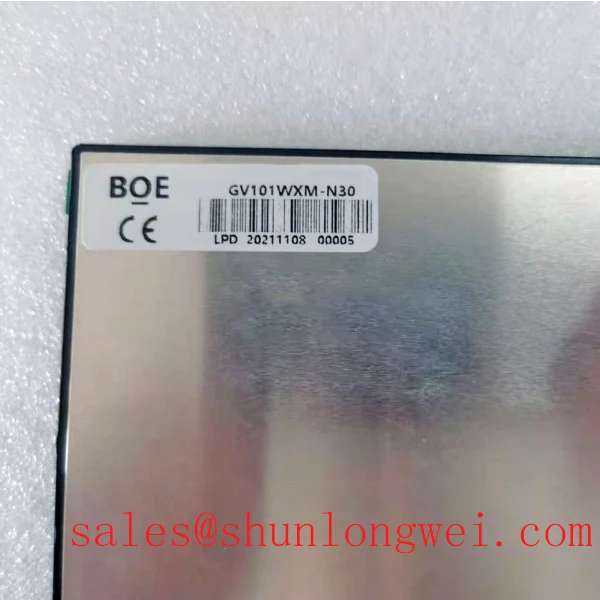

BOE GV101WXM-N30 | Industrial-Grade 10.1" WXGA Display for Demanding Environments
The BOE GV101WXM-N30 is a robust 10.1-inch TFT-LCD module engineered specifically for applications where visual clarity and operational reliability are non-negotiable. It delivers a crisp WXGA (1280x800) resolution and leverages Advanced Super Dimension Switch (ADS) technology to provide superior image quality. This display is an ideal solution for industrial control systems, medical devices, and specialized human-machine interfaces (HMIs) that must perform flawlessly under challenging conditions.
Technical Deep Dive: Core Advantages of the GV101WXM-N30
-
Advanced Super Dimension Switch (ADS) Technology
Principle: The GV101WXM-N30 utilizes ADS, an IPS-like technology, which creates a horizontal electric field to align liquid crystal molecules. This prevents light leakage and color distortion when viewed from off-angles.
Application Value: For HMI panels or medical equipment where multiple operators may view the screen simultaneously, this ensures consistent, accurate color reproduction and readability from any perspective (85/85/85/85 viewing angles). It eliminates the color inversion common in older TN panels, leading to fewer operator errors and improved diagnostic confidence.
-
Wide Operating Temperature Range
Principle: Built with industrial-grade components and a specialized wide temperature liquid crystal, the GV101WXM-N30 is designed to operate reliably from -20°C to +70°C. Its robust construction resists the physical stresses induced by thermal cycling.
Application Value: This feature is critical for devices deployed in non-climate-controlled environments, such as factory floors, outdoor kiosks, or vehicle-mounted systems. It drastically reduces the risk of display failure due to freezing or overheating, enhancing system uptime and minimizing costly field service calls.
Application Scenarios & Value Proposition
- Industrial HMI Panels: The WXGA resolution of the BOE GV101WXM-N30 allows for more complex and intuitive graphical user interfaces compared to older, lower-resolution screens. The wide viewing angles ensure that machine status is clearly visible to operators from various positions on the factory floor.
- Medical Diagnostic Carts: In medical settings, precise color and grayscale representation are crucial for accurate diagnostics. The ADS panel technology ensures that patient data and imaging are displayed without color shift, providing confidence to healthcare professionals. Its durability is essential for equipment that is frequently moved.
- Portable Test & Measurement Instruments: For engineers in the field, a clear and reliable display is paramount. The 350-nit brightness and anti-glare surface treatment of the GV101WXM-N30 make it readable in varied lighting conditions, while its wide temperature range guarantees performance whether working indoors or out.
- In-Vehicle Control Systems: The display's resilience to temperature extremes and inherent vibration resistance make it a prime candidate for integration into logistics, agriculture, or construction vehicle cabins, where reliability is a key safety and efficiency factor.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Model Name | GV101WXM-N30 |
| Screen Size | 10.1 inch |
| Resolution | 1280 (RGB) × 800 (WXGA) |
| Display Technology | a-Si TFT-LCD, ADS, Normally Black |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Interface Type | LVDS (1 ch, 6-bit), 40 pins Connector |
| Operating Temperature | -20 ~ 70 °C |
| Backlight System | WLED, 20K hours lifetime, without driver |
FAQ / Common Engineering Questions
- Is an external driver required for the WLED backlight?Yes, the BOE GV101WXM-N30's LCD backlight system is composed of WLEDs and requires an external constant current driver. This provides design flexibility, allowing engineers to optimize the driver solution for their specific power supply and dimming requirements.
- How does the LVDS interface simplify integration?The standard 1-channel, 6-bit LVDS interface is a widely adopted standard in embedded systems. It offers excellent noise immunity and allows for longer cable runs between the mainboard and the display module, simplifying the internal layout of complex machinery.
- What is the typical supply availability for this industrial module?Unlike consumer-grade panels, the GV101WXM-N30 is part of BOE's industrial lineup, which typically ensures a production lifecycle of 3-5 years or more. This stability is crucial for products with long development and market cycles. For specific long-term supply commitments, please Contact Us for a Quote.
By integrating the BOE GV101WXM-N30, you are not just selecting a display; you are investing in a durable and high-performance visual interface that elevates the reliability and usability of your end product. To see how this and other solutions can fit your project, explore our full range of industrial LCD modules.
