Content last revised on July 16, 2025
Manufacturer: Kyocera

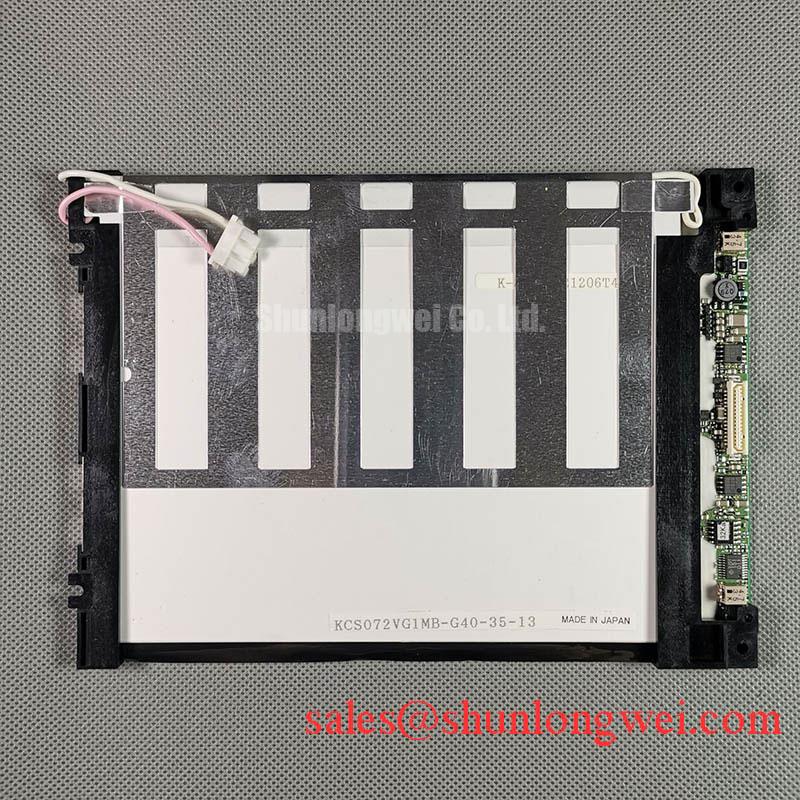

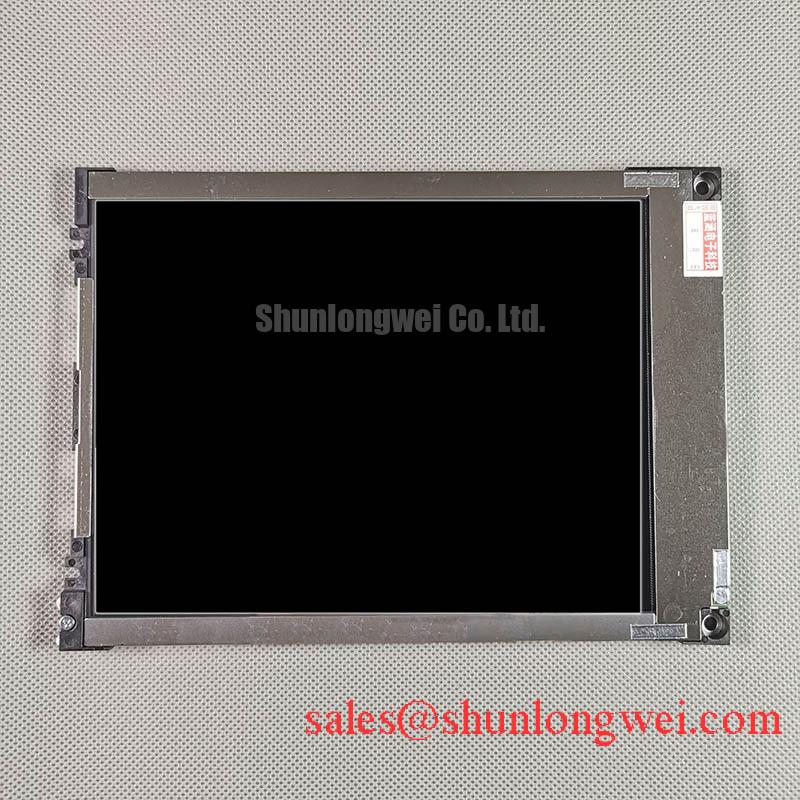

Model Name: KCS072VG1MB-G40
Screen Size: 7.2 inch
Screen Type: LCM , CSTN-LCD
Pixel Number: 640(RGB)×480 (VGA)
Arrangement: RGB Vertical Stripe
Active Area(mm): 145.9 × 109.42 (H×V)
Outline(mm): 179.3 × 130.5 × 6.5 (H×V×D)
Bezel Area(mm): 147.90 × 111.42 (H×V)
Treatment: Glare (Haze 0%)
Luminance: 100 cd/m² (Typ.)
Contrast Ratio: 30 : 1 (Typ.) (TM)
Viewing Angle: 45/50/35/20 (Typ.)(CR≥2) Left / Right / Up / Down
Response: 220/110 (Typ.)(Tr/Td) ms
Work Mode: STN, Normally Black, Transmissive
Color Depth: Color
Backlight: 1 pcs CCFL , 20K hours , Optional
Mass: 170g (Typ.) Used for Industrial
Refresh Rate: 75Hz
Touchscreen: Without
Signal Type: Parallel Data (8-bit) , Connector , 31 pins
Voltage Supply: 3.3V (Typ.)
Max. Ratings: Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
