Content last revised on June 26, 2023
Manufacturer LG Display

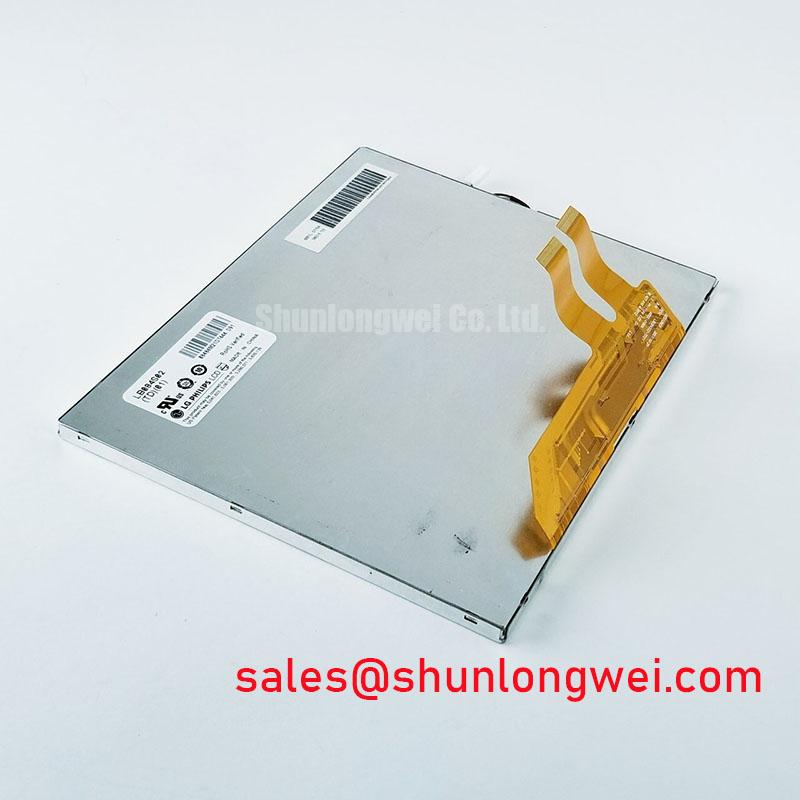

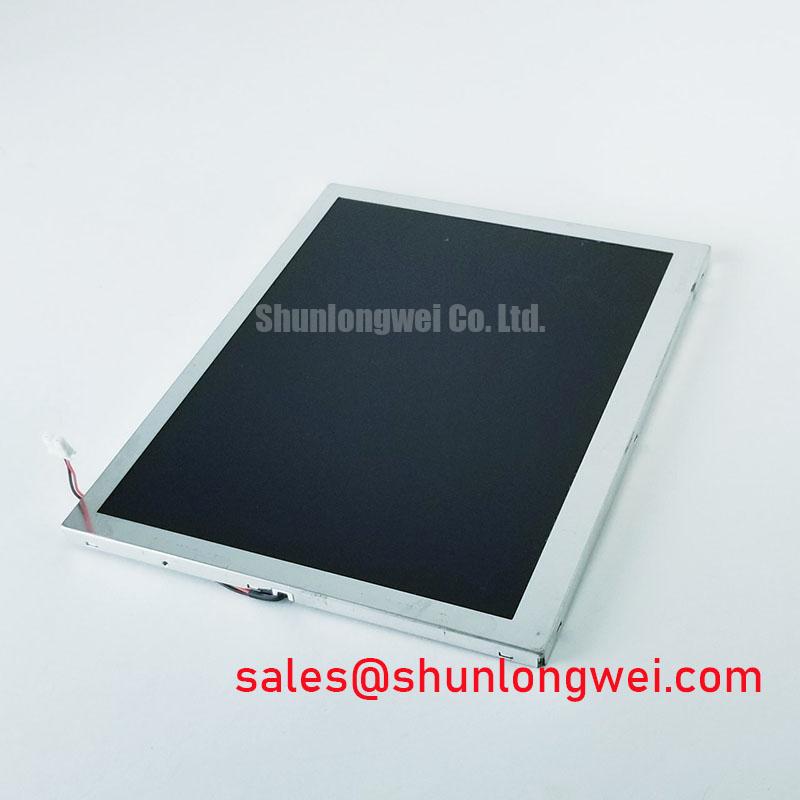

Model Name LB084S02-TD02
Screen Size 8.4 inch
Screen Type LCM , a-Si TFT-LCD
Pixel Number 800(RGB)×600 (SVGA) 119PPI
Arrangement RGB Vertical Stripe
Active Area(mm) 170.4 × 127.8 (H×V)
Outline(mm) 189.75 × 149.4 (H×V×D)
Bezel Area(mm) 174.7 × 135.15 (H×V)
Treatment Antiglare
Luminance 250 cd/m² (Typ.)
Contrast Ratio 500 : 1 (Typ.) (TM)
Viewing Angle 70/70/50/70 (Typ.)(CR≥10) Left / Right / Up / Down
Response 10/15 (Typ.)(Tr/Td) ms
Good View at 6 o'clock
Work Mode TN, Normally White, Transmissive
Color Depth 262K 60% NTSC
Backlight 3S9P WLED , No Driver
Mass 300/310g (Typ./Max.)
Used for Digital Photo Frame
Refresh Rate 60Hz
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC Circuit
Touchscreen Without
Signal Type Parallel RGB (1 ch, 6-bit) , 60 pins FPC
Voltage Supply 3.3/8.0/15.5/-4.5V (Typ.)(VCC/VDD/VGH/VGL)
Max. Ratings Storage Temp.: -20 ~ 70 °C Operating Temp.: -10 ~ 60 °C
