Manufacturer LG.Philips LCD

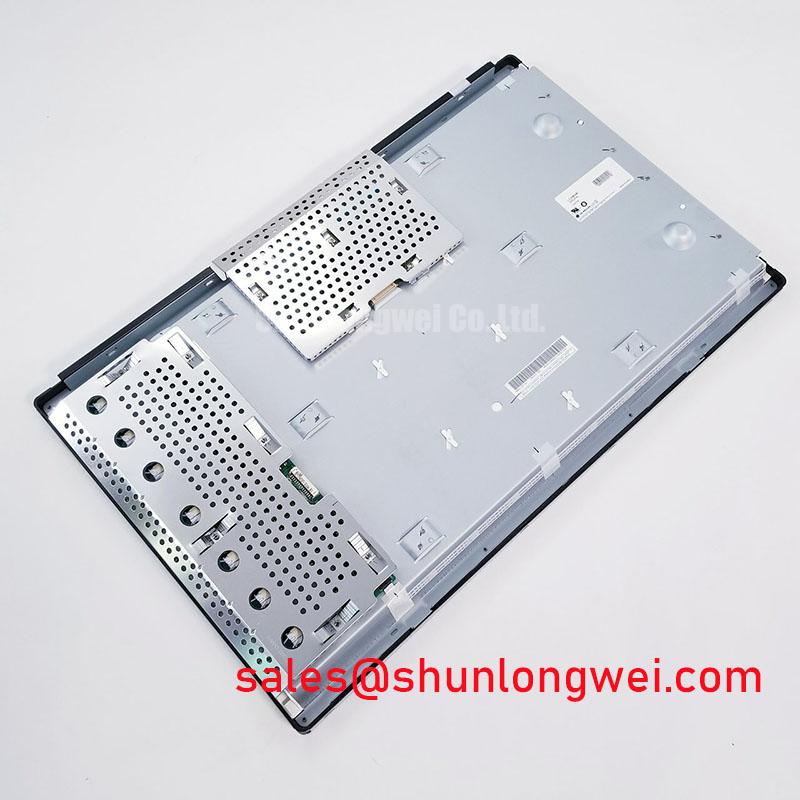

Model Name LC260W01-A5K2
Screen Size 26.0 inch
Screen Type LCM, a-Si TFT-LCD
Pixel Number 1280(RGB)×768 (WXGA) 57PPI
Arrangement RGB Vertical Stripe
Active Area(mm) 566.4 × 339.84 (H×V)
Outline(mm)622 × 389 (H×V×D)
Bezel Area(mm) 571.4 × 344.9 (H×V)
Treatment Antiglare, Hard coating (3H)
Luminance 500 cd/m² (Typ.)
Contrast Ratio 500 : 1 (Typ.) (TM)
Viewing Angle 88/88/88/88 (Typ.)(CR≥10) Left / Right / Up / Down
Response 7.5/8.5 (Typ.)(Tr/Td) ms
Good View at Symmetry
Work Mode S-IPS, Normally Black, Transmissive
Color Depth 16.7M 72% NTSC
Backlight 14 pcs CCFL , 50K hours , With Inverter
Mass 4.00/4.20Kgs (Typ./Max.)
Used for TV Sets
Refresh Rate 60Hz
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC Circuit
Touchscreen Without
Signal Type LVDS (1 ch, 8-bit) , 20 pins Connector
Voltage Supply 12.0V (Typ.)
Max. Ratings Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
