Content last revised on June 19, 2025
Brand LG.Philips LCD

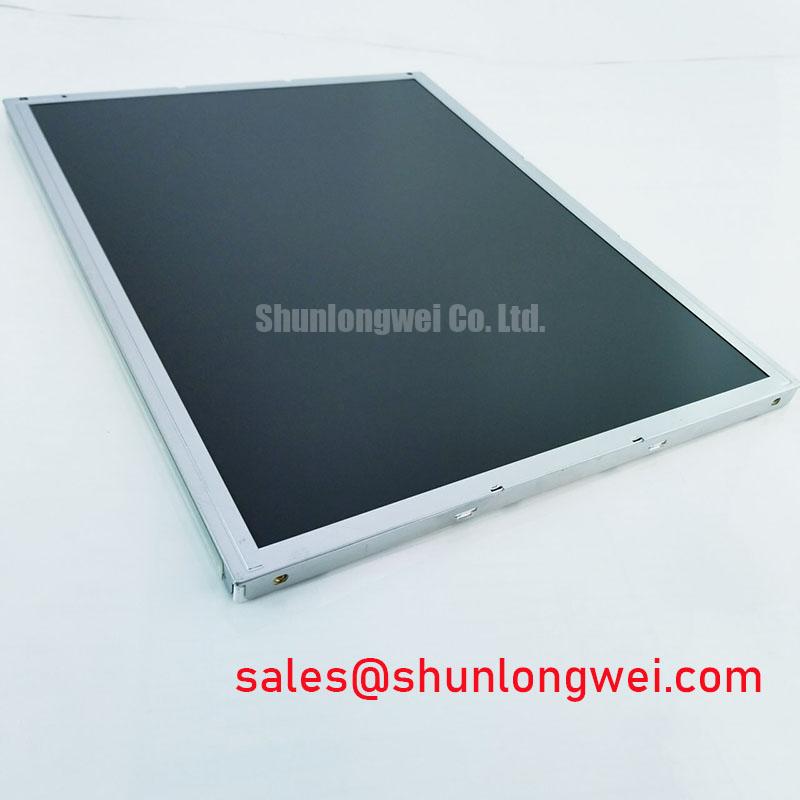

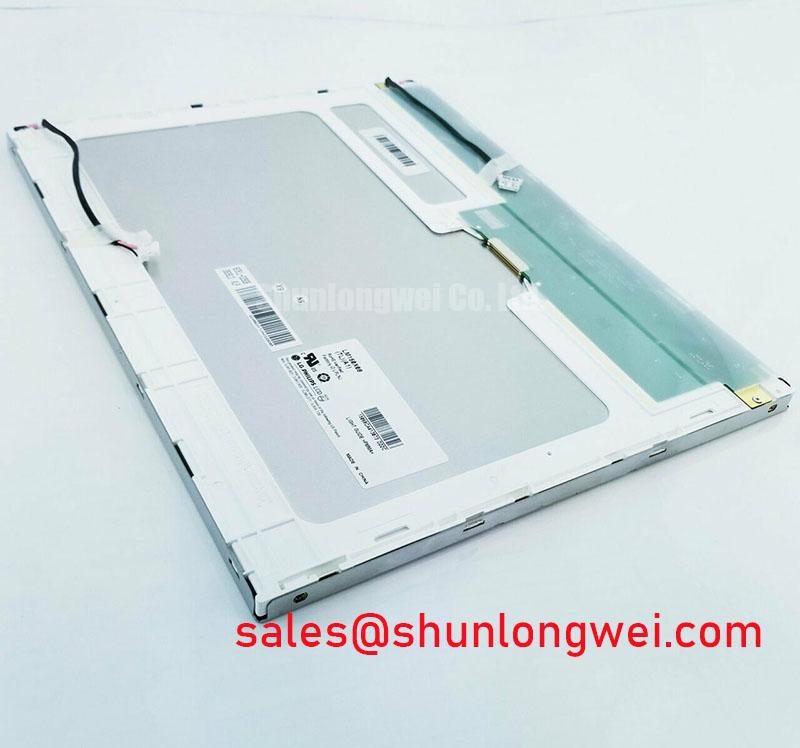

Model LM150X08-TLA2
Diagonal Size 15.0 inch
Type a-Si TFT-LCD, LCM
Pixel Format 1024(RGB)×768 [XGA] 85PPI
Configuration RGB Vertical Stripe
Active Area 304.128(H)×228.096(V) mm
Outline Dim 326.5(H)×253.5(V) ×11.7(D) mm
Bezel Area 307.4(H)×231.3(V) mm
Treatment Antiglare (Haze 13%), Hard coating (3H)
Luminance 250 cd/m² (Typ.)
Contrast Ratio 550:1 (Typ.) (TM)
View Direction 6 o'clock
Response Time 2/6 (Typ.)(Tr/Td)
Viewing Angle 65/65/45/55 (Typ.)(CR≥10) Left / Right / Up / Down
Operating ModeTN, Normally White, Transmissive
Support Color 16.2M 64% NTSC
Light Source CCFL [2 pcs] , 40K hours , W/O Driver
Weight 1.00Kgs (Typ.)
Designed For Desktop Monitor
Frame Rate 60Hz
Touch Panel Without
Interface Type LVDS (1 ch, 8-bit) , 20 pins Connector
Power Supply 3.3V (Typ.)
Environment Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
