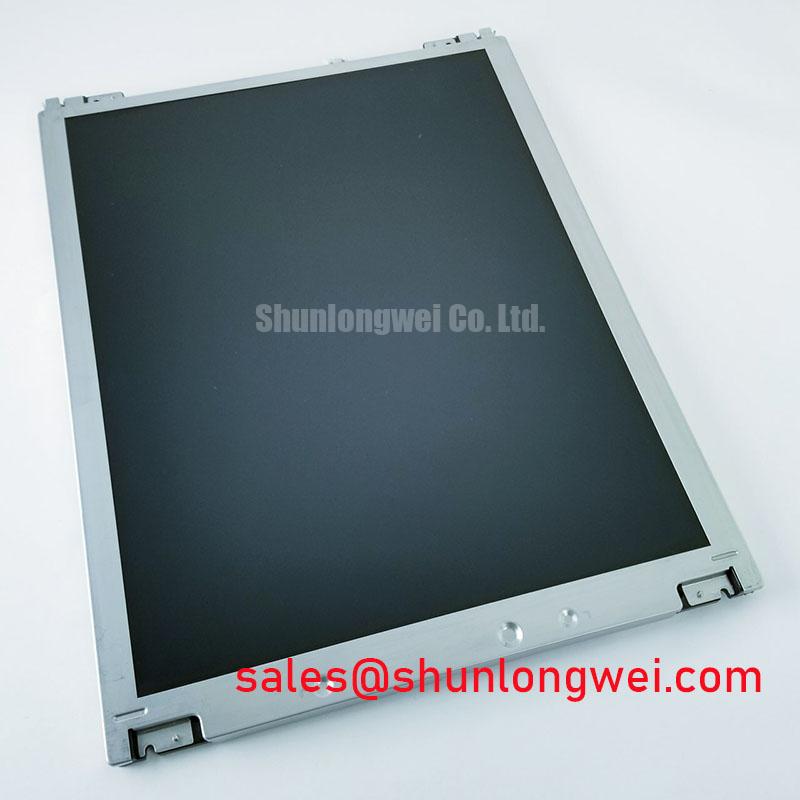

LG Display LM151X05-A3 New Stock

#LG Display, #LM151X05_A3, #LCD_Display, #LCD, LG Display 15.1 inch LCM 1024×768 250 300:1 75/75/55/60 16.2M CCFL TTL; LM151X05-A3
  • Part Number: 

    LM151X05-A3

  • Category: 

    LCD Display

  • Manufacturer: 

    LG Display

  • Packaging: 

    New LCD

  • Data Code: 

    2021+

  • Qty Available:  

    187

Whatsapp / Wechat ID: +8618924651869
Email us: sales@shunlongwei.com
inquiry now
Sell LM151X05-A3, #LG Display #LM151X05-A3 New Stock, LG Display 15.1 inch LCM 1024×768 250 300:1 75/75/55/60 16.2M CCFL TTL; LM151X05-A3, #LCD_Display, #LCD, #LM151X05_A3

Email: sales@shunlongwei.com


Brand LG.Philips LCD
Model LM151X05-A3
Diagonal Size 15.1 inch
Type a-Si TFT-LCD, LCM
Pixel Format 1024(RGB)×768  [XGA]  84PPI
Configuration RGB Vertical Stripe
Active Area 307.2(H)×230.4(V) mm
Outline Dim 352(H)×263.5(V) mm
Bezel Area 311.2(H)×234.4(V) mm
Treatment Antiglare (Haze 13%), Hard coating (3H)
Luminance 250 cd/m² (Typ.)
Contrast Ratio 300:1 (Typ.) (TM)
View Direction 6 o'clock
Response Time 7/18 (Typ.)(Tr/Td)
Viewing Angle 75/75/55/60 (Typ.)(CR≥10) Left / Right / Up / Down
Operating Mode TN, Normally White, Transmissive
Support Color 16.2M   62% NTSC
Light Source CCFL  [2 pcs] , 30K hours , W/O Driver
Weight 1.15/1.21Kgs (Typ./Max.)
Designed For Desktop Monitor
Frame Rate 60Hz
Touch Panel Without
Interface Type TTL (1 ch, 8-bit) , 41 pins Connector
Power Supply 3.3V (Typ.)
Environment Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
LM151X05-A3 inverter, LM151X05-A3 power supply, LM151X05-A3 electronic board, LM151X05-A3 VGA board, LM151X05-A3 touchscreen available.
