Content last revised on December 5, 2024

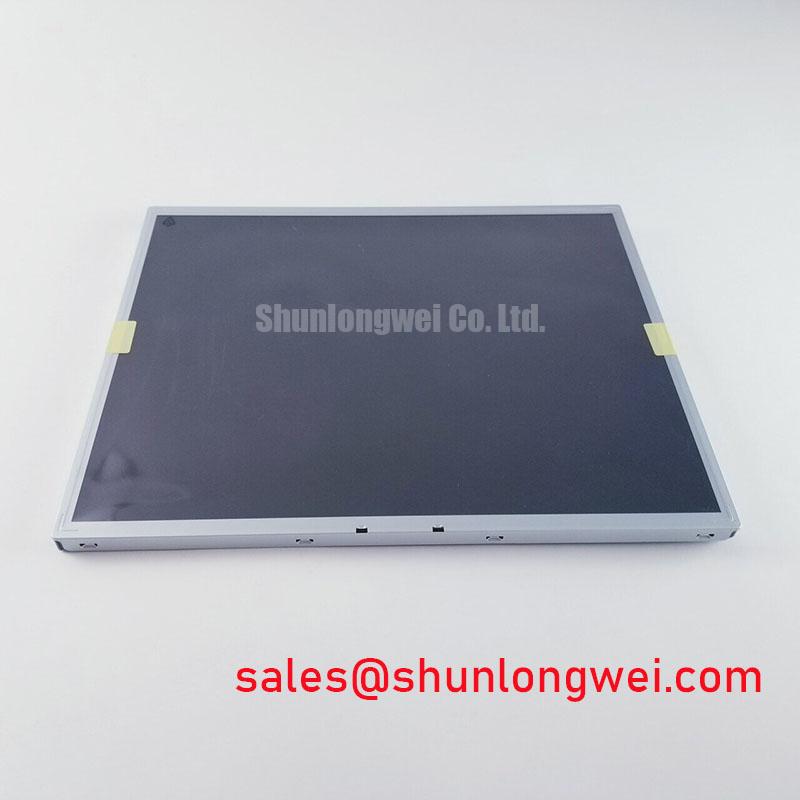

Manufacturer LG Display
Model Name LM170E03-TLJ7
Screen Size 17.0 inch
Screen Type LCM, a-Si TFT-LCD
Pixel Number 1280(RGB)×1024 (SXGA) 96PPI
Arrangement RGB Vertical Stripe
Active Area(mm) 337.92 × 270.336 (H×V)
Outline(mm) 358.5 × 296.5 (H×V×D)
Bezel Area(mm) 341.6 × 274.0 (H×V)
Treatment Antiglare, Hard coating (3H)
Luminance 250 cd/m² (Typ.)
Contrast Ratio 1000 : 1 (Typ.) (TM)
Viewing Angle 85/85/75/85 (Typ.)(CR≥10) Left / Right / Up / Down
Response 1.2/3.8 (Typ.)(Tr/Td) ms
Work Mode TN, Normally White, Transmissive
Color Depth 16.7M 72% NTSC
Backlight 2 pcs CCFL , 50K hours , No Driver
Mass 1.97/2.07Kgs (Typ./Max.)
Used for Desktop Monitor
Refresh Rate 60Hz
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC Circuit
Touchscreen Without
Signal Type LVDS (2 ch, 8-bit) , 30 pins Connector
Voltage Supply 5.0V (Typ.)
Max. Ratings Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
