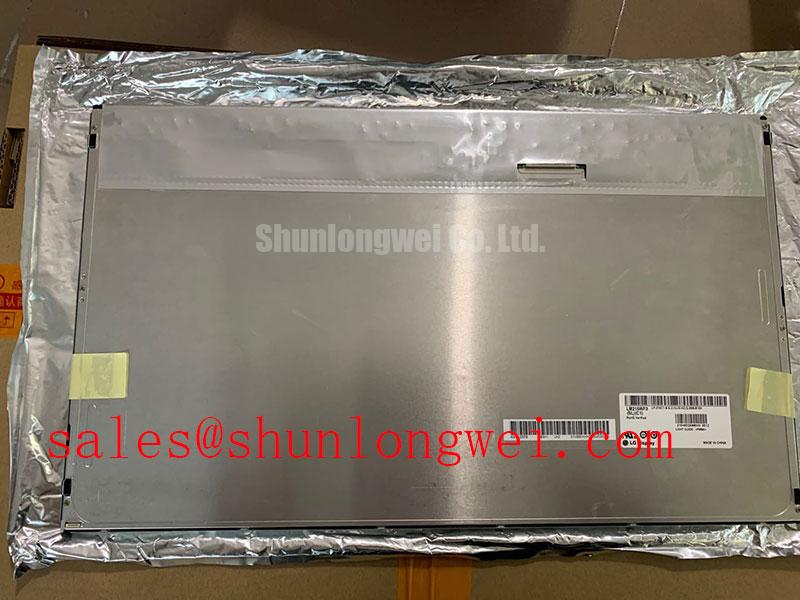

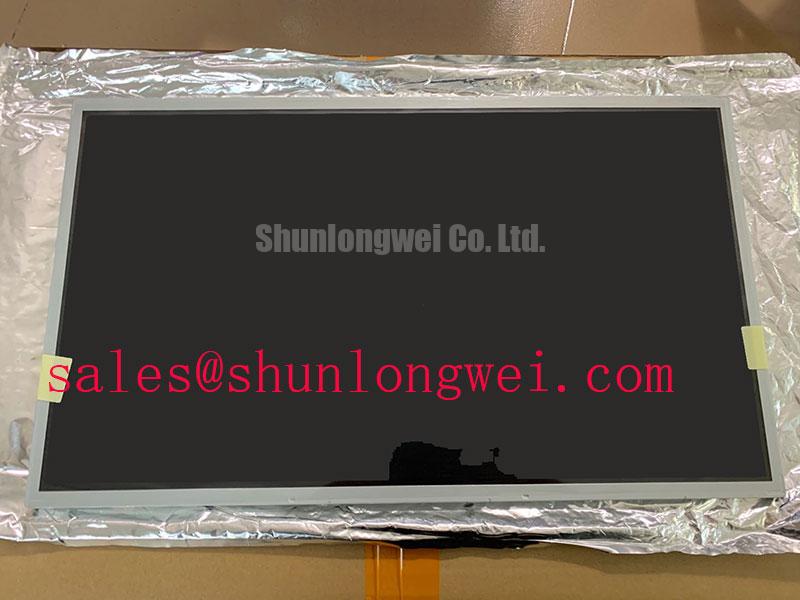

LG LM215WF3-SDDV LCD Display

#LG, #LM215WF3_SDDV, #LCD_Display, #LCD, LM215WF3-SDDV LG 21.5 Inch LCM 1920×1080 415 1000:1 89/89/89/89 16.7M WLED eDP;

· Categories: LCD Display
· Manufacturer: LG
· Price: US$
· Date Code: 2020+
. Available Qty: 355
Like
Tweet
Pin It
4k
Email: sales@shunlongwei.com
Whatsapp: 0086 189 2465 1869
Tags:
-- OR --

Contact us for Price!

LM215WF3-SDDV Specification

Sell LM215WF3-SDDV, #LG #LM215WF3-SDDV Stock, LM215WF3-SDDV LG 21.5 Inch LCM 1920×1080 415 1000:1 89/89/89/89 16.7M WLED eDP;, #LCD_Display, #LCD, #LM215WF3_SDDV
Email: sales@shunlongwei.com
URL: https://www.slw-ele.com/lm215wf3-sddv.html

Panel Brand LG Display Panel Model LM215WF3-SDDV   Panel Size 21.5" Panel Type a-Si TFT-LCD, LCM Resolution 1920(RGB)×1080, FHD, 102PPI Pixel Format RGB Vertical Stripe Display Area 475.2(W)×267.3(H) mm Bezel Opening 477.6(W)×269.7(H) mm Outline Size 528.3(W)×318.765(H) ×11.05(D) mm Surface Antireflection Brightness 415 cd/m² (Typ.) Contrast Ratio 1000:1 (Typ.) (TM)     Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down Display Mode IPS, Normally Black, Transmissive Best View on Symmetry Response Time 6.5/7.5 (Typ.)(Tr/Td) Display Colors 16.7M   100% sRGB Lamp Type 6 strings WLED , 30K hours , Without Driver Frequency 60Hz  120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit Touch Screen Without Panel Weight 2.05/2.15Kgs (Typ./Max.)ApplicationDesktop Monitor Signal Interface eDP (2 Lanes) , 32 pins Connector Input Voltage 12.0V (Typ.)  Environment Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C LM215WF3-SDDV inverter, LM215WF3-SDDV power supply, LM215WF3-SDDV electronic board, LM215WF3-SDDV VGA board, LM215WF3-SDDV touchscreen available.
