Managing Localized Thermal Gradients and Optical Uniformity

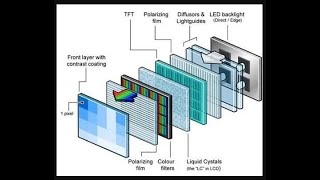

For an incoming replacement, operate the display through a full-screen white, black, red, green, and blue test sequence after the interface and backlight requirements have been verified. Inspect the image from several viewing positions while recording any visible luminance nonuniformity, persistent color cast, edge shading, or localized bright and dark regions. A camera can help document changes, but visual comparison against a known-good panel remains important because camera exposure and white balance can conceal or exaggerate optical differences.
The factory information supplied for LM64C12P does not specify an LED lifetime curve, a half-brightness lifetime, an optical film construction, or a guaranteed color-shift limit. It is therefore not appropriate to assign a specific L70 or B50 value to this model. A display installed in a CNC operator panel or robot teach pendant should be assessed as a complete assembly, including the enclosure, backlight driver, ventilation path, and nearby heat sources.
As a design consideration, a chassis may use an external heat-spreading rail along the display edge when temperature mapping identifies a persistent hot spot. The rail should not press against the active display area or distort the mounting frame. Thermal evaluation is best performed with the panel installed in its real bezel, because an open-bench result may not represent the air movement or heat accumulation inside the finished control enclosure.
Signal quality also deserves attention during the same test. If the replacement uses a differential display link, the integrator should verify transmitter clock stability, data hold time, supply sequencing, and signal quality across the equipment temperature range using the original interface documentation. If the source system uses a parallel timing interface, the timing controller and gamma reference behavior must be checked separately. Grey-scale errors, intermittent bands, or unstable color transitions may indicate a timing, grounding, power, or signal-integrity issue rather than an optical defect in the panel.
The related Industrial Display and HMI Solutions resource can be used as a broader engineering reference when the panel is being evaluated for a sealed industrial enclosure or a long operating cycle.
Industrial Bezel Mechanical Envelope and Mounting Assessment
Before fitting LM64C12P into a machine bezel, compare the replacement module with the removed unit using the original mechanical drawing. Confirm the outer envelope, active display opening, connector clearance, mounting-hole position, cable exit direction, and any locating features. The supplied factory context does not provide dimensional tolerances or mounting-hole specifications, so the original equipment drawing must control the mechanical assessment.
Install the panel without forcing the corners into alignment. A bezel that contacts the glass, frame, or rear assembly can create mechanical stress that appears during tightening or after thermal cycling. Use a cross-pattern sequence when securing multiple fasteners, and select torque only from the panel manufacturer’s mechanical documentation or the equipment service specification. A generic fastener torque value must not be presented as an LM64C12P factory limit.
After installation, inspect a full-white and mid-grey image while the fasteners are progressively secured. Look for changes in edge brightness, corner shading, line-shaped mura, or a region that changes when the bezel is lightly supported. These observations do not establish a single fault cause, but they can show that the mechanical envelope, bracket alignment, or cable routing needs further review.
Bench Tip: Disconnect power before inserting or removing the display cable, and keep the cable fully aligned and evenly seated before locking its connector.
For an alternative evaluation, engineers may compare the mechanical and electrical documentation of LM64P10, but compatibility should be established from connector position, active area, optical requirements, timing format, and enclosure drawings rather than from screen size alone.
Backlight reliability is also system-dependent. The available LM64C12P information does not publish a backlight MTBF curve or a guaranteed brightness-retention period. Constant-current operation, driver thermal management, enclosure temperature, brightness setting, switching behavior, and contamination can all influence the measured result. A repair laboratory should record initial luminance under controlled conditions and repeat the measurement according to the equipment owner’s maintenance plan instead of assigning an unsupported lifetime number.
Display Interface Timing, Pixel Clock, and Skew Verification
Do not assume a 20-pin, 30-pin, LVDS, TTL, JEIDA, or VESA interface from the LM64C12P model designation. The supplied official hardware context confirms the display module category but does not publish a connector pinout or logic interface specification. The system integrator should verify the required supply voltage, connector assignment, data mapping, pixel timing, and backlight control method from the original Sharp panel documentation.
During a replacement test, first identify the panel power, logic ground, timing signals, and backlight connections from approved documentation. Then confirm that the host controller’s power-on sequence matches the panel requirement. A display that lights without a stable image may still have an incorrect data mapping, missing enable signal, unsuitable pixel clock, or an unstable reset sequence. These conditions should be measured at the connector and compared with a known-good signal path.
For a differential link, routing should preserve pair symmetry, provide a controlled return path, and limit unnecessary connector transitions. A 100 ohm differential target is a common design consideration for LVDS routing, but it is not an LM64C12P factory specification unless the Sharp interface document states it. The final board designer should verify the actual interface standard, impedance requirement, common-mode range, and allowable skew with the panel and transmitter documentation.
When a CNC operator panel shows split images, incorrect colour order, unstable grey levels, or intermittent vertical bands, inspect the complete signal chain. Check connector seating, cable shielding, ground reference, transmitter configuration, clock quality, and the timing controller’s gamma settings. The T-CON or host controller may require the original grey-scale voltage and gamma calibration data; these values should not be recreated from a visual estimate or borrowed from an unrelated Sharp module.
In an industrial cabinet, servo drives and switching devices can introduce radiated or conducted interference. The appropriate engineering response is to control cable routing, bonding, shielding termination, and return-current paths, then verify the assembled equipment during switching operation. The individual LCD module should not be described as independently certified for whole-system EMC compliance.
Where the display supply and backlight require a companion subsystem, engineers can review LMS700KF01-001 as a related display solution reference. It should not be treated as an automatic replacement or assumed companion for LM64C12P without confirming the electrical and mechanical interfaces.
Optical Luminance Assessment and Backlight Retrofit Decisions
Identify the original LM64C12P backlight architecture before planning any modernization work. The supplied factory data does not confirm whether the original assembly uses CCFL, LED, a particular inverter, or a dedicated brightness-control method. A CCFL ignition voltage, an LED driver current, PWM dimming ratio, acoustic behavior, and expected operating life must therefore be verified from the original panel and equipment documentation.
For a replacement inspection, measure the backlight behavior at startup, during warm-up, and at the normal operating brightness used by the machine. Watch for delayed ignition, visible flicker, edge-to-edge luminance variation, colour temperature change, or noise from the driver assembly. These observations should be correlated with supply stability and control signals. A backlight symptom alone does not identify whether the panel, driver, cable, inverter, or host controller requires service.
If a CCFL-to-LED retrofit is considered, treat it as a system modification rather than a direct assumption about LM64C12P. The retrofit designer should verify optical coupling, physical clearance, driver compatibility, dimming behavior, thermal distribution, electromagnetic emissions, and operator visibility. The new driver must be evaluated with the machine’s control electronics, especially when the original system expects a lamp fault signal or a particular enable sequence.
For image-quality acceptance, use the same test pattern, warm-up condition, viewing position, and luminance instrument for the replacement and the removed panel. Record the results with the serial information of the equipment assembly, not with unsupported lifetime or failure-rate claims. If the panel is being deployed in an industrial automation CNC operator panel or robot teach pendant, confirm that the final bezel, touch interface if present, cable bend path, and enclosure temperature remain within the applicable documentation limits.
Procurement teams should request the exact LM64C12P documentation needed for their equipment revision, including the interface drawing, mechanical outline, electrical limits, backlight data, and approved operating conditions. This prevents a visually similar display from being evaluated only by connector appearance or image size and gives the repair engineer a controlled basis for acceptance testing.
