Brand Sharp

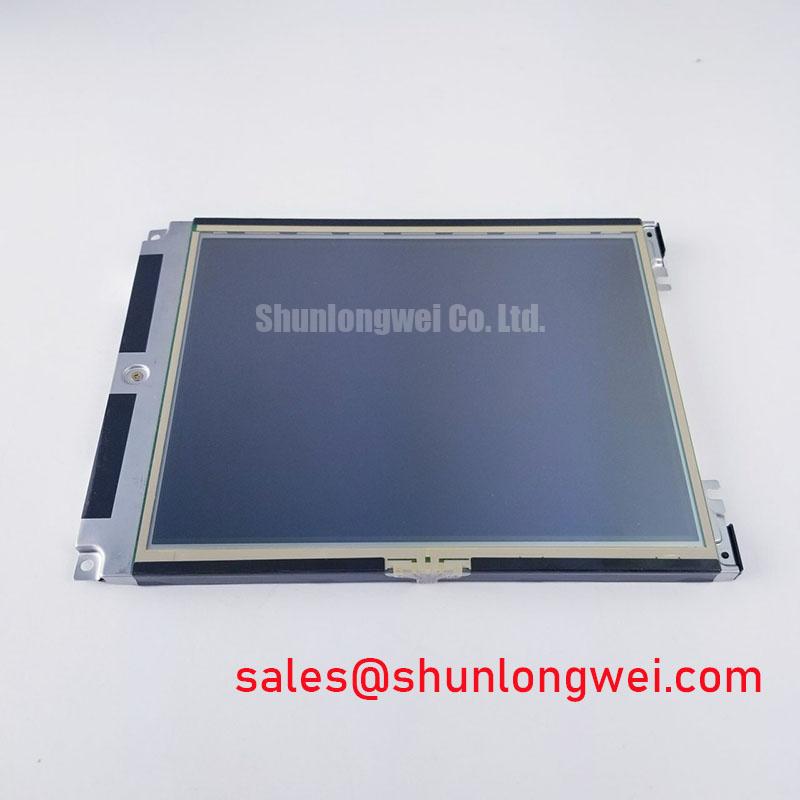

Model LM8V33
Diagonal Size 7.7 inch
Type CSTN-LCD , LCM
Pixel Format 640(RGB)×480 [VGA] 103PPI
Configuration RGB Vertical Stripe
Active Area 157.42(H)×118.06(V) mm
Outline Dim. 195.8(H)×142.5(V) mm
Bezel Area161.4(H)×122.1(V) mm
Luminance 70 cd/m² (Typ.)
Contrast Ratio 35:1 (Typ.) (TM)
Response Time 270/80 (Typ.)(Tr/Td)
Operating Mode STN, Normally Black, Transmissive
Support Color Color
Light Source CCFL [1 pcs] , W/O Driver
Weight 220g (Typ.)
Designed For Industrial
Touch Panel Without
Interface Type Parallel Data (8-bit) , 29 pins Connector
Power Supply 3.3V (Typ.)
Environment Operating Temperature: 0 ~ 40 °C ; Storage Temperature: -25 ~ 60 °C
