Content last revised on January 8, 2025

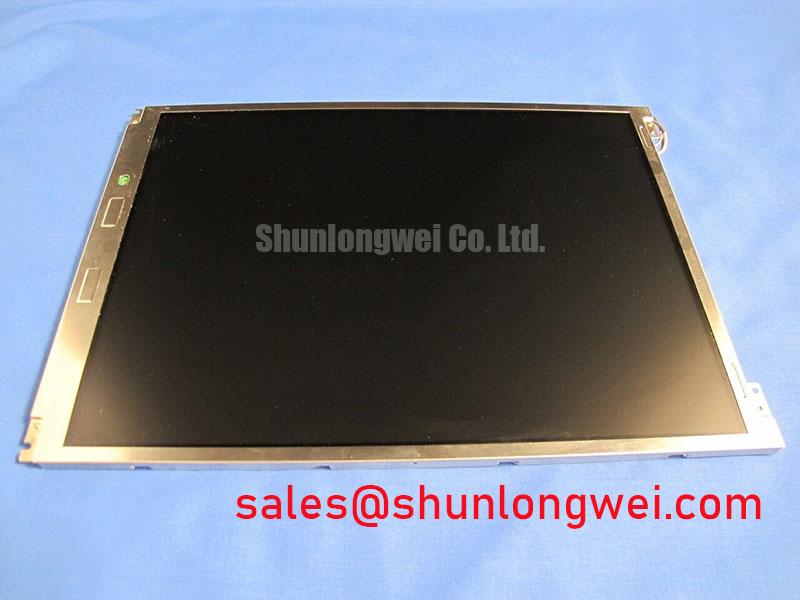

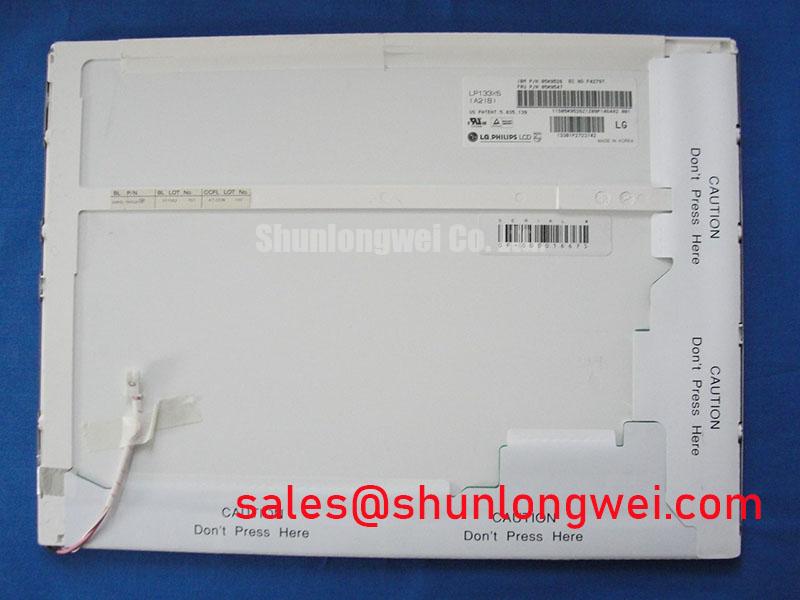

Panel Brand LG LCD Inc.
Panel Model LP133X5 Compatible Model 1 Compatible
Panel Size 13.3 inch
Panel Type a-Si TFT-LCD, LCM
Resolution 1024(RGB)×768, XGA, 96PPI
Pixel Format RGB Vertical Stripe
Display Area 270.336(W)×202.752(H) mm
Bezel Opening 274.4(W)×206.8(H) mm
Outline Size 292(W)×215(H) ×6.8(D) mm
Surface Antiglare, Hard coating (3H)
Brightness 150 cd/m² (Typ.)
Contrast Ratio 200:1 (Typ.) (TM)
Viewing Angle 40/40/10/30 (Min.)(CR≥10) Left / Right / Up / Down
Display Mode TN, Normally White, Transmissive
Best View on 6 o'clock
Response Time 30/30 (Typ.)(Tr/Td)
Display Colors 262K 44% NTSC
Lamp Type 1 pcs CCFL , Without Driver
Frequency 60Hz
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC Circuit
Touch Screen Without
Shape Style Wedge (PCBA Bent, T≥5.2mm)ApplicationLaptop
Signal Interface LVDS (1 ch, 6-bit) , 20 pins Connector
Input Voltage 5.0V (Typ.)
Environment Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
