Manufacturer LG.Philips LCD

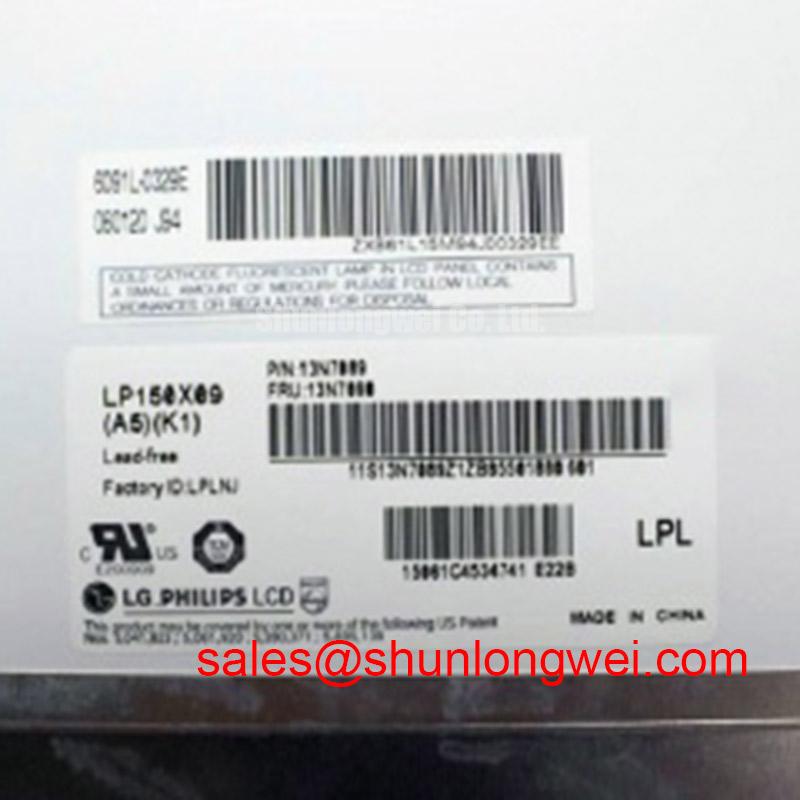

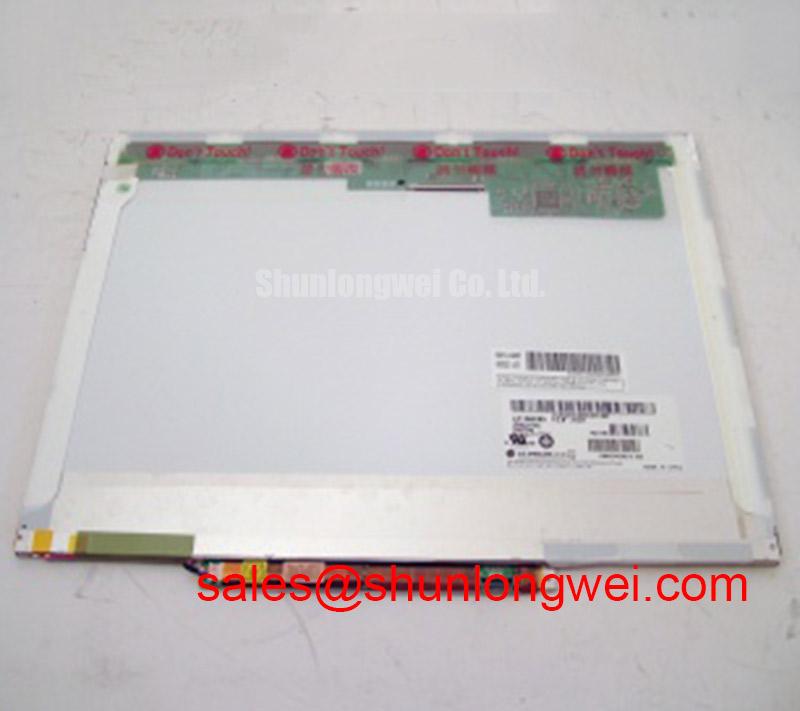

Model Name LP150X09-A5K1
Screen Size 15.0 inch
Screen Type LCM , a-Si TFT-LCD
Pixel Number 1024(RGB)×768 (XGA) 85PPI
Arrangement RGB Vertical Stripe
Active Area(mm) 304.128 × 228.096 (H×V)
Outline(mm) 317.3 × 241.5 × 6 (H×V×D)
Bezel Area(mm) 307.5 × 231.4 (H×V)
Treatment Antiglare, Hard coating (2H), Antireflection
Luminance 200 cd/m² (Typ.)
Contrast Ratio 200 : 1 (Typ.) (TM)
Viewing Angle 45/45/15/35 (Typ.)(CR≥10) Left / Right / Up / Down
Response 10/20 (Typ.)(Tr/Td) ms
Good View at 6 o'clock
Work Mode TN, Normally White, Transmissive
Color Depth 262K 45% NTSC
Backlight 1 pcs CCFL , 10K hours , No Driver
Outline Shape Wedge (PCBA Bent, T≥5.2mm)
Used for Laptop
Refresh Rate 60Hz
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC Circuit
Touchscreen Without
Signal Type LVDS (1 ch, 6-bit) , 30 pins Connector
Voltage Supply 3.3V (Typ.)
Max. Ratings Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
