Panel Brand : Sharp

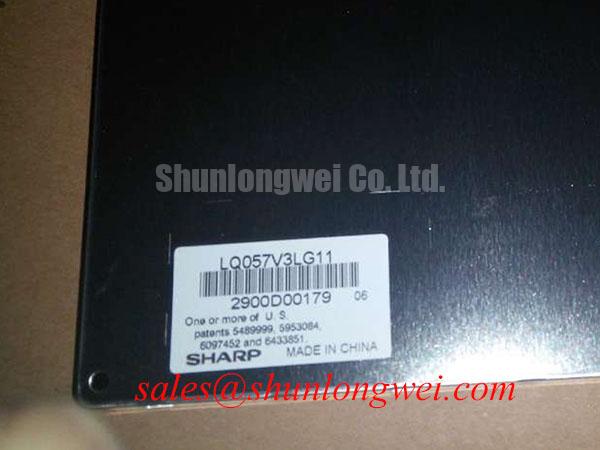

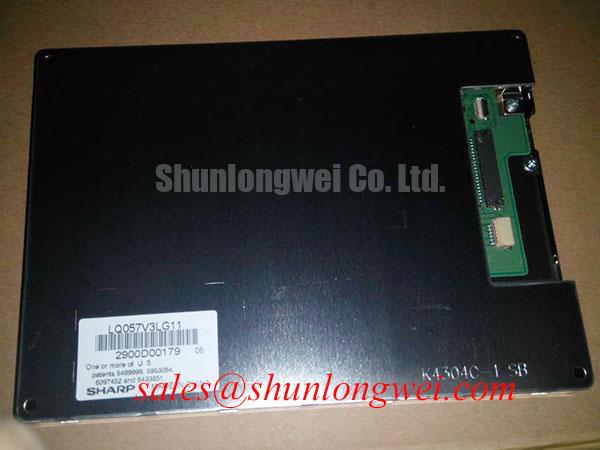

Panel Model :LQ057V3LG11
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 5.7 inch
Resolution : 640(RGB)×480 , VGA
Display Mode : TN, Normally White, Transmissive
Active Area : 115.2×86.4 mm
Outline : 144×104.6×12.3 mm
Surface : Antiglare, Hard coating (2H)
Brightness : 350 cd/m² (Typ.)
Contrast Ratio : 500:1 (Typ.)
Display Colors : 262K (6-bit)
Response Time : 30 (Typ.)(Tr+Td)
Viewing Angle : 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : WLED
Signal Interface : LVDS (1 ch, 6-bit)
Input Voltage : 3.3V (Typ.)
