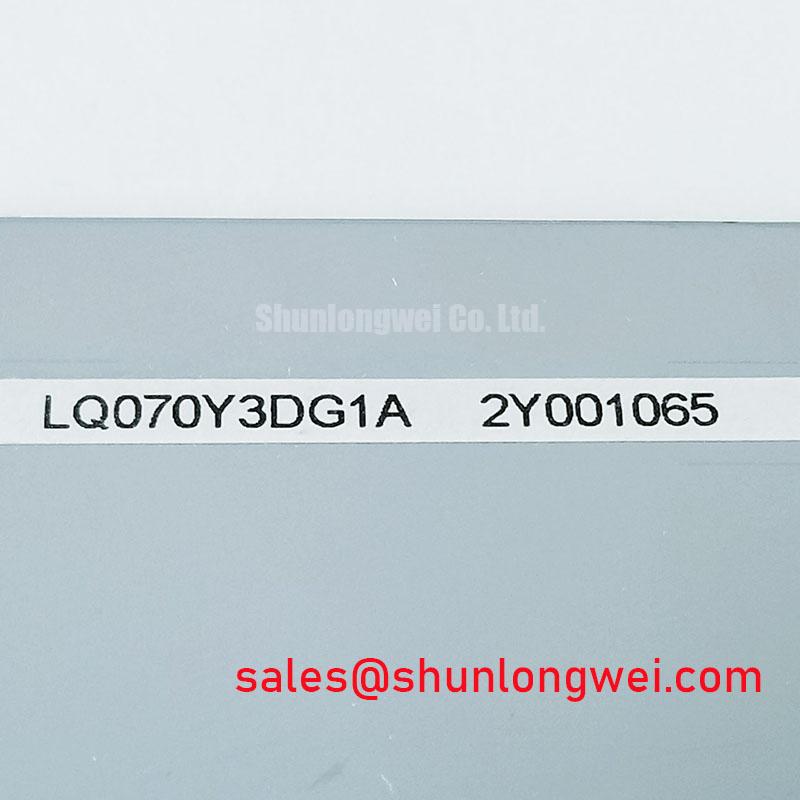

Sharp LQ070Y3DG1A | Robust 7-Inch WVGA Display for Industrial Applications
The Sharp LQ070Y3DG1A is a 7.0-inch amorphous silicon TFT-LCD module engineered specifically for applications where operational reliability and visual consistency are non-negotiable. This display delivers a crisp 800x480 WVGA resolution, providing a clear and effective visual interface for a wide array of industrial, medical, and instrumentation systems. Designed by Sharp, a legacy name in display technology, the LQ070Y3DG1A is built to perform in environments where consumer-grade displays would falter, making it a trusted choice for long-lifecycle equipment.
Engineering for Reliability and Clarity
The design philosophy behind the LQ070Y3DG1A prioritizes long-term stability and performance over superfluous features. This focus is evident in several key engineering decisions that directly benefit system integrators and end-users.
- Exceptional Thermal Resilience: One of the most critical differentiators of this module is its expansive operating temperature range, typically from -30°C to 80°C. This industrial-grade tolerance ensures the display remains functional and the liquid crystal response time stays consistent in unconditioned environments, from cold-start factory floors to enclosed, heat-generating control panels. This resilience eliminates the need for complex and costly external heating or cooling systems.
- Mature a-Si TFT Technology: The display is built upon a proven a-Si TFT (Amorphous Silicon) foundation. While newer technologies exist, a-Si is the cornerstone of industrial displays due to its unmatched reliability, manufacturing consistency, and cost-effectiveness. This choice ensures stable supply chains and predictable performance over the product's entire lifecycle, a crucial factor for industrial and medical certifications.
- Direct Parallel RGB Interface: The LQ070Y3DG1A utilizes a parallel RGB (6/8-bit) data interface. For embedded system engineers, this offers a significant advantage in simplicity and control. It allows for direct integration with a wide variety of microcontrollers and system-on-chips (SoCs) without the need for additional serializer/deserializer hardware, streamlining board design and potentially reducing EMI.
Proven Performance in Key Industrial Sectors
The specific feature set of the Sharp LQ070Y3DG1A makes it an ideal solution for several demanding applications. Its performance is not just about the specifications on a datasheet; it is about how those specifications solve real-world engineering challenges. For a deeper understanding of the underlying technology, explore our ultimate guide to TFT-LCDs.
- Human-Machine Interfaces (HMIs): The 7-inch diagonal and WVGA resolution create the perfect canvas for industrial control panels, displaying process data, virtual buttons, and system alerts with excellent clarity.
- Medical Diagnostic Equipment: In devices like patient monitors and portable analysis tools, the display's consistent colorimetry and wide viewing angles ensure that critical information is accurately relayed to healthcare professionals from various perspectives.
- Test and Measurement Instruments: For benchtop oscilloscopes, spectrum analyzers, or portable field testers, the LQ070Y3DG1A provides a durable and easy-to-read interface that can withstand the daily rigors of a lab or field environment.
- In-Vehicle Information Systems: Its ability to operate reliably across a wide temperature spectrum makes it suitable for integration into specialty vehicle cabins, such as those in forklifts, agricultural machinery, and logistics equipment.
Key Technical Specifications
The following table provides a quick-reference overview of the Sharp LQ070Y3DG1A's core parameters. For complete design and integration details, it is essential to consult the official datasheet.
| Parameter | Value |
|---|---|
| Screen Size | 7.0 inches |
| Resolution | 800(RGB) × 480 (WVGA) |
| Display Technology | a-Si TFT-LCD, Normally White, Transmissive |
| Luminance | 400 cd/m² (Typical) |
| Contrast Ratio | 400:1 (Typical) |
| Interface Type | Parallel RGB (1 ch, 6/8-bit) |
| Viewing Angle | 70/70/65/65 (Typ.)(CR≥10) (L/R/U/D) |
| Operating Temperature | -30°C to 80°C |
| Storage Temperature | -30°C to 80°C |
| Backlight | WLED, 50,000 hours (Typical) |
Frequently Asked Engineering Questions
What is the primary advantage of the Parallel RGB interface on the LQ070Y3DG1A compared to an LVDS interface?The primary advantage is design simplicity for many embedded systems. Parallel RGB interfaces directly with the timing controller (T-CON) logic on many common microcontrollers and processors, eliminating the need for LVDS transmitter/receiver pairs. This can reduce BOM cost, simplify PCB layout, and minimize potential high-frequency signal integrity challenges, making it a robust choice for cost-sensitive or space-constrained industrial designs.
How does this display compare to a similar model like the G070ACE-L01?While both are 7-inch industrial displays, the selection depends on specific application needs. The Sharp LQ070Y3DG1A is a workhorse with a parallel interface ideal for direct MCU connection and extreme temperatures. The G070ACE-L01, on the other hand, typically features an LVDS interface and often higher brightness, making it better suited for systems with existing LVDS support or those requiring enhanced visibility in bright ambient light. Your choice depends on the required interface and target operational environment.
Is the WLED backlight user-replaceable?The WLED backlight system in the LQ070Y3DG1A is designed as an integral part of the display module and is not intended for field replacement. However, its typical lifetime rating of 50,000 hours to half-brightness ensures years of continuous, maintenance-free operation, aligning with the long lifecycle requirements of the industrial and medical equipment it is designed for. For any questions regarding your specific application or to explore our wide range of industrial LCD displays, please contact our technical team for expert guidance.
