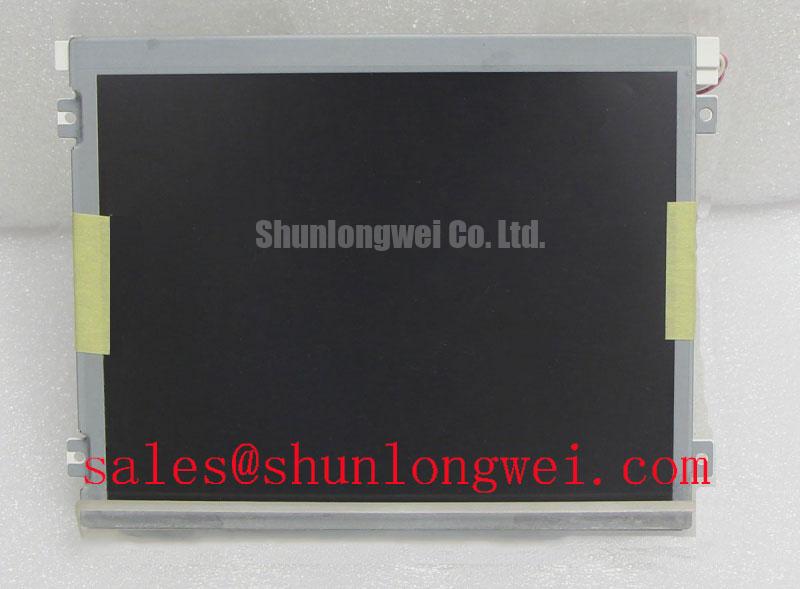

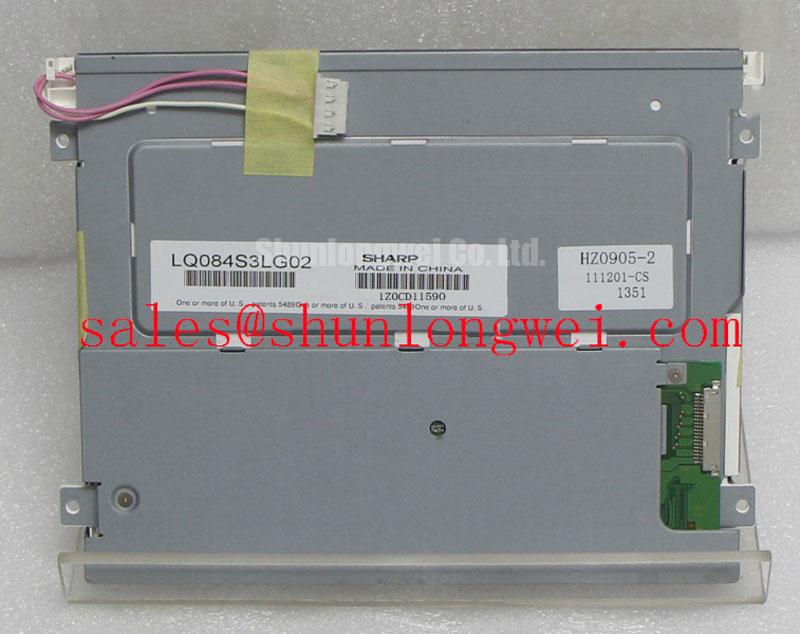

SHARP LQ084S3LG02 LCD Display

Brand Sharp

Model LQ084S3LG02

Diagonal Size8.4 inch

Type a-Si TFT-LCD, LCM

Pixel Format 800(RGB)×600  [SVGA]  119PPI

Configuration RGB Vertical Stripe

Active Area 170.4(H)×127.8(V) mm

Outline Dim 199.5(H)×149.5(V) ×12(D) mm

Bezel Area 173.4(H)×130.8(V) mm

Treatment Antiglare, Hard coating (2H)

Luminance 350 cd/m² (Typ.)

Contrast Ratio 450:1 (Typ.) (TM)

View Direction 12 o'clock

Response Time 35 (Typ.)(Tr+Td)

Viewing Angle 65/65/60/55 (Typ.)(CR≥10) Left / Right / Up / Down

Operating Mode TN, Normally White, Transmissive

Support Color 262K/16.2M

Light Source CCFL  [2 pcs]

Weight 450g (Max.)

Designed For Industrial

Frame Rate 60HzTouch

Panel Without

Interface Type LVDS (1 ch, 6/8-bit) , 20 pins Connector

Power Supply 3.3V (Typ.)

Environment Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²)
