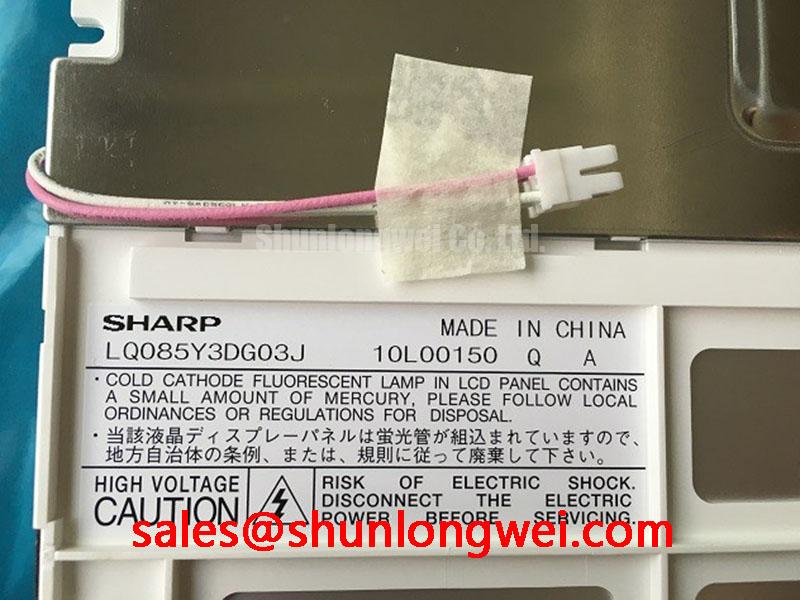

Sharp LQ085Y3DG03: 8.5" Industrial TFT LCD for Extreme Temperature Applications
A Technical Introduction to the LQ085Y3DG03 Display
Engineered for unwavering performance in extreme thermal environments, the Sharp LQ085Y3DG03 ensures critical data visibility where standard displays fail. This 8.5-inch TFT-LCD module delivers a specification profile built for resilience and clarity, featuring a resolution of 800x480 WVGA, a high brightness of 500 cd/m², and a class-leading operating temperature range of -30°C to +85°C. The key engineering benefits are exceptional thermal resilience and clear readability in high ambient light conditions. This panel directly addresses the challenge of deploying reliable human-machine interfaces (HMIs) in harsh outdoor or unconditioned industrial settings without costly external thermal management. For industrial HMIs and automotive systems demanding proven reliability across a vast -30°C to +85°C range, this display is the definitive choice.
Key Parameter Overview
Decoding the Specs for Environmental Resilience
The technical specifications of the Sharp LQ085Y3DG03 are purpose-built for industrial and automotive applications where environmental conditions are a primary design constraint. The parameters below highlight its capacity for reliable, long-term operation.
| Feature | Specification | Engineering Value |
|---|---|---|
| Screen Size | 8.5 inch | Provides a substantial viewing area for complex data without excessive panel footprint. |
| Resolution | 800 (RGB) × 480 (WVGA) | Delivers sharp, clear graphics and text suitable for detailed control interfaces. |
| Operating Temperature | -30°C to +85°C | Eliminates the need for external heating/cooling systems in most environments, reducing system cost and complexity. |
| Storage Temperature | -40°C to +90°C | Ensures component integrity during transport and storage in non-climate-controlled conditions. |
| Luminance | 500 cd/m² (Typ.) | Ensures excellent screen readability in high ambient light or indirect sunlight. |
| Viewing Angle (L/R/U/D) | 85/85/85/85 (Min.) | Provides consistent image quality from nearly any viewing direction, critical for multi-personnel operation. |
| Contrast Ratio | 600:1 (Typ.) | Delivers deep blacks and vibrant colors for superior image differentiation. |
| Interface Type | Analog RGB (18-bit) | Offers straightforward integration with a wide range of industrial motherboards and legacy controllers. |
| Backlight System | 1 CCFL with Inverter | A proven, robust lighting technology known for its high brightness and stability in industrial settings. |
| Surface Treatment | Anti-Glare | Minimizes distracting reflections, reducing operator eye strain and improving focus on critical data. |
Application Scenarios & Value
System-Level Benefits in Harsh Environment HMIs
The Sharp LQ085Y3DG03 is engineered for applications where consumer-grade displays would quickly fail. Its value is most evident in environments characterized by significant temperature fluctuations and high ambient light. What is the primary benefit of its wide temperature range? It guarantees operational readiness from a cold start in freezing conditions to prolonged use in a sun-baked vehicle cabin.
A prime engineering scenario is its integration into a vehicle-mount computer for logistics or a control panel on heavy construction machinery. In these settings, the internal cabin temperature can plummet below freezing overnight and soar to over 70°C when parked in direct sun. The LQ085Y3DG03's -30°C to +85°C operating range directly meets this challenge, ensuring the display starts up and functions without fault. This thermal robustness eliminates the need for auxiliary heaters or cooling fans, which would otherwise add cost, complexity, and potential points of failure to the system design. Combined with its 500-nit brightness and anti-glare coating, operators are guaranteed a readable screen, enhancing productivity and operational safety. This focus on reliability makes it a superior choice when considering the total cost of ownership over the initial price.
While this 8.5-inch model provides an excellent balance of size and performance, systems requiring a more compact HMI solution might consider the related LQ065Y5DG02, a 6.5-inch display from Sharp that offers similar industrial-grade characteristics.
Frequently Asked Questions (FAQ)
Engineering Inquiries for the LQ085Y3DG03
How does the -30°C to +85°C operating range impact system design for outdoor equipment?
This extremely wide temperature range provides significant design freedom. It allows the final product to be deployed in a vast majority of global climates without requiring complex and costly thermal management hardware like resistive heaters or active cooling fans. This simplifies the mechanical design, reduces power consumption, and enhances overall system reliability by minimizing failure points.
What is the significance of the 85/85/85/85 viewing angle specification?
This specification, typical of Sharp's Advanced Super View (ASV) technology, means the display exhibits minimal color shift or contrast degradation even when viewed from extreme off-axis angles (up to 85 degrees in any direction). In an industrial or automotive setting, this is critical. It allows multiple operators to view the screen simultaneously from different positions, or for a single operator to clearly see the display while not directly in front of it, improving situational awareness and flexibility.
Is the analog RGB interface a limitation for modern systems?
While many new designs utilize digital interfaces like LVDS, the analog RGB interface provides immense value for system upgrades, retrofits, and cost-sensitive industrial applications. It ensures compatibility with a vast installed base of single-board computers and controllers that may not have digital outputs, enabling a lower-cost, faster integration path for proven hardware platforms.
What considerations are needed for the CCFL backlight system?
The LQ085Y3DG03 utilizes a single Cold Cathode Fluorescent Lamp (CCFL) for its backlight, which is a key contributor to its high brightness. The primary design consideration is that CCFLs require a high-voltage AC inverter to operate. The display is specified with an accompanying inverter, and system designers must allocate space and power for this component. CCFL technology is well-understood and has a long history of reliability in industrial applications.
Technical & Design Deep Dive
Engineering for Thermal Extremes and Proven Reliability
The defining characteristic of the LQ085Y3DG03 is its ability to operate across a 115°C thermal window. This is not merely a number on a datasheet; it's a design philosophy that directly impacts system architecture. Think of this display's temperature range like the difference between an all-season truck tire and a summer performance tire. While the latter excels in ideal conditions, the LQ085Y3DG03 is engineered to maintain grip—or in this case, visual clarity and operational integrity—from arctic cold to desert heat. This resilience is achieved through careful material selection for the liquid crystal, polarizers, and internal electronics, ensuring consistent performance at both temperature extremes.
Another key design aspect is the use of a CCFL backlight. While the industry has largely shifted to LEDs, the selection of CCFL for this type of industrial module is deliberate. CCFLs offer a proven track record of long-term stability and high-output brightness, which were critical for meeting the 500 cd/m² specification at the time of its design. For engineers designing long-lifecycle products in the industrial, agricultural, or avionics sectors, this reliance on a mature, robust technology can be a significant advantage, as its performance characteristics and failure modes are well-documented within the field of TFT-LCD engineering.
Strategic Component Selection
Choosing a component like the Sharp LQ085Y3DG03 is a strategic decision that prioritizes long-term field reliability and operational uptime over chasing the latest interface technology. For OEMs building equipment intended to last for a decade or more in challenging service environments, the proven resilience of this display provides a stable platform that minimizes the risk of costly field failures and supports a lower total cost of ownership. Its robust specifications ensure that the human-machine interface remains a reliable asset, not a potential liability, throughout the product's entire lifecycle.
