Content last revised on October 30, 2023
Panel Brand Sharp

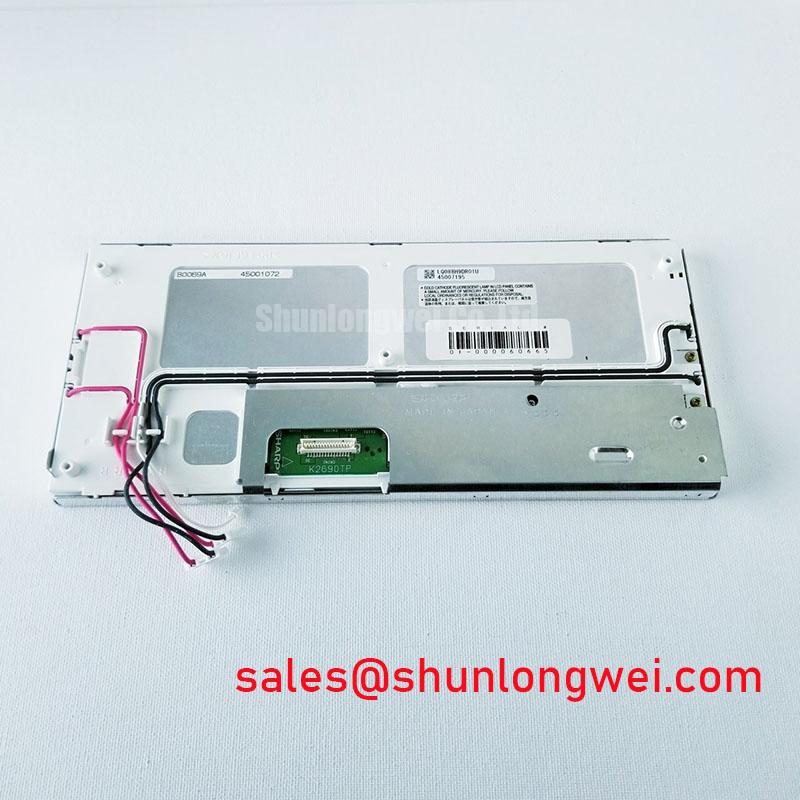

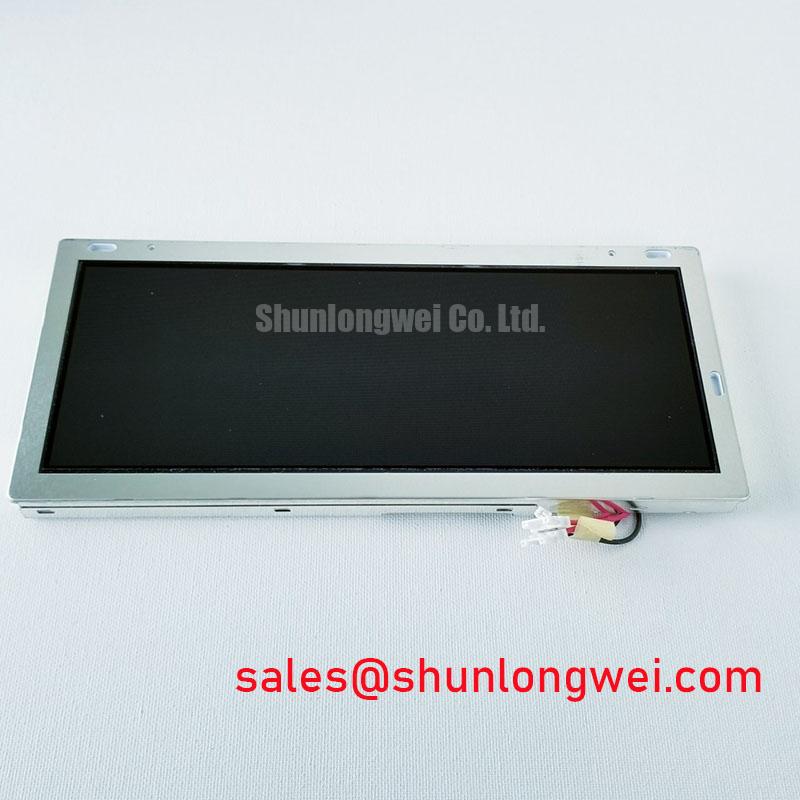

Panel Model LQ088H9DR01U
Panel Size 8.8 inch
Panel Type a-Si TFT-LCD, LCM
Resolution 640(RGB)×240, HVGA, 77PPI
Pixel Format RGB Vertical Stripe
display Area 209.28(W)×78.48(H) mm
Outline Size 231.6(W)×103.6(H) mm
Brightness 220 cd/m² (Typ.)
display Mode TN, Normally White, Transflective
Display Colors 262K
Lamp Type 2 pcs CCFL
Panel Weight 370g (Max.)
Application Automotive Display
Signal Interface Parallel RGB (1 ch, 6-bit) , 31 pins Connector
Environment Operating Temp: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C
