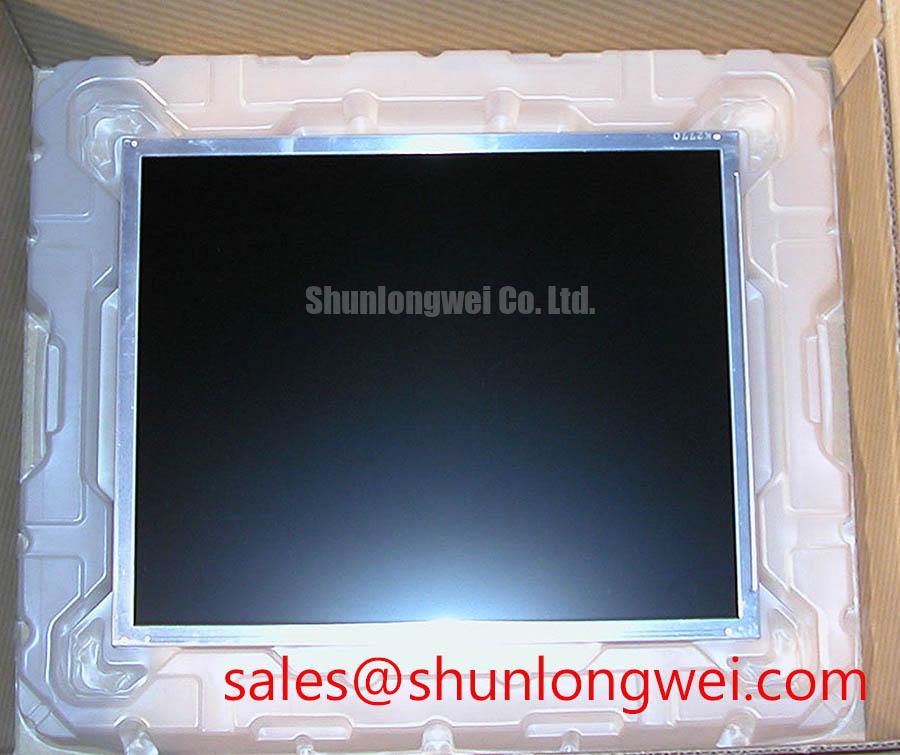

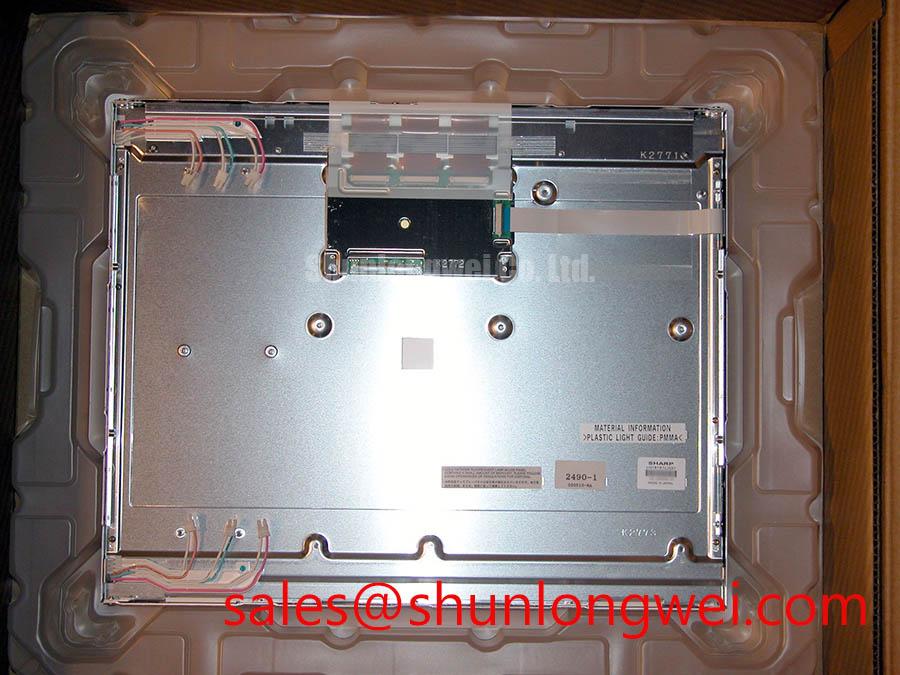

Sharp LQ181E1LE38 | Mission-Critical 18.1” SXGA Industrial Display
The Sharp LQ181E1LE38 is an 18.1-inch a-Si TFT-LCD panel engineered for applications where clarity, size, and long-term stability are paramount. While modern displays trend towards widescreen formats, the LQ181E1LE38 retains its critical role in legacy system upgrades and specialized equipment due to its classic 5:4 aspect ratio and robust SXGA resolution. It is an engineering-focused solution for maintaining the operational integrity of high-value industrial and medical assets.
- Model: LQ181E1LE38
- Screen Size: 18.1" (46 cm)
- Resolution: 1280x1024 (SXGA)
- Technology: Amorphous Silicon (a-Si) TFT-LCD with CCFL Backlight
- Key Strength: Exceptional reliability and form-factor continuity for specialized equipment, ensuring seamless integration without costly redesigns.
Application Scenarios & Engineering Value
The value of the LQ181E1LE38 lies not in competing with the latest display trends, but in providing a steadfast, reliable solution for specific, demanding environments. Its unique combination of size and resolution makes it an indispensable component in several key sectors.
- Medical Diagnostic Stations: In fields like radiology and clinical analysis, many diagnostic instruments were originally designed around high-resolution 5:4 displays. The LQ181E1LE38 serves as a direct drop-in replacement, allowing healthcare providers to extend the life of validated, multi-million-dollar equipment without altering the user interface or recertifying software.
- Industrial HMI & Process Control: Complex Supervisory Control and Data Acquisition (SCADA) systems and legacy CNC machines often feature graphical interfaces optimized for SXGA resolution. Upgrading these systems with a different aspect ratio can distort critical information. This panel ensures that schematics, control layouts, and data readouts are displayed exactly as intended.
- Specialized Test and Measurement Equipment: High-precision lab equipment, from spectrum analyzers to semiconductor inspection tools, requires a display that offers sharp, detailed readouts. The 1280x1024 pixel grid on an 18.1" screen provides excellent pixel density for rendering fine waveforms and detailed numerical data without scaling artifacts.
Key Parameters Overview
For engineers, the specifications determine the fit. The Sharp LQ181E1LE38 delivers a balanced profile for its intended applications. For a comprehensive datasheet, please contact our technical team.
| Parameter | Specification |
|---|---|
| Manufacturer | Sharp |
| Model Name | LQ181E1LE38 |
| Screen Technology | a-Si TFT-LCD, Normally White, Transmissive |
| Resolution | 1280(RGB)×1024 [SXGA] |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 300:1 (Typ.) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pins Connector |
| Backlight System | 6 pcs CCFL |
| Operating Temperature | 0 ~ 50 °C |
Technical Deep Dive: Purpose-Built Performance
The engineering choices behind the LQ181E1LE38 are deliberate. The SXGA resolution offers a significant advantage over XGA (1024x768) by providing 67% more pixels, which is crucial for displaying dense information without requiring the user to scroll. This is a non-trivial benefit in high-stakes monitoring environments where a complete operational overview is essential.
The panel utilizes a dual-channel LVDS (Low-Voltage Differential Signaling) interface, a standard known for its high noise immunity and reliability over the long cable runs often found inside large industrial machinery or medical carts. Furthermore, the CCFL backlight, while a mature technology, is prized in certain industries for its exceptionally stable color rendering and predictable performance over its entire operational life—a vital trait for applications where color consistency is linked to diagnostic accuracy or safety alerts.
Frequently Asked Questions
- Is a CCFL backlight still a viable option?
For new consumer-facing designs, LED is standard. However, for industrial and medical replacement cycles, CCFL offers a key advantage: matched performance. Replacing a CCFL with an LED panel often requires adjustments to the driving inverter and control signals. Using the LQ181E1LE38 avoids this engineering overhead, reducing cost, validation time, and risk.
- What are the main considerations when integrating this panel?
The primary considerations are mechanical fit and inverter compatibility. Engineers should verify that their existing mounting points align with the panel's chassis and that their existing CCFL inverter provides the correct startup voltage and sustaining current for the 6-tube backlight system. Our team can assist in verifying these parameters.
The Sharp LQ181E1LE38 represents a commitment to the long-term lifecycle of critical systems. It’s an engineered solution for maintaining performance and reliability where it matters most. For more information on TFT-LCD technology or to discuss your specific application needs for industrial displays, contact our engineering support team.
