Content last revised on December 8, 2023
Manufacturer Sharp

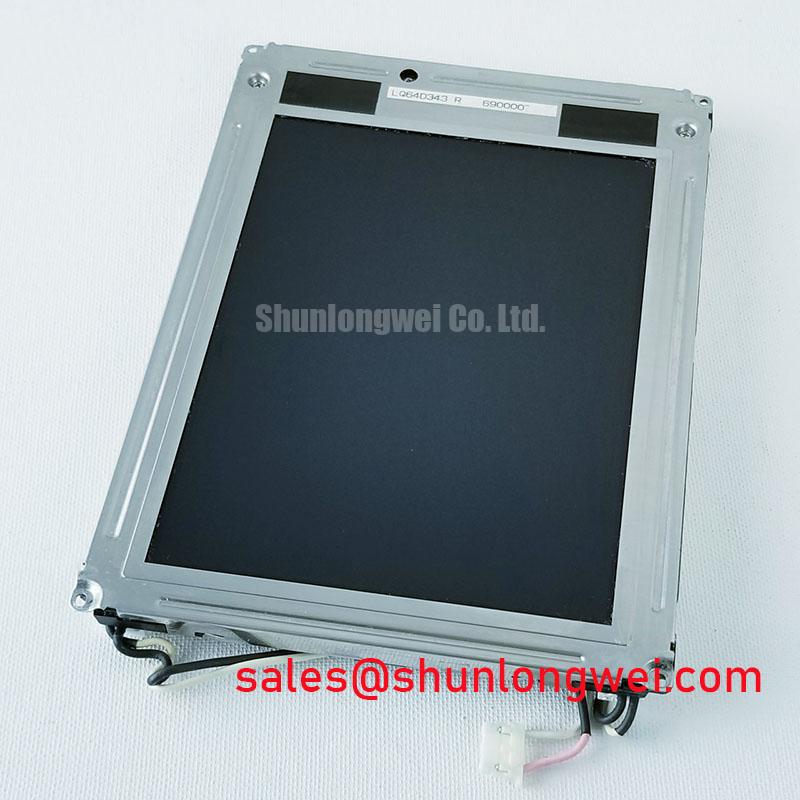

Model Name LQ64D343R
Screen Size 6.4 inch
Screen Type LCM, a-Si TFT-LCD
Pixel Number 640(RGB)×480 (VGA) 124PPI
Arrangement RGB Vertical Stripe
Active Area(mm) 130.56 × 96.96 (H×V)
Outline(mm) 175 × 126.5 (H×V×D)
Bezel Area(mm) 136.2 × 100.0 (H×V)
Treatment Antiglare (Haze 28%), Hard coating (3H)
Luminance 300 cd/m² (Typ.)
Contrast Ratio 150 : 1 (Min.) (TM)
Viewing Angle 70/70/40/70 (Typ.)(CR≥5) Left / Right / Up / Down
Response 20/40 (Typ.)(Tr/Td) ms
Good View at 6 o'clock
Work Mode TN, Normally White, Transmissive
Color Depth 262K
Backlight 2 pcs CCFL , 50K hours , No Driver
Mass 280g (Max.)
Used for Industrial
Touchscreen Without
Signal Type Parallel RGB (1 ch, 6-bit) , 31 pins Connector
Voltage Supply 5.0V (Typ.)(VCC)
Max. Ratings Storage Temp: -25 ~ 70 °C Operating Temp.: 0 ~ 55 °C
