Content last revised on May 23, 2023
Manufacturer Toshiba Matsushita

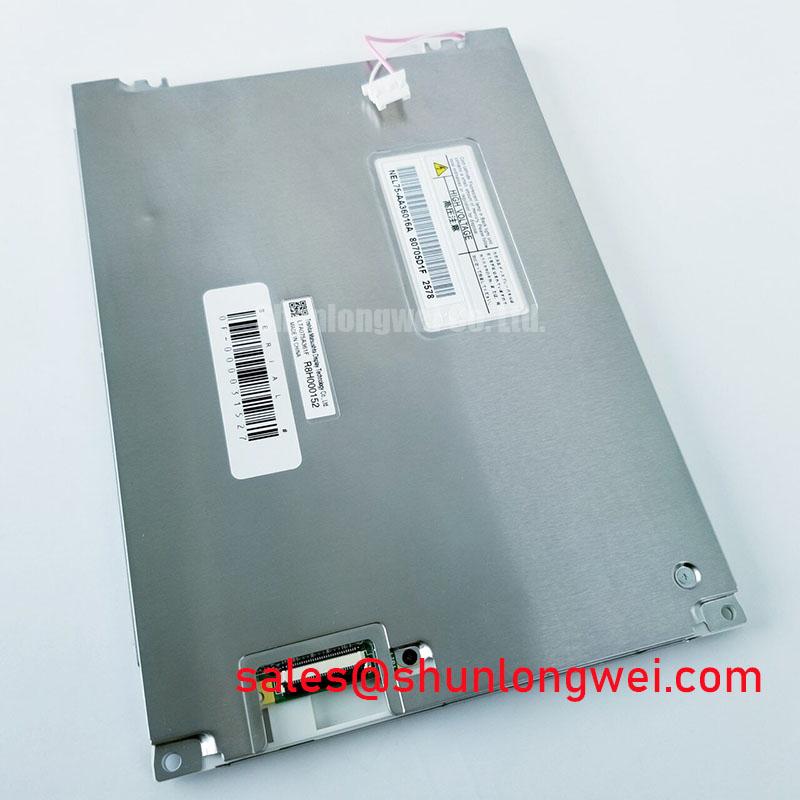

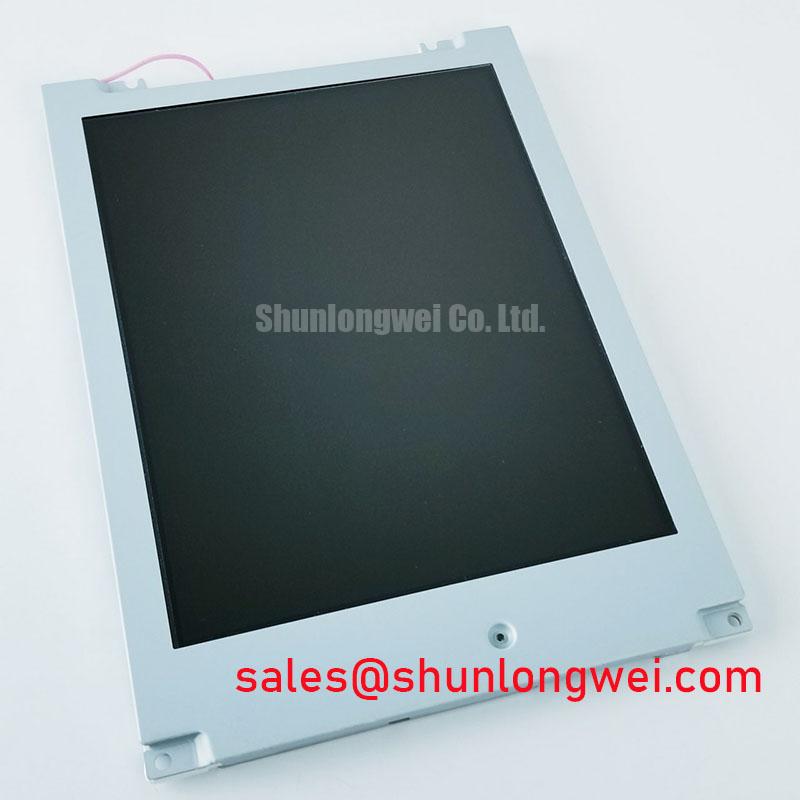

Model Name LTA075A361F
Screen Size 7.5 inch
Screen Type LCM, a-Si TFT-LCD
Pixel Number 640(RGB)×480 (VGA) 107PPI
Arrangement RGB Vertical Stripe
Active Area(mm) 151.68 × 113.76 (H×V)
Outline(mm) 195.2 × 137.5 (H×V×D)
Bezel Area(mm) 155.4 × 118 (H×V)
Luminance 350 cd/m² (Typ.)
Contrast Ratio 450 : 1 (Typ.) (TM)
Viewing Angle 70/70/60/60 (Typ.)(CR≥10) Left / Right / Up / Down
Response 15/25 (Typ.)(Tr/Td) ms
Work Mode TN, Normally White, Transmissive
Color Depth 262K
Backlight 1 pcs CCFL , 50K hours , No Driver
Mass 275g (Typ.)
Used for Industrial
Touchscreen Without
Signal Type CMOS (1 ch, 6-bit) , Connector 32 pins
Voltage Supply 3.3V (Typ.)(VDD)
Max. Ratings Storage Temp: -30 ~ 80 °C Operating Temp: -20 ~ 70 °C
