LTD104C11U: Technical Review of a Robust 10.4-inch VGA Industrial Display
Introduction to a Legacy-System Mainstay

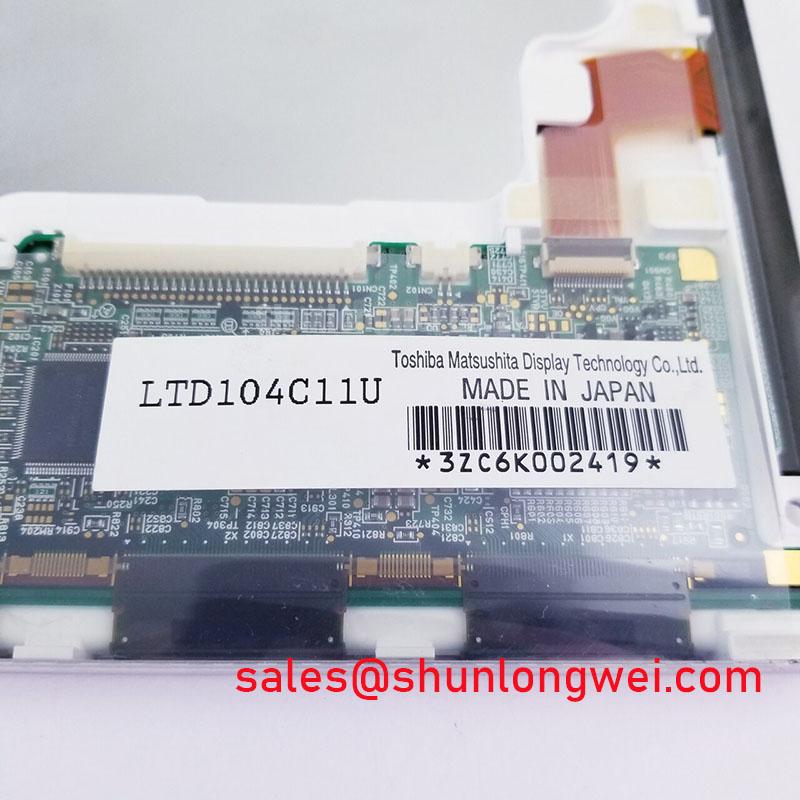

The Toshiba Matsushita LTD104C11U is a 10.4-inch a-Si TFT-LCD panel engineered for sustained performance in industrial environments. Delivering proven reliability, this display provides a direct-fit solution for legacy systems requiring a specific VGA resolution and mechanical footprint. Key specifications include: 640x480 VGA Resolution | 400 cd/m² Brightness | CCFL Backlight. The primary benefits are its robust construction for industrial longevity and simplified integration into existing equipment, minimizing costly redesigns. For OEM engineers managing the lifecycle of industrial HMIs or control units, the challenge is often finding displays that match established system parameters without forcing a complete hardware overhaul. The LTD104C11U directly addresses this by providing a stable, long-term solution. For systems where maintaining the original 4:3 aspect ratio and VGA interface is paramount, the LTD104C11U is the optimal choice for extending equipment life.
Key Parameter Overview
Decoding the Specs for System Integration & Longevity
The parameters of the LTD104C11U are tailored for industrial control and instrumentation applications where reliability and consistent performance are critical. The specifications support straightforward integration into a wide range of legacy systems.
| Parameter Category | Specification | Engineering Value |
|---|---|---|
| Display Panel | 10.4" a-Si TFT-LCD, TN, Normally White | Standard industrial size with proven technology for long-term availability. |
| Optical Performance | Resolution: 640(RGB)×480 [VGA] | Brightness: 400 cd/m² | Contrast Ratio: 500:1 | Provides clear, readable HMI data in typical factory floor lighting conditions. |
| Interface & Electronics | CMOS (1 channel, 6-bit) Signal Interface | 32-pin Connector | Common interface simplifies connection to legacy controller boards and drivers. |
| Backlight System | CCFL (2 pcs), Edge Light Type (Top Side) | Mature and reliable illumination technology with predictable performance characteristics. |
| Mechanical & Environmental | Outline Dimensions: 238.5(H) × 177.5(V) × 12.0(D) mm | Weight: 500g (Typ.) | Robust construction with a standard form factor for drop-in replacement in many designs. |
| Viewing Characteristics | Viewing Angle: 70/70/50/70 (L/R/U/D) (Typ., CR≥10) | Offers a functional viewing cone suitable for fixed-mount operator panels and control consoles. |
Application Scenarios & Value
System-Level Benefits in Legacy Equipment Refresh Cycles
The LTD104C11U is strategically suited for applications where maintaining system validation and avoiding extensive re-engineering is a primary objective. Its design provides stability for long-life industrial equipment.
High-Fidelity Engineering Scenario: CNC Machine Controller Retrofit
An engineering team is tasked with extending the life of a fleet of CNC machines from the early 2000s. The original HMI panels are failing, but the core machine controllers, which output a 640x480 VGA signal, are perfectly functional. The primary challenge is finding a replacement display that fits the existing mounting enclosure and accepts the native 6-bit CMOS signal without requiring an intermediate converter board, which would add complexity, cost, and a new potential point of failure. The LTD104C11U's physical dimensions and native VGA resolution make it a direct-fit replacement. What is the primary benefit of its CMOS interface? It allows for direct connection to the existing controller, preserving the original system architecture and software, drastically reducing integration time and validation costs compared to a modern panel requiring signal conversion.
This focus on backward compatibility makes the panel an ideal candidate for:
- Industrial Automation and Control Panels
- Medical Diagnostic Equipment
- Test and Measurement Instruments
- Point-of-Sale (POS) Systems
For applications demanding a similar form factor but with higher resolution for more complex graphical interfaces, the related G104VN01 V0 may be a suitable consideration.
Technical Deep Dive
Understanding the Engineering Choices Behind the LTD104C11U
The design of the LTD104C11U reflects a commitment to industrial-grade durability over cutting-edge specifications. The use of an a-Si (Amorphous Silicon) TFT-LCD substrate is a deliberate choice. While newer technologies like LTPS offer higher pixel densities, a-Si manufacturing is a mature, highly stable process known for producing panels with excellent long-term reliability and uniformity—critical factors for industrial HMIs that may operate 24/7. This technology choice is akin to using a proven, heavy-duty truck engine instead of a high-performance sports car engine for a commercial vehicle; the priority is unwavering reliability over raw speed.
Furthermore, the integration of a CCFL (Cold Cathode Fluorescent Lamp) backlight system is significant. In many legacy systems, the existing power supplies and inverter boards are designed specifically for the voltage and current requirements of CCFLs. By retaining this technology, the LTD104C11U allows for a seamless display-head replacement without needing to re-engineer the entire backlight power subsystem. This simplifies repairs and upgrades, preserving the integrity of the original system's electrical design and certifications.
Frequently Asked Questions (FAQ)
What makes the 640x480 VGA resolution a key feature for this model?
The VGA resolution is crucial because it matches the native output of a vast number of embedded industrial controllers and single-board computers that have been in service for years. Using the LTD104C11U avoids the need for signal scaling or conversion, which can introduce latency and visual artifacts, ensuring the HMI remains crisp and responsive as originally designed.
How does the CCFL backlight impact system design and maintenance?
The CCFL backlight provides consistent brightness and a long operational life suitable for industrial use. For maintenance, it means the display is compatible with the high-voltage inverters commonly found in older equipment. This allows for component-level replacement of either the panel or the inverter, offering more flexible and cost-effective repair options compared to fully integrated LED backlight systems.
Is the CMOS 6-bit interface still relevant for new designs?
While many new designs utilize LVDS or eDP interfaces, the 6-bit CMOS interface remains highly relevant for legacy system repairs and lifecycle extensions. Its direct, parallel nature simplifies the connection to older graphics controllers, making it an indispensable feature for maintaining validated hardware platforms without extensive redesigns.
Empowering Your System Design
For engineering teams focused on maintaining the operational integrity and extending the lifecycle of established industrial systems, the LTD104C11U offers a reliable, direct-fit display solution. Its adherence to legacy standards provides a crucial bridge for long-term equipment support. To further explore integration possibilities or discuss specific application requirements, we invite you to connect with our technical support team for in-depth guidance.
