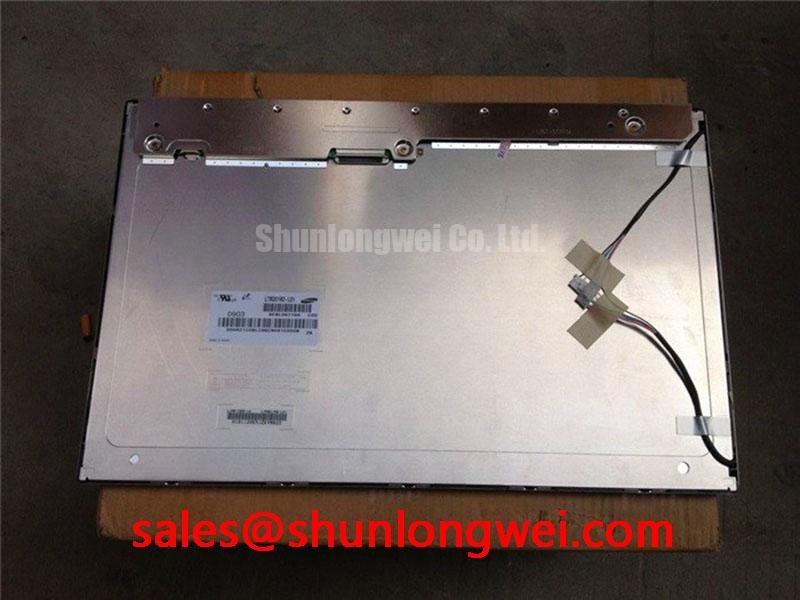

SAMSUNG LTM201M2-L01 LCD Display

Samsung LTM201M2-L01: 20.1" 1600x1200 UXGA panel. Ideal for legacy medical/industrial systems with its LVDS interface & wide viewing angles, ensuring precision & easy integration.

· Categories: LCD Display
· Manufacturer: SAMSUNG
· Price: US$
· Date Code: 2018+
. Available Qty: 336
Like
Tweet
Pin It
4k
Email: sales@shunlongwei.com
Whatsapp: 0086 189 2465 1869
Tags:

Contact us To Buy Now!

LTM201M2-L01 Specification

Samsung LTM201M2-L01 | High-Resolution UXGA Display for Demanding Visual Applications

The Samsung LTM201M2-L01 is a 20.1-inch a-Si TFT-LCD module engineered for applications where visual precision and data integrity are non-negotiable. Delivering a sharp 1600x1200 UXGA resolution, this display is a premier choice for legacy system upgrades and new designs in medical imaging, industrial control, and scientific instrumentation. Its robust construction and stable performance make the LTM201M2-L01 a trusted component for mission-critical environments.

Technical Deep Dive: Uncompromising Image Quality

Two core attributes set the Samsung LTM201M2-L01 apart in its class: its exceptional resolution and its expansive viewing cone. These are not just numbers on a datasheet; they are critical enablers for application performance.

  • Precision with UXGA (1600x1200) Resolution: With over 1.9 million pixels, the UXGA format provides significantly more detail than standard XGA or HD displays. For an operator monitoring a complex industrial process or a radiologist examining a high-detail medical scan, this higher pixel density translates directly to better decision-making. It allows for the clear rendering of fine lines, subtle gradients, and dense text without downscaling or loss of information.
  • Consistent Off-Axis Viewing: The panel boasts typical viewing angles of 80° in all directions (horizontal and vertical). This ensures that colors and contrast remain stable even when viewed from a significant offset. Unlike consumer-grade panels that suffer from color shift, the LTM201M2-L01 allows multiple users to view the screen simultaneously without degradation, a crucial feature for collaborative diagnostic stations or control room monitoring.

Application-Specific Value Across Industries

The true value of the Samsung LTM201M2-L01 is realized when its technical strengths are applied to solve real-world challenges.

  • Medical Diagnostics: In fields like digital pathology and radiology, the ability to discern subtle tissue variations is paramount. The display's high contrast ratio and UXGA resolution enable the detailed analysis required for accurate diagnoses, serving as a reliable drop-in replacement for aging medical-grade monitors.
  • Industrial Automation & HMI: Complex SCADA systems and machine interfaces present operators with dense information. This display’s large screen real estate and sharp resolution allow for less cluttered, more readable layouts, reducing operator error and improving efficiency. Its stable CCFL backlight ensures long-term, consistent brightness suitable for 24/7 control room operations.
  • Scientific & Test Equipment: For oscilloscopes, spectrum analyzers, and other measurement instruments, the panel's clarity ensures that waveforms and data plots are rendered with precision, preventing misinterpretation of critical test results. Ensuring proper electrostatic discharge protection during integration is key to maintaining its long-term reliability in lab environments.

Key Technical Specifications

ParameterValue
Model NameLTM201M2-L01
Screen Size20.1 inch
Resolution1600(RGB)×1200, UXGA
Brightness250 cd/m² (Typ.)
Contrast Ratio700:1 (Typ.)
Viewing Angle80/80/80/80 (Typ.)(CR≥10)
Interface TypeLVDS (2 ch, 8-bit)
Backlight4 pcs CCFL

Integration and Legacy System Compatibility

While many modern displays have transitioned to LED backlights and eDP interfaces, the Samsung LTM201M2-L01 retains a CCFL backlight system and a standard LVDS interface. This makes it an ideal and cost-effective solution for extending the life of existing equipment. Upgrading a system designed for CCFL/LVDS to a modern panel can require a complete overhaul of the driver boards and power systems. The LTM201M2-L01 provides a direct, form-fit-function replacement, minimizing downtime, validation costs, and engineering effort. Furthermore, it is manufactured to meet key environmental standards, including RoHS compliance.

Frequently Asked Questions (FAQ)

  • Can the CCFL backlight be replaced?Yes, the CCFL tubes and their associated inverter are serviceable components. This modularity is a key advantage for long-term maintenance, allowing for the replacement of the backlight system to restore original brightness without replacing the entire LCD panel.
  • Is this display suitable for outdoor use?With a typical brightness of 250 nits, the LTM201M2-L01 is designed for indoor industrial and medical environments. It is not sunlight-readable. For outdoor applications, you would need a high-brightness panel, which you can find by browsing our complete collection of industrial LCD modules.
  • How does this panel compare to a modern 4K consumer monitor?While a consumer 4K monitor has higher resolution, the LTM201M2-L01 is built for industrial reliability. It offers superior longevity, stable performance over a wider temperature range, and guaranteed long-term availability, which are critical factors that consumer-grade products do not provide.

If your system requires a display with proven reliability and exceptional visual detail, the Samsung LTM201M2-L01 is an excellent engineering choice. For pricing, availability, and technical consultation on your specific application, please contact our technical sales team.
