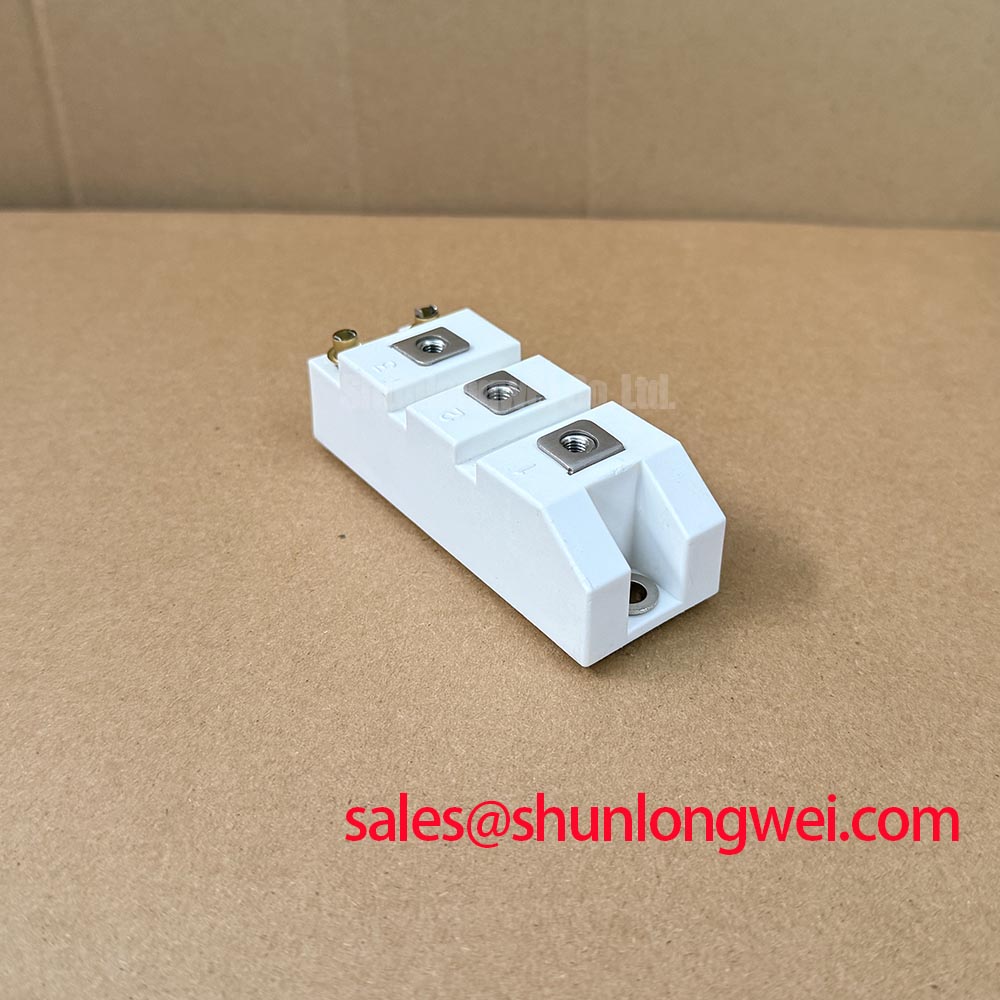

Assembly Integrity & Layout Architecture: Evaluating Failure-in-Time Rates at High Altitude for LUH150G603Z

With the DC link safely discharged and isolated, begin by checking that each accessible power terminal is electrically separate from the mounting surface, where isolation is required by the host design, and from terminals that should not be directly connected in the host circuit. Record the cold-state readings in both meter polarities, label the probe points, and compare them with the circuit schematic or a known serviceable assembly. This establishes a useful receiving baseline for the LUH150G603Z before it is introduced into a commercial string inverter or micro-grid energy-storage cabinet.

The official product identity supports only a Power Semiconductor in a Module package with a General Power Stage topology. It does not provide a VCES rating, IC rating, isolation rating, terminal drawing, thermal resistance, gate-drive requirement, or qualified altitude condition. These omitted values must not be inferred from the part number, enclosure appearance, or the ratings of the removed module. The system integrator should verify the required voltage, current, terminal assignment, insulation coordination, and switching-device behavior from the original equipment documentation.

At sites above 2000 m, reduced air density changes the system-level evaluation of clearance, creepage, enclosure contamination, cooling performance, and transient behavior. A specific neutron-induced single-event burnout rate or FIT calculation requires manufacturer-qualified device data, operating voltage, junction temperature, mission profile, geographic conditions, and a defined calculation method. No official source data supplied for LUH150G603Z establishes those inputs, so no numeric FIT or SEB rate should be assigned to this module.

Design Consideration: Keep high-energy DC-link conductors physically controlled, preserve the equipment designer's intended clearance paths, and inspect for carbon tracking, loose buswork, damaged insulating barriers, or contamination around live terminals. These conditions can alter field stress independently of semiconductor intrinsic behavior. Where an inverter has logged intermittent DC-bus faults, capture switching waveforms at the installed operating point and verify peak voltage margins against the system DC-link voltage during switching tests.

For broader context on switching-device selection and reliability tradeoffs, the engineering discussion in Wide Bandgap Revolution is useful when comparing system-level SiC, GaN, and conventional power-semiconductor design constraints. That comparison does not establish the internal construction or qualification limits of LUH150G603Z.

Measure insulation-related paths only with a test method approved for the complete assembly. Applying an unsuitable test voltage to a populated inverter can damage adjacent driver, sensing, or protection circuits, making the result unsuitable as a module-only assessment. Confirm that test leads, probes, and fixture insulation have appropriate ratings for the energized system boundary.

LUH150G603Z Operational Boundaries: Evaluating Baseplate Thermal Grease Layer Control Limits

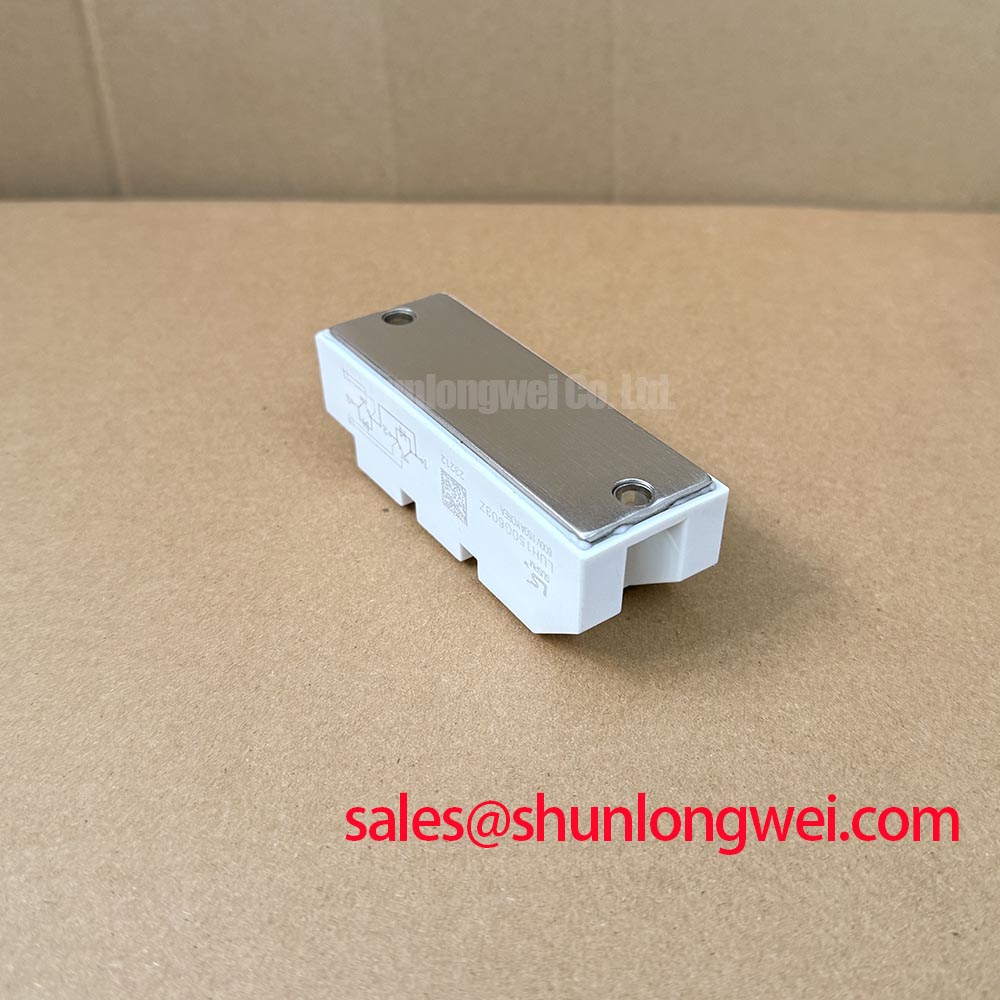

Inspect the removed module's contact face and mating heatsink under oblique light, then look for localized grease displacement, trapped debris, uneven clamp marks, corrosion, or evidence that the module sat on a warped surface. These observations help determine whether heat-transfer irregularity may have contributed to a fault, but they do not prove junction-temperature history or module damage on their own.

The supplied official data identifies the package as a Module but does not confirm a baseplate material, mounting-hole size, screw count, torque, flatness limit, thermal-interface recommendation, or permissible grease thickness. Do not apply a generic torque value as an official LUH150G603Z requirement. The mechanical drawing and service documentation for the host equipment determine compatible hardware, tightening order, insulation washers, and torque.

Engineering Recommendation: Where the original assembly uses a grease-type thermal interface, apply it as a continuous controlled film and avoid dry regions or accumulated material that can hold the module off the heatsink. A commonly discussed thin-layer range of 50 to 100 um is a general thermal-interface process reference, not a published requirement for this model. Surface flatness, grease viscosity, clamp geometry, and the original thermal design determine the appropriate production process.

Use a sequential, alternating tightening pattern when the documented installation calls for multiple fasteners. This practice reduces the chance that one side is clamped while the opposite side remains unsupported. After tightening to the equipment-defined requirement, inspect connector seating and terminal hardware again because mechanical movement can affect busbar alignment, auxiliary-wire strain relief, and protective covers.

⚠️ Field Alert: Never reconnect a power module while residual DC-link energy remains present, because a low-energy control-side check can become a high-energy fault when the bus is still charged.

Dead-time and complementary-switch interlock are system controls rather than module specifications. During a repair, examine the two gate-command channels at the driver output and at the module connection point when safe test conditions allow. A missing interlock, timing corruption, common-mode disturbance, or unequal gate-loop impedance may all contribute to cross-conduction. The required dead-time buffer must be established from the original switching topology, operating conditions, and measured waveform behavior, then verified by the system engineer.

For inverter assemblies using isolated drivers or optocoupler-based command paths, check that the isolation barrier, local bias supply, fault-return wiring, and controller reference remain coherent during switching transitions. Common-mode transient immunity is a driver-chain property evaluated in the installed layout; it cannot be claimed from the LUH150G603Z module identity alone.

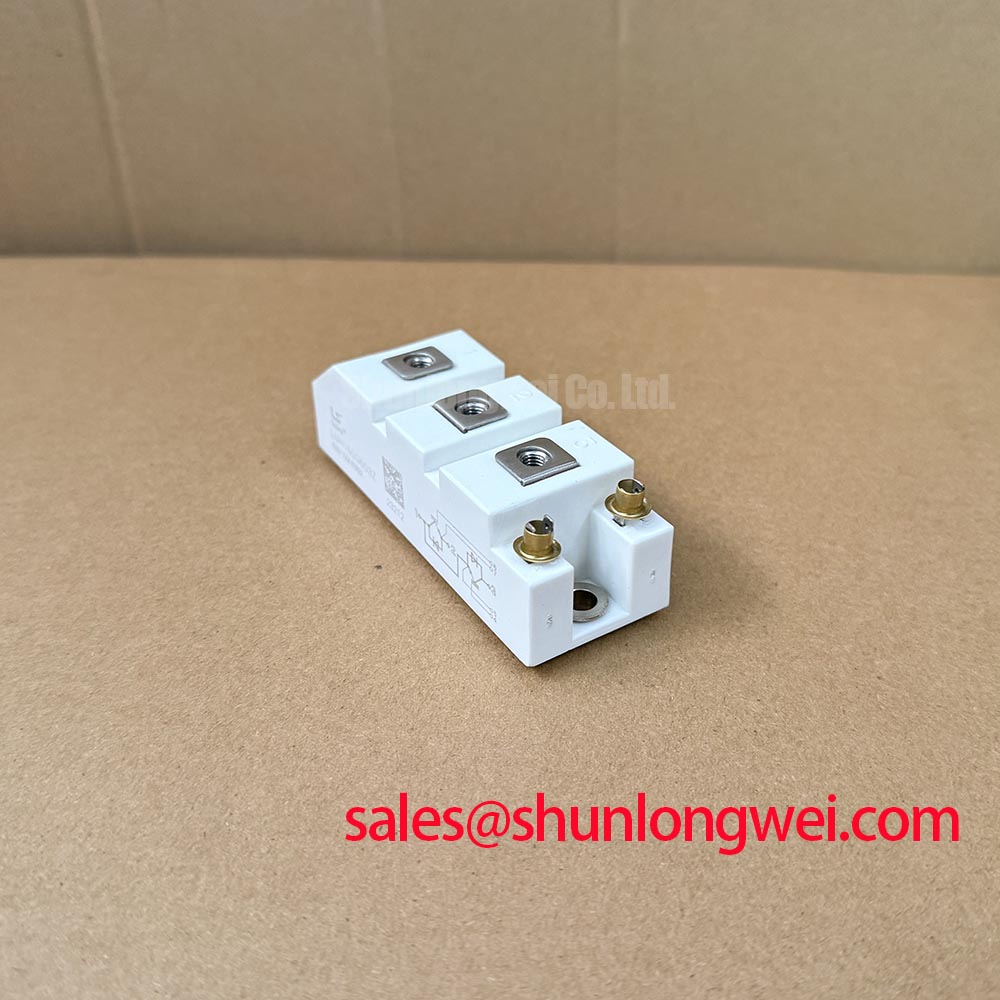

Benchtop Waveform Tuning: Mitigating Stress via Active Miller Clamp Implementation on LUH150G603Z

Probe the commanded-off gate node and the corresponding power-switching node with correctly rated, low-loop measurement equipment, then compare the observed event with a known-good channel under the same controlled condition. A gate voltage rise during a fast collector or switching-node transition can indicate capacitive coupling through the gate path, shared source or emitter inductance, driver-output impedance, probe arrangement, or a layout-related return-path problem.

LUH150G603Z is officially described only as a general power-stage module. The supplied data does not identify the semiconductor type, control-terminal configuration, gate-emitter limits, recommended positive or negative gate bias, gate charge, internal diode arrangement, or Kelvin-emitter provision. It is therefore inappropriate to prescribe an active Miller clamp, a negative gate-bias level, or a gate-resistor value as a model-specific setting.

Design Consideration: An active Miller clamp is a driver-side technique used in suitable gate-controlled switching systems to present a low-impedance hold-off path when the command is off. Its usefulness depends on confirmed terminal architecture and a driver designed to support that function. Engineers should validate the clamp action at the actual module terminals, because a waveform measured only at the controller can hide voltage developed in the gate return path.

Keep the command loop compact and separate its return path from the high-current commutation path where the documented terminal arrangement permits. This reduces parasitic coupling that can otherwise disturb the gate reference during rapid switching. The final layout, damping arrangement, isolation strategy, and gate-drive polarity are system-determined and should be validated against the host inverter's protection thresholds and switching waveforms.

A diode-mode meter check can help expose a hard short or an open connection in an accessible power path, but it does not characterize switching performance. Record both probe polarities, leave the control terminals in the documented safe state, and avoid treating one reading as a universal pass or fail threshold. Compare like-for-like readings with a verified reference module only when the terminal function and test configuration are known.

The switching principle behind a solid-state power path is discussed in this reference on Solid-State Relay Working Principles. The control and isolation concepts are useful background, while the actual LUH150G603Z terminal behavior must be established from the equipment documentation and approved test procedure.

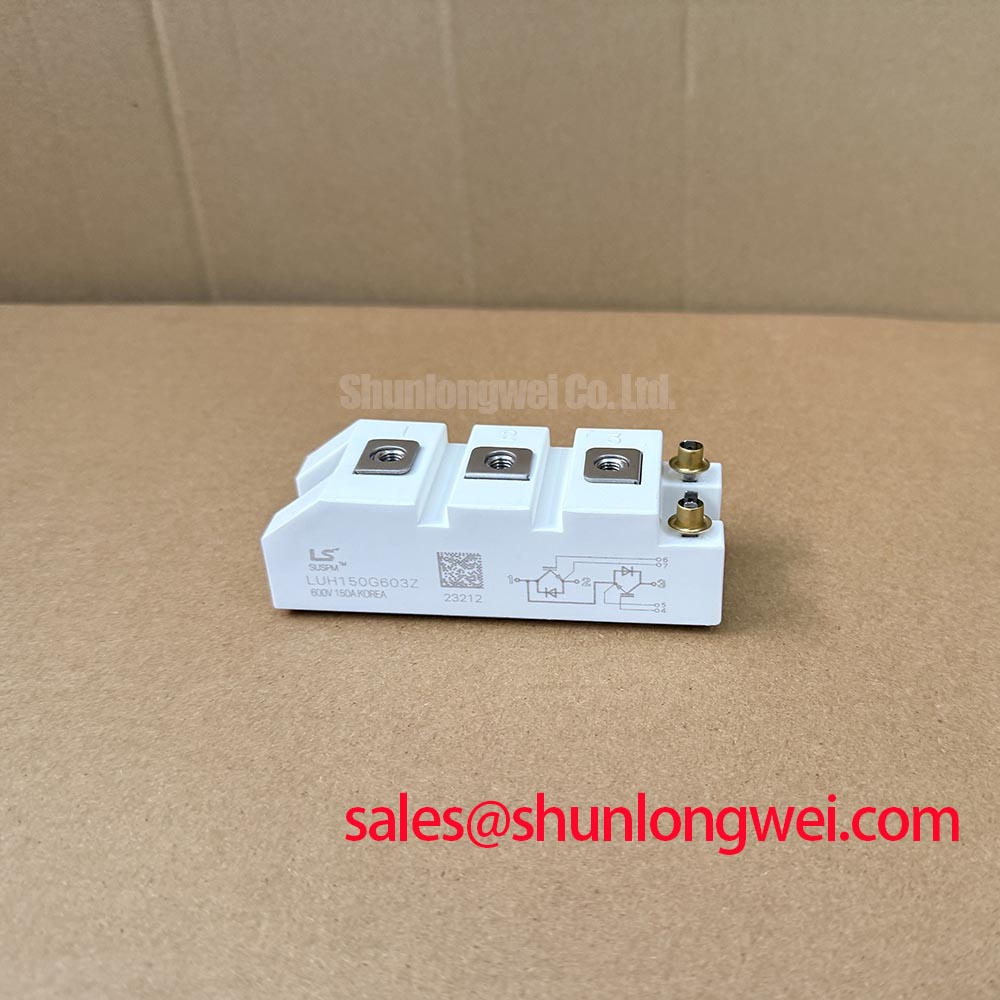

LUH150G603Z Operational Boundaries: Evaluating Thermal Stress Alleviation in Bidirectional Limits

Trend heatsink temperature, DC-link current, switching waveforms, and protection-event records through charge and discharge transitions before attributing a recurring trip to the module. In a micro-grid energy-storage system, changes in load direction and battery power demand can alter current paths, switching duty, cooling demand, and control-loop response. A repeated alarm may arise from several interacting conditions, including sensor drift, airflow restriction, command timing, busbar resistance, cooling-system operation, or a semiconductor fault.

Bidirectional power flow is a system-topology function. The official information for LUH150G603Z identifies a General Power Stage but does not certify four-quadrant operation, battery-rack compatibility, allowable C-rate, switching frequency, reverse-conduction behavior, or thermal-cycling capability. Those conditions require confirmation against the original inverter design and its applicable documentation.

Engineering Recommendation: Compare the thermal behavior of equivalent phase positions under matched load conditions, using the same sensor locations and cooling state. A localized temperature difference can direct inspection toward interface contact, current-sharing paths, driver behavior, or measurement integrity. It should be investigated with waveform and mechanical evidence rather than treated as proof of a single failure mechanism.

In commercial string inverter service, check fan operation, duct obstructions, heatsink cleanliness, coolant condition where applicable, and the integrity of temperature-sensor connections. Inspect DC-link busbars and terminal joints for looseness, discoloration, or mechanical strain after the system is fully isolated. These checks support a controlled repair decision without asserting an unverified service-life figure for the module.

For replacement evaluation, retain the original electrical architecture: confirm the exact terminal map, mechanical envelope, insulation interfaces, driver compatibility, and protection coordination before installation. The absence of published voltage and current values in the supplied official data means that a matching package category alone cannot establish electrical interchangeability. This approach keeps the assessment centered on documented equipment requirements and observable bench results.
