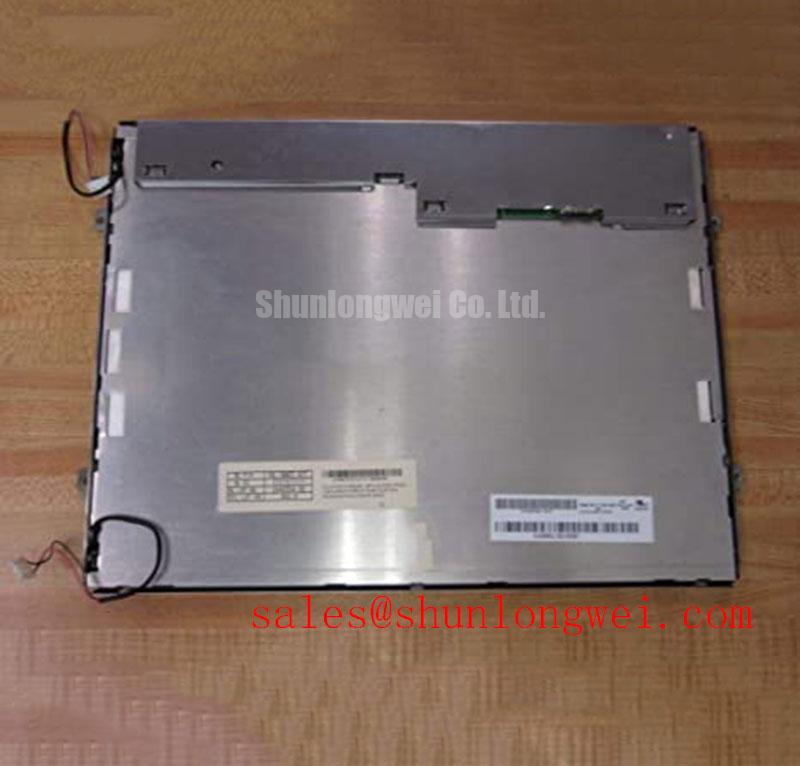

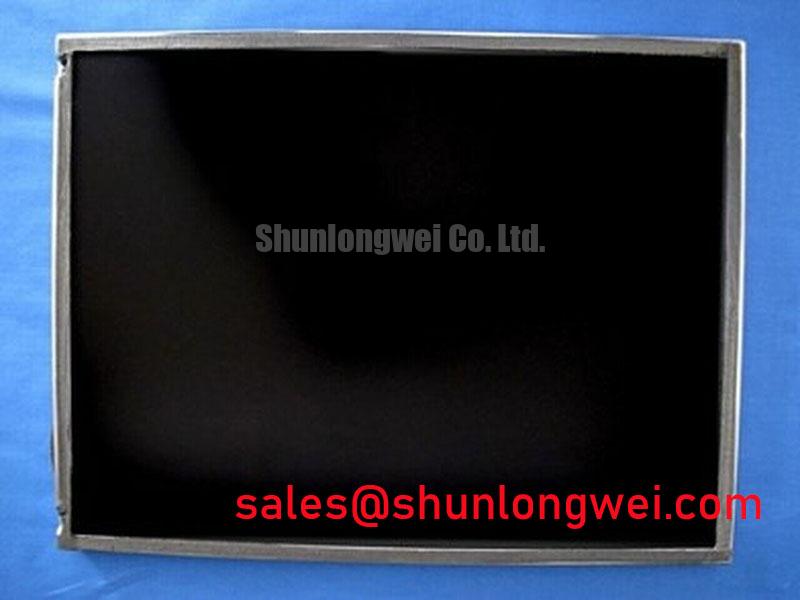

AUO M150XN05 V6 LCD Display

Brand AUO

ptronics Model M150XN05 V6

Diagonal Size 15.0 inch

Type a-Si TFT-LCD, LCM

Pixel Format 1024(RGB)×768  [XGA]  85PPI

Configuration RGB Vertical Stripe

Active Area 304.128(H)×228.096(V) mm

Outline Dim 326(H)×249(V) mm

Bezel Area 307.4(H)×231.3(V) mm

Treatment Antiglare, Hard coating (3H)

Luminance 250 cd/m² (Typ.)

Contrast Ratio 400:1 (Typ.) (TM)

View Direction 6 o'clock

Response Time 4/12 (Typ.)(Tr/Td)

Viewing Angle 60/60/40/60 (Typ.)(CR≥10) Left / Right / Up / Down

Operating Mode TN, Normally White, Transmissive

Support Color 262K   60% NTSC

Light Source CCFL  [2 pcs] , 30K hours , W/O Driver

Weight 1.10Kgs (Typ.)

Frame Rate 60Hz

120Hz (60HZ Input) : Embedded MEMC Circuit

120Hz+120Hz : 120Hz Panel+120Hz Backlight

240Hz (60HZ Input) : Embedded MEMC Circuit

Touch Panel Without

Interface Type TTL (2 ch, 6-bit) , 75 pins Connector

Power Supply 3.3V (Typ.)

Environment Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

M150XN05 V6 inverter, M150XN05 V6 power supply, M150XN05 V6 electronic board, M150XN05 V6 VGA board, M150XN05 V6 touchscreen available.
