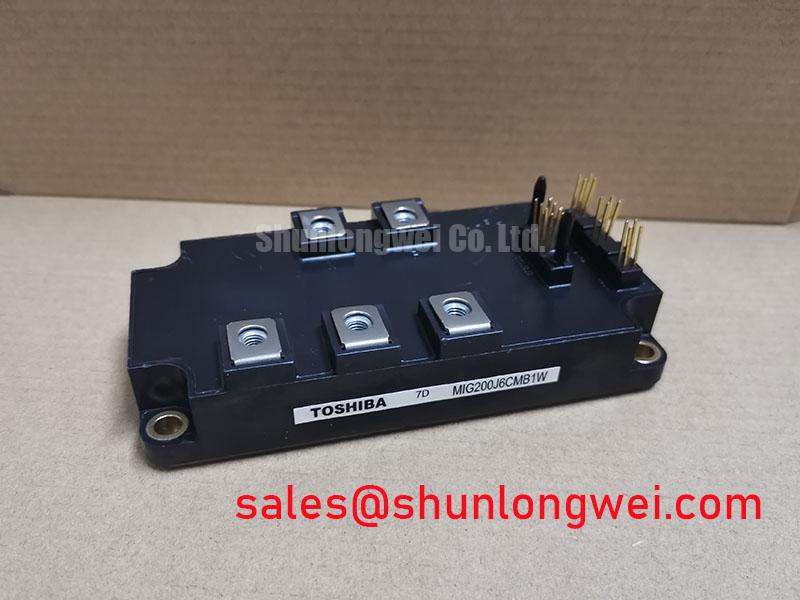

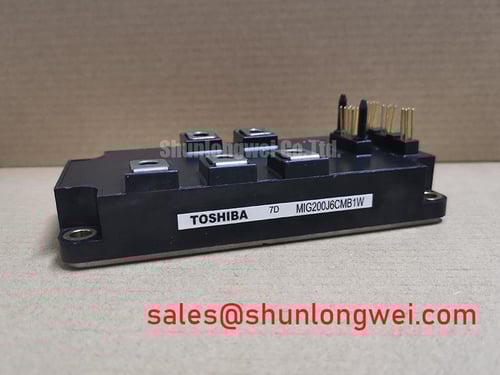

MIG200J6CMB1W Thermal and Electrical Checks During Pulsed Overload
Measure the heatsink temperature near the MIG200J6CMB1W mounting position while the equipment repeats the load cycle that triggers its alarm. Record the load current and the time between pulses alongside that measurement. A cool heatsink immediately after a trip does not establish that the semiconductor junction stayed cool: heat takes time to move through the module and mounting interface.
A transient thermal impedance model is useful when a heavy-duty variable frequency AC motor drive experiences brief acceleration or torque demands. As a Design Consideration, the engineer can apply the measured loss profile to the manufacturer’s transient thermal impedance data, then check the resulting junction-temperature estimate against the specified limit. Without the model’s thermal data and the actual operating losses, a peak junction-temperature margin for this unit cannot be calculated responsibly.
Inspect the mounting face for uneven contact, displaced thermal compound and fasteners that have loosened in service. Compare the installed cooling path with the equipment drawing, including airflow direction and obstructions around the heatsink. If temperature rises only during repeated starts, examine both the electrical load profile and the time available for cooling; a steady-state temperature reading can miss the condition that matters. ⚠️ Field Alert: Isolate and discharge the DC link before loosening module terminals or the heatsink assembly.
For a replacement assessment, compare the original unit’s nameplate and drawing with the proposed module’s electrical limits, mounting pattern and terminal locations. The related Toshiba MIG100J201H can be examined during that parts review, but a similar product family or model prefix does not establish drop-in compatibility. Treat the drive’s overload history as evidence to investigate, not as a basis for assigning an unverified current rating to MIG200J6CMB1W.
MIG200J6CMB1W Fault Detection and Controlled Turn-Off
Check the fault input and gate-command waveforms together when the drive trips under load. A fault indication that arrives after a current surge calls for a different investigation from one that appears before switching begins. Compare both traces with a known-good phase or the equipment’s recorded commissioning traces, using probes and measurement practices appropriate to the DC-link environment.
Trace each control and power terminal against the installed schematic before transferring wiring. The MIG200J6CMB1W description establishes that it is an IPM, but it does not establish a pinout, an accessible auxiliary emitter terminal, or a particular fault-reporting function. Verify those features for the exact unit rather than carrying over assumptions from another Toshiba module. With power isolated, inspect connectors for seating and strain, check for contamination between conductors, and confirm that busbar hardware is secure without imposing a torque value taken from an unrelated package.
Desaturation detection and controlled turn-off are Design Considerations for a drive protection circuit, not confirmed internal functions or timing specifications of this module. If the equipment uses them, examine the driver schematic and captured fault sequence to establish when current was detected, when the gate command changed and how the collector voltage responded. A slower fault turn-off can reduce inductive overshoot but prolong fault current; the protection sequence must be judged against the documented limits of the installed power stage. Isolated-driver concepts are described in STMicroelectronics’ galvanically isolated gate-driver resources, though that guidance does not specify the circuitry inside this Toshiba IPM.
Follow the energy path beyond the module during the same inspection. In a drive with regenerative braking, a brake-chopper or resistor fault can change DC-link behavior during deceleration and complicate a power-stage diagnosis. Likewise, a device in an upstream or auxiliary stage, such as the separately listed MIG25Q901H, has its own role and ratings; identify that role from the equipment schematic before attributing a DC-link disturbance to the inverter module.
Commutation Loop Inductance Around MIG200J6CMB1W
Capture the collector-to-emitter switching waveform at the power stage when turn-off overshoot is suspected. Compare the peak with the DC-link voltage under the same operating condition, then inspect the physical path through the module terminals, busbars and DC-link capacitors. Long or widely separated current paths can contribute to overshoot, but a waveform alone does not identify which connection is responsible.
As an Engineering Calculation, switching overshoot can be considered in terms of DC-link voltage plus the commutation-path inductance multiplied by the rate of current change. That relationship explains why a layout change and a gate-drive change can affect the same voltage peak. It does not supply a permissible inductance or snubber value for MIG200J6CMB1W. The system engineer must determine component values and confirm switching peaks against the module’s verified voltage limit during equipment testing.
Inspect busbar overlap, capacitor connections and terminal contact surfaces before changing a snubber. A loose joint or altered replacement busbar can change the loop even when the circuit diagram is unchanged. If an existing snubber has failed, identify its connection and original parts from the drive documentation; selecting a capacitor from its physical size or from another drive risks overlooking pulse-current and voltage demands. Maintain the equipment’s documented conductor spacing and insulation arrangement after reassembly.
Check gate-drive behavior on the same capture where practical. An unexpectedly fast current transition, gate ringing or noise on the driver reference can accompany a high collector-voltage peak. If the installed design provides a separate emitter-sense return, trace it independently of the power-current path; do not infer that such a terminal exists from the IPM category alone. Bootstrap charging, diode recovery and any negative off-state bias also belong to the verified driver circuit, not to an assumed specification for this module. The broader interaction of gate drive, circuit topology and thermal loading is covered in IGBT Design & Integration.
MIG200J6CMB1W Busbar Balance and Repair Verification
Compare the busbar connections at each drive phase when current or temperature readings diverge after a repair. Look for differences in terminal contact, conductor routing and sensor placement before assigning the imbalance to the MIG200J6CMB1W. Repeat the comparison at a controlled load and retain the waveforms: phase-current feedback, gate commands and DC-link voltage together give a more useful record than a single alarm code.
Symmetrical busbars and matched gate paths are Design Considerations where a system has parallel switching paths. They help engineers control differences in electrical path length and switching behavior, but they do not prove static or dynamic current sharing. In particular, a favorable temperature coefficient must not be assumed for this exact module or operating point without applicable device data. Review the equipment schematic to establish whether any devices are actually paralleled before applying current-sharing arguments.
For a motor-drive repair, separate controller behavior from power-stage behavior. The controller may use measured phase currents in an alpha-beta coordinate transformation, as described in the Clarke transformation; incorrect feedback can therefore alter commanded switching even if a cold terminal check finds no obvious short. Compare current-sensor readings and commanded output with the observed phase waveforms before condemning the module.
Finish the electrical comparison with the original unit’s terminal map, verified voltage and current ratings, mounting interface, and drive-control connections. Then test the repaired equipment through the operating conditions that previously produced the fault, watching temperature, DC-link behavior and switching peaks. Those measurements determine whether the installed power stage has regained its required operating margin; the Toshiba model name alone cannot establish it.
