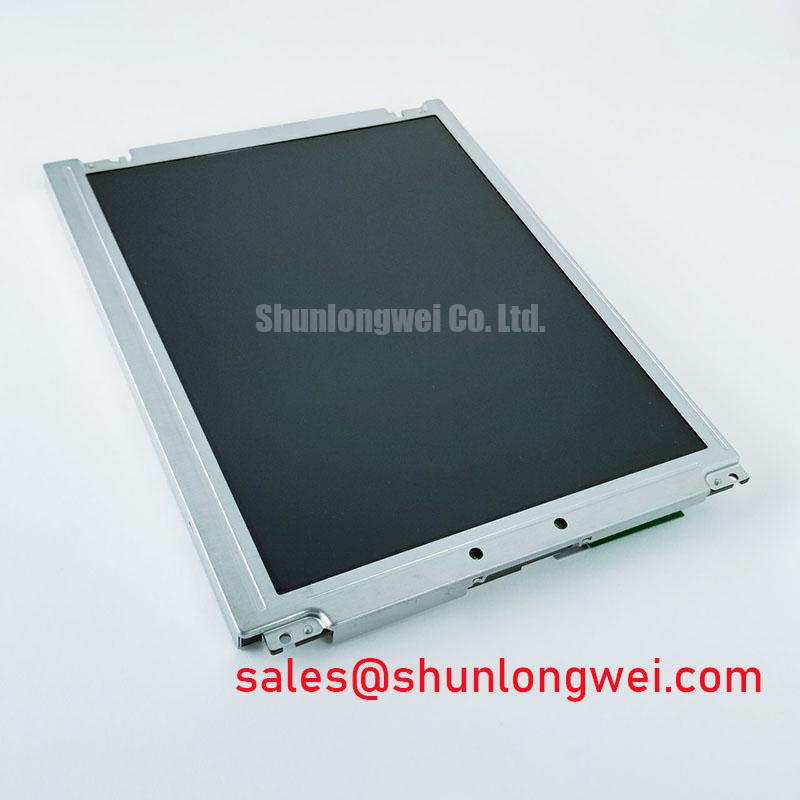

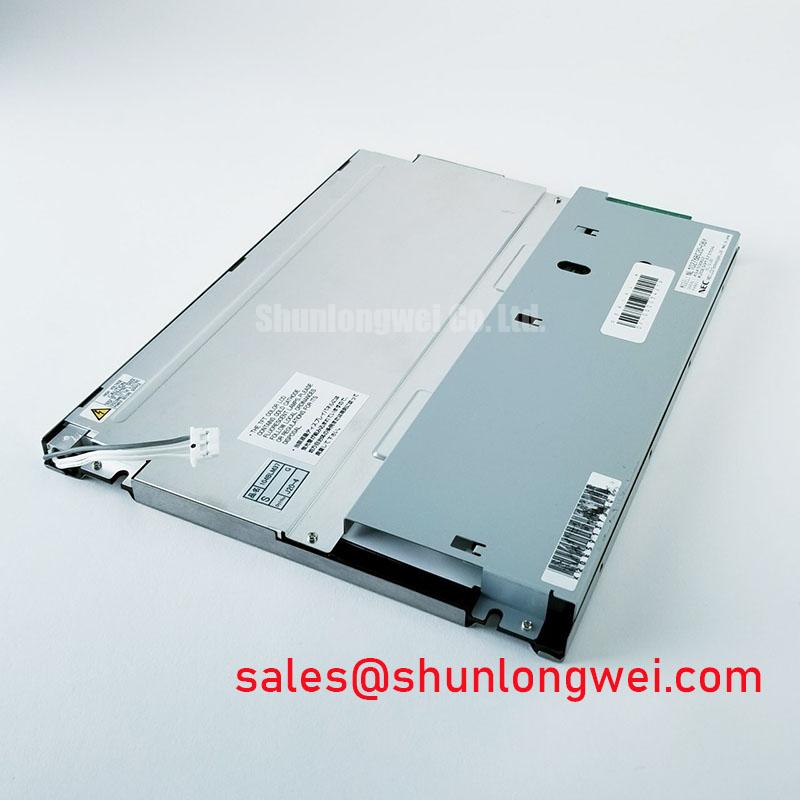

Brand NEC
Model NL10276BC20-18B
Diagonal Size 10.4 inch
Type a-Si TFT-LCD, LCM
Pixel Format 1024(RGB)×768 [XGA] 123PPI
Configuration RGB Vertical Stripe
Active Area 210.432(H)×157.824(V) mm
Outline Dim. 228(H)×178.5(V) mm
Luminance 320 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
Response Time 3/15 (Typ.)(Tr/Td)
Viewing Angle 80/80/80/80 (Typ.)(CR≥10) Left / Right / Up / Down
Operating Mode TN, Normally White, Transmissive
Support Color 262K/16.7M 40% NTSC
Light Source WLED [2 strings] , 70K hours , W/O Driver
Weight 500g (Typ.)
Designed For Industrial
Frame Rate 60Hz
Touch Panel 4-wire Resistive Touch, F/G
Interface Type LVDS (1 ch, 6/8-bit) , 20 pins Connector
Power Supply 3.3V (Typ.)
Environment Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C
