Content last revised on November 5, 2024
Panel Brand NLT
Panel Size 10.4 inch
Resolution 1024(RGB)×768, XGA, 123PPI
Display Area 210.4(W)×157.8(H) mm
Outline Size 231.2(W)×174.6(H) ×5.8(D) mm
Brightness 150 cd/m² (Typ.)
Viewing Angle 45/45/40/20 (Typ.)(CR≥10)
Display Colors 262K/16.7M
Frequency 60Hz
Weight 196g (Typ.)

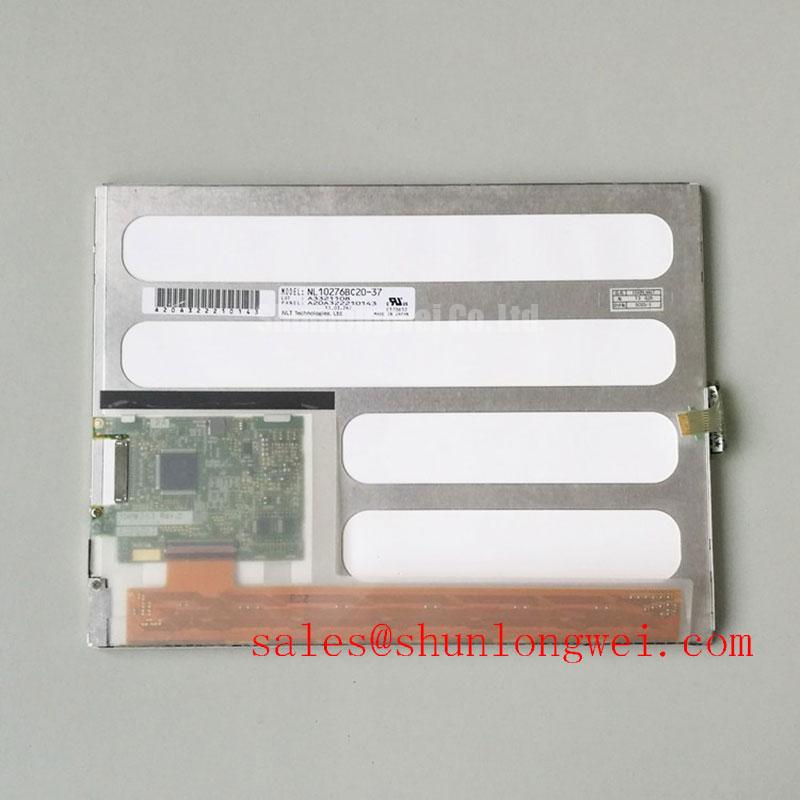

Panel Model NL10276BC20-37
Panel Type a-Si TFT-LCD , LCM
Pixel Format RGB Vertical Stripe
Surface Clear
Contrast Ratio 400:1 (Typ.) (TM)
Display Mode TN, Normally White, Transmissive
Response Time 3/15 (Typ.)(Tr/Td)
Lamp Type WLED , Without Driver
Touch Screen Without
Application Industrial
Signal Interface LVDS (1 ch, 6/8-bit) Connector
Input Voltage 3.3V (Typ.)
Environment Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C
