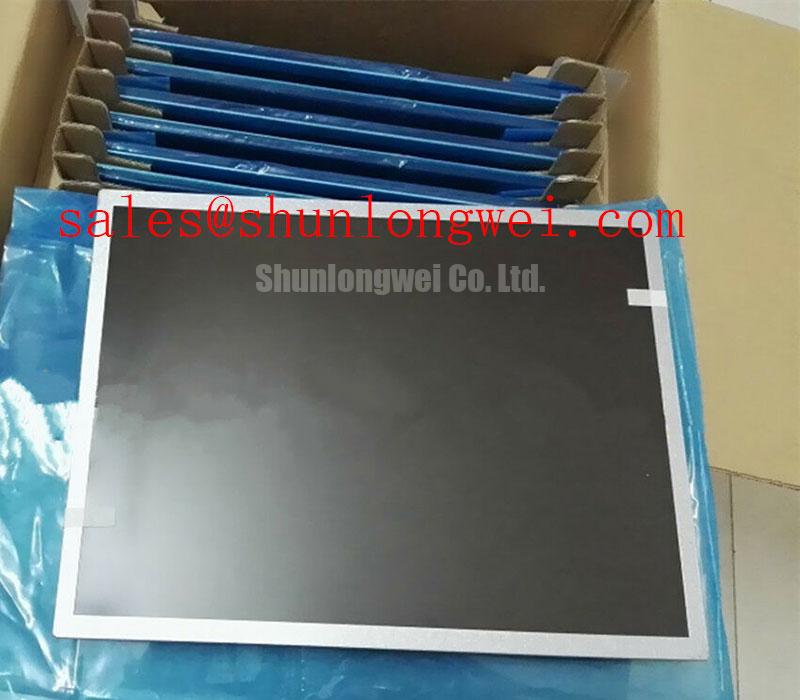

Sell NEC NL10276BC24-21BH New Stock

NL10276BC24-21BH NEC 12.1Inch LCM 1024×768 890 80/80/80/80 262K/16.7M WLED LVDS;
  • Part Number:

    NL10276BC24-21BH

  • Category:

    LCD Display

  • Manufacturer:

    NEC

  • Packaging:

    New LCD

  • Data Code:

    2020+

  • Qty Available:

    56

Whatsapp / Wechat ID: +8618924651869
Email us: sales@shunlongwei.com
inquiry now
#NL10276BC24-21BH NEC NL10276BC24-21BH New NL10276BC24-21BH NEC 12.1Inch LCM 1024×768 890 80/80/80/80 262K/16.7M WLED LVDS, NL10276BC24-21BH pictures, NL10276BC24-21BH price, #NL10276BC24-21BH supplier
-------------------------------------------------------------------
Email: sales@shunlongwei.com

-------------------------------------------------------------------
Manufacturer NEC
Model Name NL10276BC24-21BH
Screen Size 12.1 inch
Screen Type LCM ,   a-Si TFT-LCD
Pixel Number 1024(RGB)×768   (XGA)  105PPI
Arrangement RGB Vertical Stripe
Active Area(mm) 245.76 × 184.32 (H×V)
Outline(mm) 260.5 × 203 × 11 (H×V×D)
Bezel Area(mm) 249.0 × 187.5 (H×V)
Treatment Antiglare, Hard coating (2H)
Luminance 890 cd/m² (Typ.)
Viewing Angle 80/80/80/80 (Typ.)(CR≥10) Left / Right / Up / Down
Response 3/15 (Typ.)(Tr/Td) ms
Good View at 6 o'clock Work Mode TN, Normally White, Transmissive [Panelook copyright, copy is strictly prohibited]
IPS Family: AAS, ADS, AHVA, FFS, IPS, New Mode2, PLS, SFT, Vistarich
VA Family: ASV, HVA, MVA, PVA, SVA, UV²A, VA
Color Depth 262K/16.7M   40% NTSC
Backlight 5 strings WLED , 60K hours , Optional
Mass TBD
Used for Industrial Outdoor High Brightness
Refresh Rate 60Hz  [Panelook copyright, copy is strictly prohibited]
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC Circuit Touchscreen PCAP, Air Bonding
Signal Type LVDS (1 ch, 6/8-bit) , 20 pins Connector
Voltage Supply 3.3V (Typ.)
Max. Ratings Storage Temp.: -30 ~ 80 °C    Operating Temp.: -30 ~ 50 °C    ; Vibration Level: 2.0G (19.6 m/s²)
NL10276BC24-21BH inverter, NL10276BC24-21BH power supply, NL10276BC24-21BH electronic board, NL10276BC24-21BH VGA board, NL10276BC24-21BH touchscreen available.

Shunlongwei Inspected Every NL10276BC24-21BH Before Ship, All NL10276BC24-21BH with 6 months warranty.
