Content last revised on November 7, 2024
Manufacturer NEC

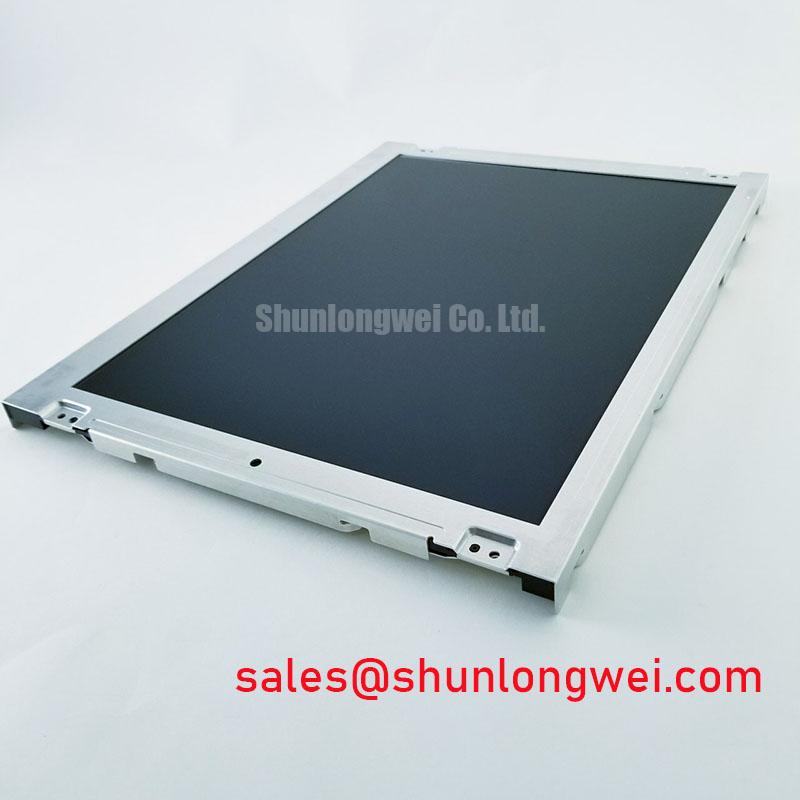

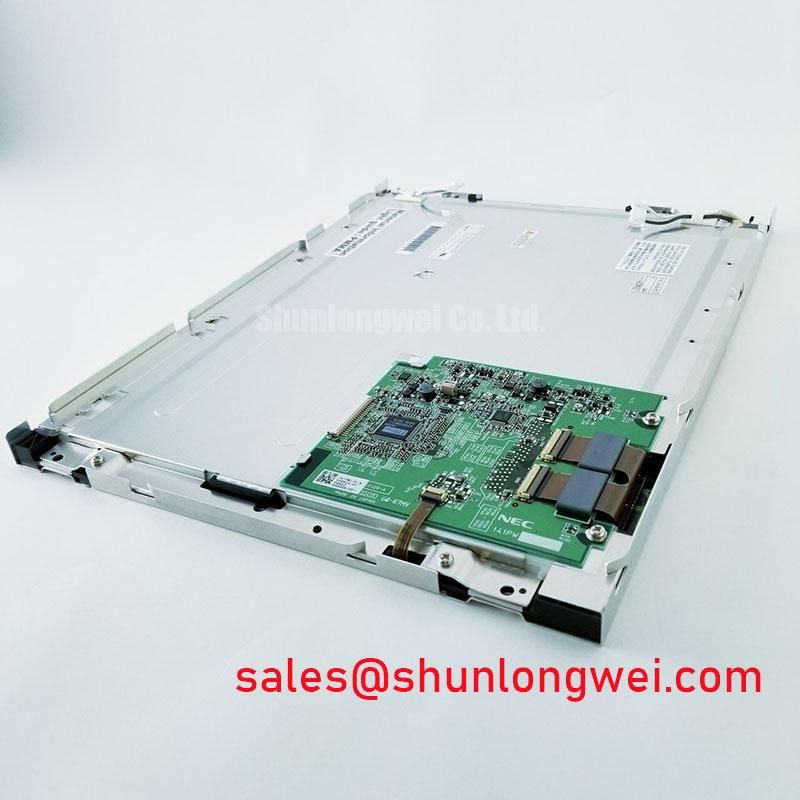

Model Name NL10276BC28-03
Screen Size 14.1 inch
Screen Type LCM, a-Si TFT-LCD
Pixel Number 1024(RGB)×768 (XGA) 91PPI
Arrangement RGB Vertical Stripe
Active Area(mm) 285.696 × 214.272 (H×V)
Outline(mm) 330 × 255 × 18.5 (H×V×D)
Bezel Area(mm) 290.4 × 219.0 (H×V)Treatment-
Luminance 200 cd/m² (Typ.)
Contrast Ratio 150 : 1 (Typ.) (TM)
Viewing Angle 50/50/20/35 (Typ.)(CR≥10) Left / Right / Up / Down
Response 11/40 (Typ.)(Tr/Td) ms
Good View at 6 o'clock
Work Mode TN, Normally White, Transmissive
Color Depth 262K 40% NTSC
Backlight 2 pcs CCFL , No Driver
Mass 1.15/1.30Kgs (Typ./Max.)
Used for Desktop Monitor
Refresh Rate 60Hz
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC Circuit
Touchscreen Without
Signal Type LVDS (1 ch, 6-bit) , 20 pins Connector
Voltage Supply 5.0V (Typ.)
Max. Ratings Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C ; Vibration Level: 2.0G (19.6 m/s²)
