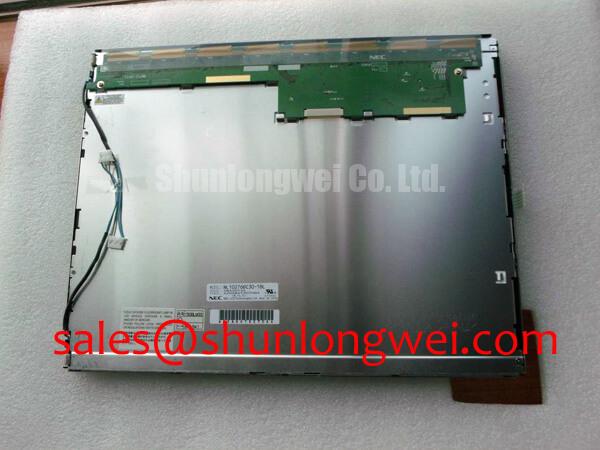

#NEC, #NL10276BC30_18L, #LCD_Display, #LCD, NL10276BC30-18L NLT 15.0 inch Panel 1024×768 270 500:1 80/80/80/60 16.7M CCFL LVDS ;

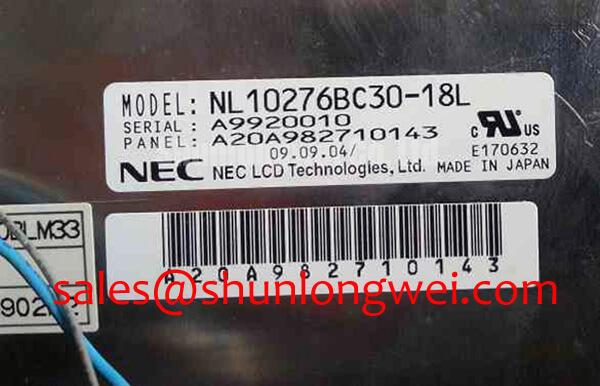

Panel Brand :NEC NL10276BC30-18L
Panel Model : NL10276BC30-18L
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 15.0 inch
Resolution : 1024(RGB)×768 , XGA
Display Mode : TN, Normally White, Transmissive
Active Area : 304.128×228.096 mm
Outline : 326.5×253.5×17 mm
Surface : Antiglare, Hard coating (3H)
Brightness : 270 cd/m² (Typ.)
Contrast Ratio : 500:1 (Typ.)
Display Colors : 16.7M (6-bit + Hi-FRC) , CIE1931 40%
Response Time : 4/14 (Typ.)(Tr/Td)
Viewing Angle : 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 2 pcs CCFL Without Driver
Signal Interface : LVDS (1 ch, 8-bit) , 20 pins
Input Voltage : 3.3V (Typ.)
NL10276BC30-18L inverter, NL10276BC30-18L power supply, NL10276BC30-18L electronic board, NL10276BC30-18L VGA board, NL10276BC30-18L touchscreen available.
