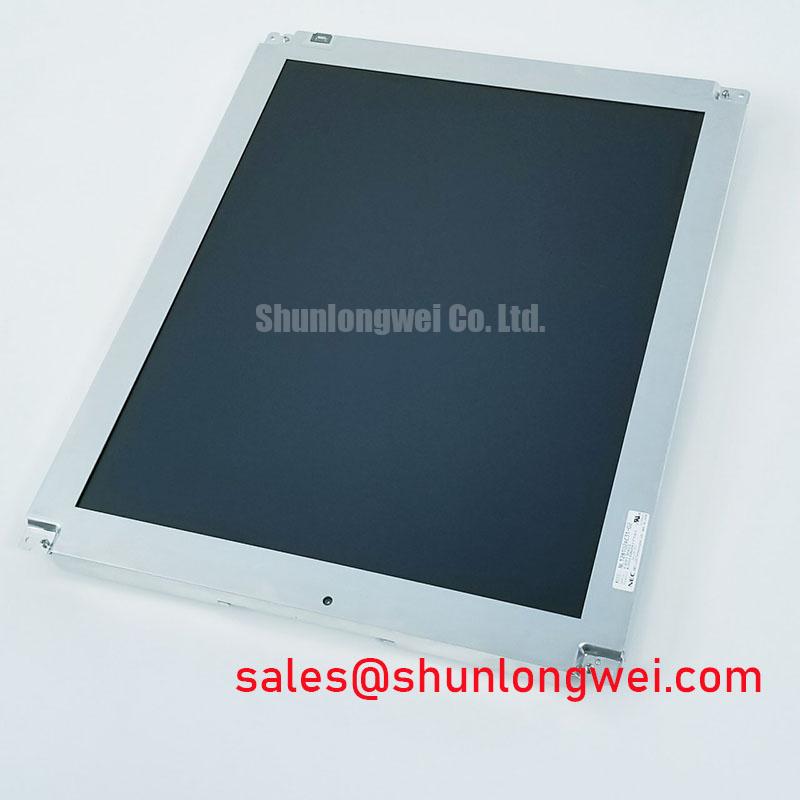

NEC NL128102AC31-02 LCD Display

Brand NEC

Model NL128102AC31-02

Diagonal Size 20.1 inch

Type a-Si TFT-LCD, LCM

Pixel Format 1280(RGB)×1024  [SXGA]  81PPI

Configuration RGB Vertical Stripe

Active Area 399.36(H)×319.488(V) mm

Outline Dim. 470(H)×382(V) ×42.5(D) mm

Bezel Area 404.8(H)×325.0(V) mm

Treatment Hard coating (3H), Antireflection

Luminance 250 cd/m² (Typ.)

Contrast Ratio 300:1 (Typ.) (TM)

View Direction Symmetry

Response Time 30/23 (Typ.)(Tr/Td)

Viewing Angle 85/85/85/85 (Typ.)(CR≥10) Left / Right / Up / Down

Operating Mode Normally Black, Transmissive

Support Color 16.7M   60% NTSC

Light Source CCFL  [12 pcs] , With Inverter

Weight 2.32Kgs (Typ.)

Designed For Desktop Monitor

Frame Rate 60Hz

120Hz (60HZ Input) : Embedded MEMC Circuit

120Hz+120Hz : 120Hz Panel+120Hz Backlight

240Hz (60HZ Input) : Embedded MEMC Circuit

Touch Panel Without

Interface Type LVDS (2 ch, 8-bit) , 50 pins Connector

Power Supply 12.0V (Typ.)

Environment Operating Temperature: 0 ~ 55 °C ; Storage Temperature: -20 ~ 60 °C
