Content last revised on March 25, 2025

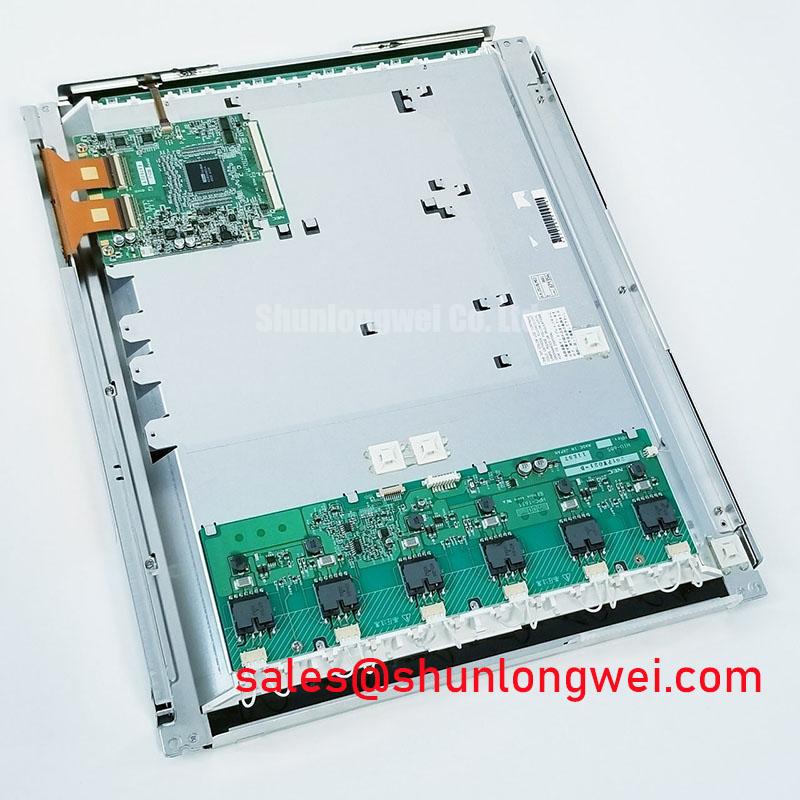

Brand NEC
Model NL128102AC31-02E
Diagonal Size 20.1 inch
Type a-Si TFT-LCD, LCM
Pixel Format 1280(RGB)×1024 [SXGA] 81PPI
Configuration RGB Vertical Stripe
Active Area 399.36(H)×319.488(V) mm
Outline Dim. 470(H)×382(V) mm
Bezel Area 404.8(H)×325.0(V) mm
Treatment Antireflection
Luminance 250 cd/m² (Typ.)
Contrast Ratio 300:1 (Typ.) (TM)
View Direction Symmetry
Response Time 30/23 (Typ.)(Tr/Td)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) Left / Right / Up / Down
Operating Mode Normally Black, Transmissive
Support Color 16.7M 60% NTSC
Light Source CCFL [12 pcs] , With Inverter
Weight 2.32/2.43Kgs (Typ./Max.)
Designed For Desktop Monitor
Frame Rate 60Hz
Touch Panel Without
Interface Type LVDS (2 ch, 8-bit) , 50 pins Connector
Power Supply 12.0V (Typ.)
Environment Operating Temperature: 0 ~ 55 °C ; Storage Temperature: -20 ~ 60 °C
