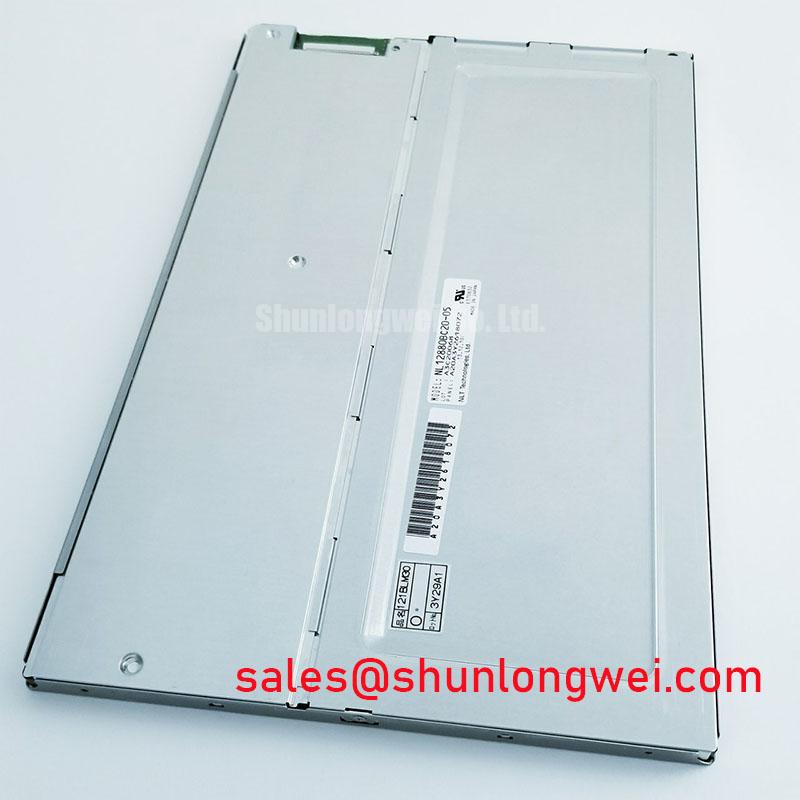

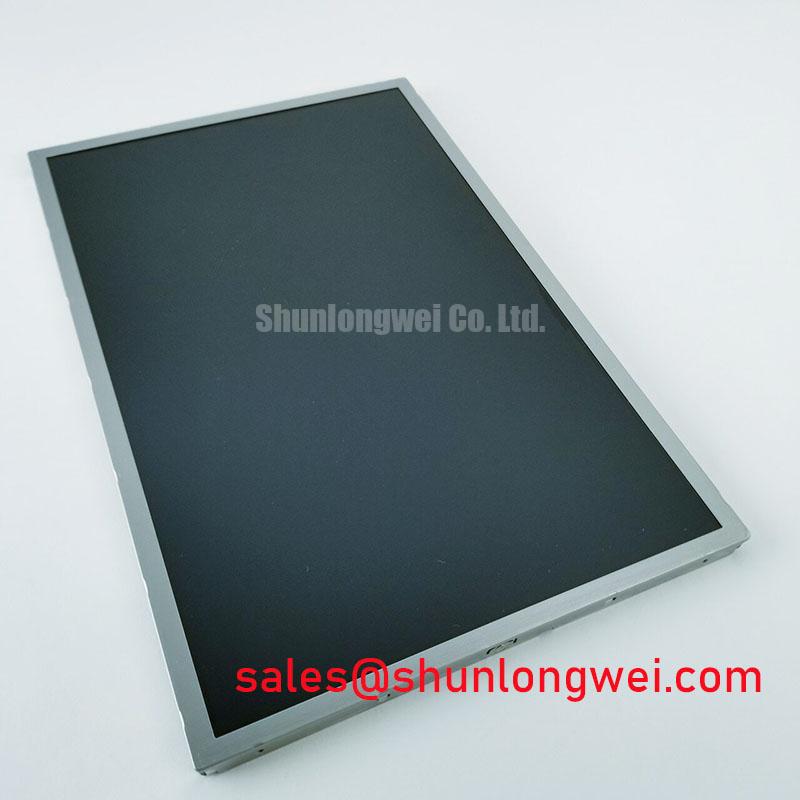

Sell NL12880BC20-25F, #NEC #NL12880BC20-25F Stock, NL12880BC20-25F NLT 12.1inch LCM 1280×800 1600 800:1 80/80/80/80 262K/16.7M WLED LVDS;, #LCD_Display, #LCD, #NL12880BC20_25F
Email: sales@shunlongwei.com
URL:
https://www.slw-ele.com/nl12880bc20-25f.html
- Brand: NLT (NEC LCD Technologies)
- Model: P/N NL12880BC20-25F
- Diagonal Size: 12.1 inches
- Panel Type: Amorphous Silicon (a-Si) Thin-Film Transistor Liquid Crystal Display (TFT-LCD)
- Resolution: 1280 x 800 pixels, providing a pixel density of 124 pixels per inch (PPI)
- Pixel Format: RGB Vertical Stripe
- Active Area: The display's active area measures 261.12 mm in width and 163.2 mm in height
- Bezel Opening: The opening in the frame for the screen is 266.1 mm in width and 168.2 mm in height
- Outline Dimensions: The physical dimensions of the panel are 277.7 mm in width, 180.6 mm in height, and 9.2 mm in depth
- Surface: The panel surface features an antiglare treatment and has a hard coating with a hardness rating of 3H
- Brightness: The typical luminance (brightness) of the panel is 1600 cd/m² (candelas per square meter)
- Contrast Ratio: The typical contrast ratio is 800:1
- Viewing Angle: The typical viewing angles are 80 degrees in all directions (left, right, up, and down) when the contrast ratio is greater than or equal to 10
- Display Mode: This panel is of the TN (Twisted Nematic) type and is normally white and transmissive
- Support Color: The panel supports 262,000 colors (262K) and has an extended color depth of 16.7 million colors (16.7M). It covers 50% of the NTSC color gamut
- Lamp Type: The panel is equipped with a WLED (White Light Emitting Diode) backlight using 3 strings. It has a rated lifespan of 60,000 hours and does not require an external driver
- Frequency: The standard refresh rate for this panel is 60Hz
- Touch Screen: This panel does not feature a touchscreen
- Panel Weight: The weight of the panel is approximately 470 grams (Typical)
- Signal Interface: It uses LVDS (Low Voltage Differential Signaling) with a 1-channel configuration and connects via a 20-pin connector
- Input Voltage: The typical input voltage for this panel is 3.3V
- Environment: The panel is designed to operate in a temperature range from -20 to 70°C, with a storage temperature from -30 to 80°C, and it is rated to withstand a vibration level of 2.0G (19.6 m/s²)
