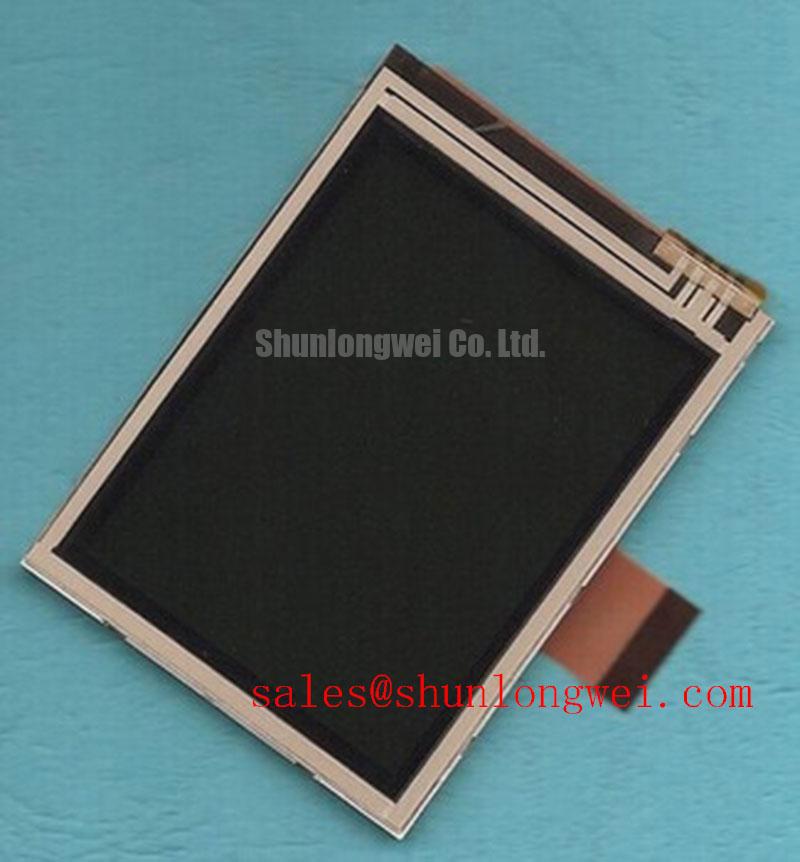

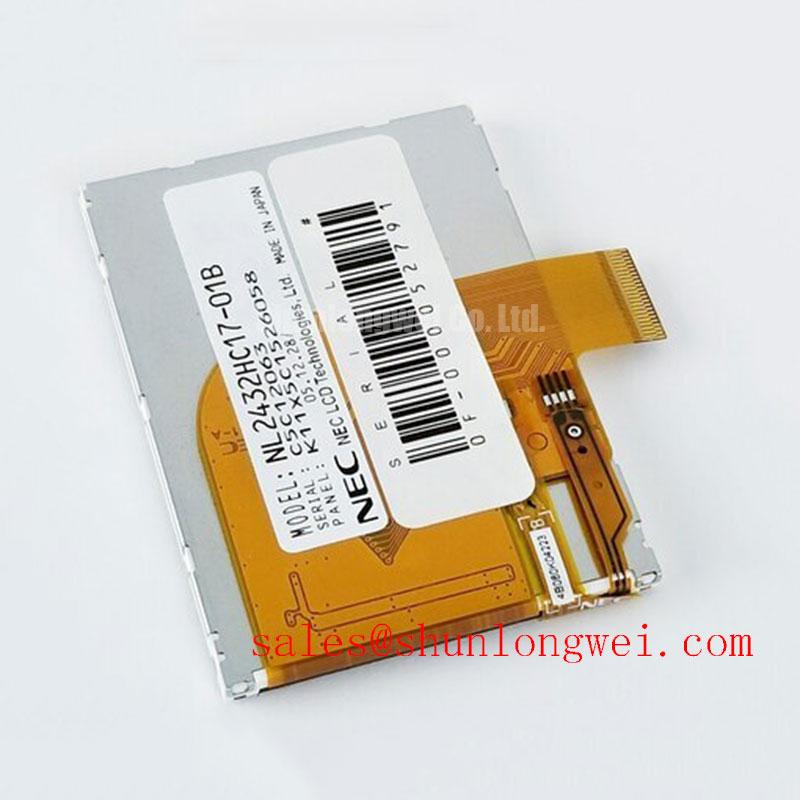

NEC NL2432HC17-01 LCD Display

Manufacturer NEC

Model Name NL2432HC17-01

Screen Size 2.7 inch

Screen Type LCM ,   a-Si TFT-LCD

Pixel Number 240(RGB)×320   (QVGA)  148PPI

Arrangement RGB Vertical Stripe

Active Area(mm) 41.04 × 54.72 (H×V)

Outline(mm) 50.54 × 68.62 (H×V×D)

Treatment Clear

Luminance 180 cd/m² (Typ.)

Contrast Ratio 400 : 1 (Typ.) (TM)

Viewing Angle 40/40/50/20 (Typ.)(CR≥10) Left / Right / Up / Down

Response 23 (Typ.)(Tr+Td) ms

Work Mode TN, Transmissive

Color Depth 262K

Backlight WLED

Mass 28.0g (Typ.)

Used for Handheld & PDA

Touchscreen Embeded Touch

Signal Type CMOS (1 ch, 6-bit)

Voltage Supply 3.0/5.0/15.0/-15.0V (Typ.)(VCC/VDD/VGON/VGOFF)

Max. Ratings Storage Temp.: -20 ~ 70 °C    Operating Temp.: -10 ~ 55 °C
