Manufacturer NEC

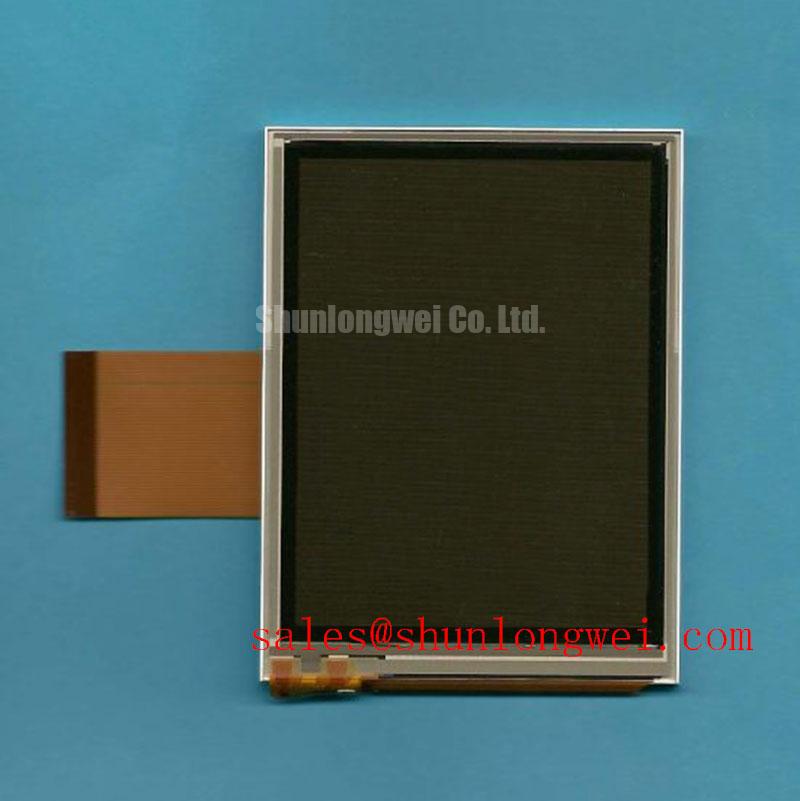

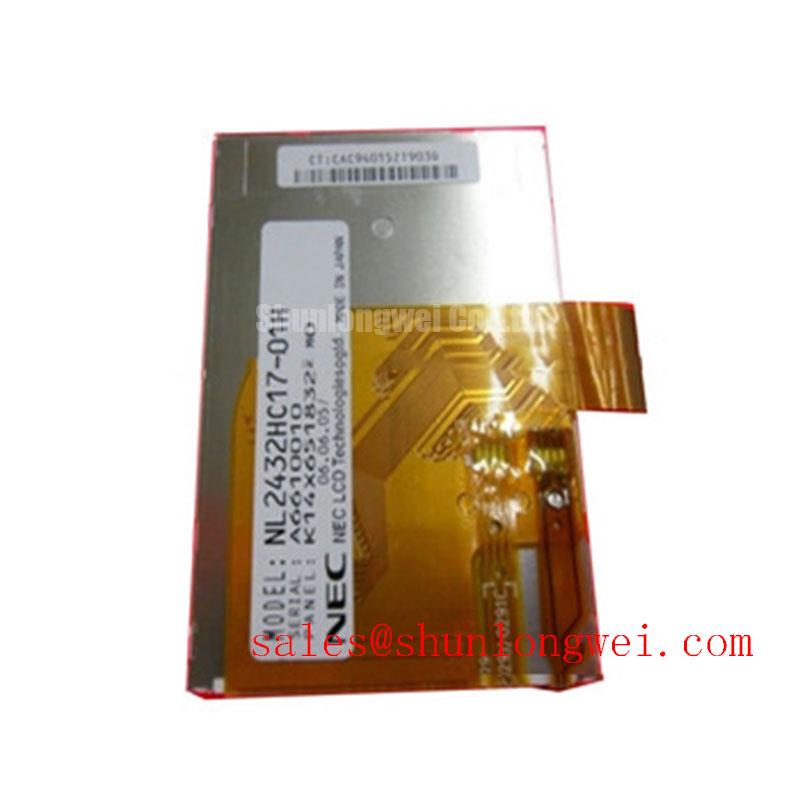

Model Name NL2432HC17-01H
Screen Size 2.7 inch
Screen Type LCM , a-Si TFT-LCD
Pixel Number 240(RGB)×320 (QVGA) 148PPI
Arrangement RGB Vertical Stripe
Active Area(mm) 41.04 × 54.72 (H×V)
Outline(mm) 50.54 × 68.62 (H×V×D)
Treatment Clear
Luminance 180 cd/m² (Typ.)
Contrast Ratio 400 : 1 (Typ.) (TM)
Viewing Angle 40/40/50/20 (Typ.)(CR≥10) Left / Right / Up / Down
Response 23 (Typ.)(Tr+Td) ms
Work Mode TN, Transmissive
Color Depth 262K
Backlight WLED
Mass 28.0g (Typ.)
Used for Handheld & PDA
Touchscreen Embeded Touch
Signal Type CMOS (1 ch, 6-bit)
Voltage Supply 3.0/5.0/15.0/-15.0V (Typ.)(VCC/VDD/VGON/VGOFF)
Max. Ratings Storage Temp.: -20 ~ 70 °C Operating Temp.: -10 ~ 55 °C
