Content last revised on November 2, 2024

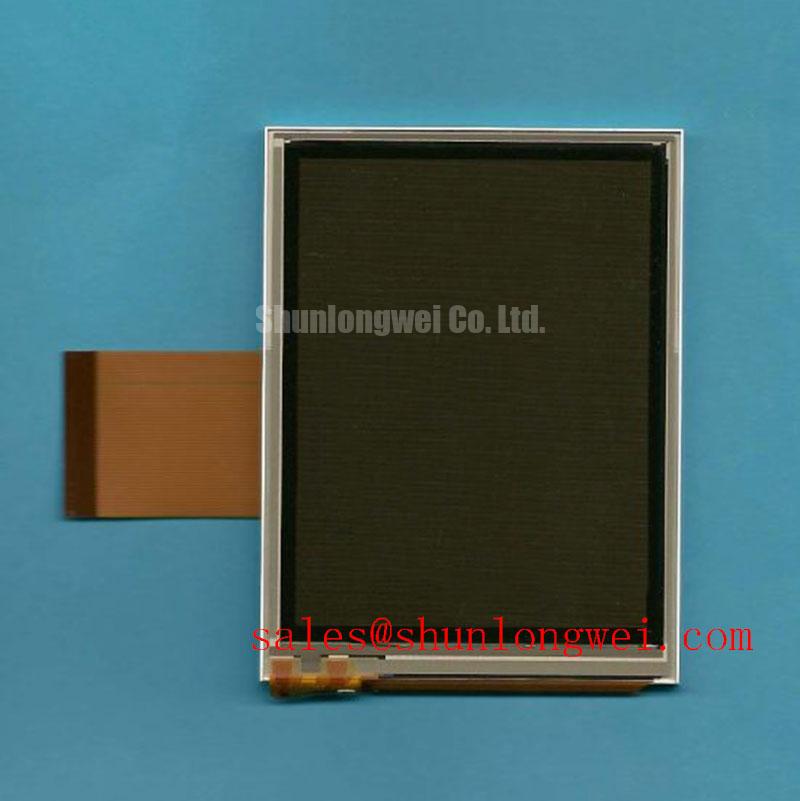

Panel Brand NEC
Panel Model NL2432HC17-02B
Panel Size 2.7"
Panel Type a-Si TFT-LCD, LCM
Resolution 240(RGB)×320, QVGA, 148PPI
Pixel Format RGB Vertical Stripe
Display Area 41.04(W)×54.72(H) mm
Outline Size 50.54(W)×68.62(H) mm
Surface Clear
Brightness 200 cd/m² (Typ.)
Contrast Ratio 400:1 (Typ.) (TM)
Viewing Angle 40/40/50/20 (Typ.)(CR≥10) Left / Right / Up / Down
Display Mode TN, Transmissive
Response Time 23 (Typ.)(Tr+Td)
Display Colors 262K
Lamp Type WLED
Panel Weight 23.0g (Typ.)ApplicationHandheld & PDA
Signal Interface CMOS (1 ch, 6-bit)
Input Voltage 3.0/5.0/15.0/-15.0V (Typ.)(VCC/VDD/VGON/VGOFF)
Environment Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C
