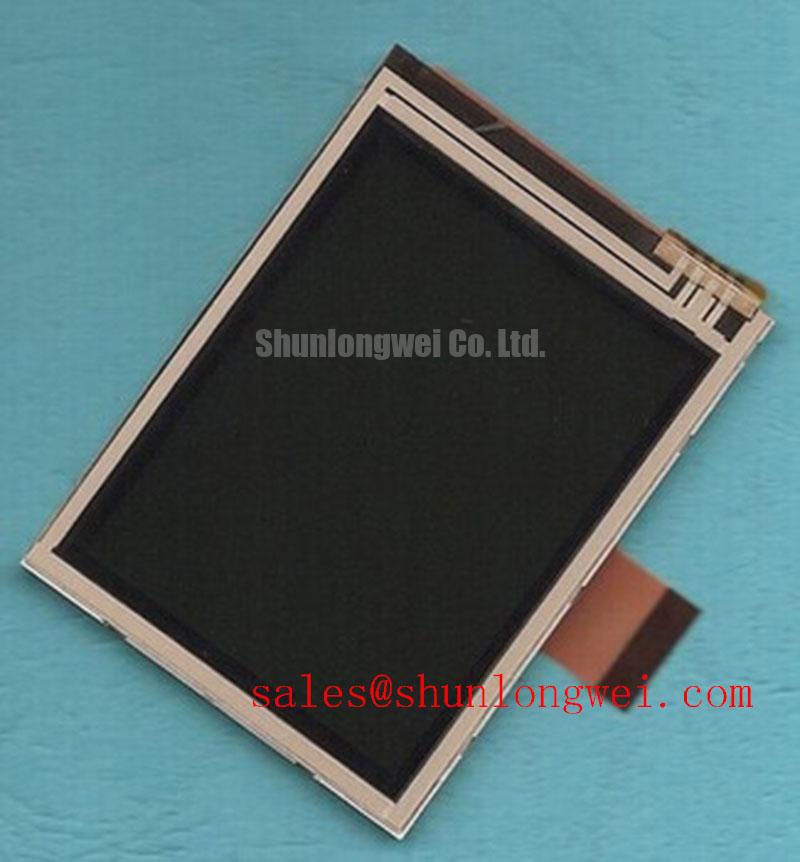

NEC NL2432HC17-07A LCD Display

Brand NEC

Model NL2432HC17-07A

Diagonal Size 2.7 inch

Type a-Si TFT-LCD, LCM

Pixel Format 240(RGB)×320  [QVGA]  148PPI

Configuration RGB Vertical Stripe

Active Area 41.04(H)×54.72(V) mm

Outline Dim 50.54(H)×68.62(V) mm

Bezel Area 43.44(H)×57.12(V) mm

Treatment Clear, Hard coating (3H)

Luminance 550 cd/m² (Typ.)

Contrast Ratio 400:1 (Typ.) (TM)

View Direction 12 o'clock

Response Time 8/15 (Typ.)(Tr/Td)

Viewing Angle 50/50/60/30 (Typ.)(CR≥10) Left / Right / Up / Down

Operating Mode TN, Normally White, Transmissive

Support Color 262K   50% NTSC

Light Source WLED

Weight 19.0/21.0g (Typ./Max.)

Designed For Handheld & PDA

Frame Rate 60Hz

Touch Panel Without

Interface Type CMOS (1 ch, 6-bit) + SPI , 45 pins FPC

Power Supply 3.0V (Typ.)

Environment Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²)
