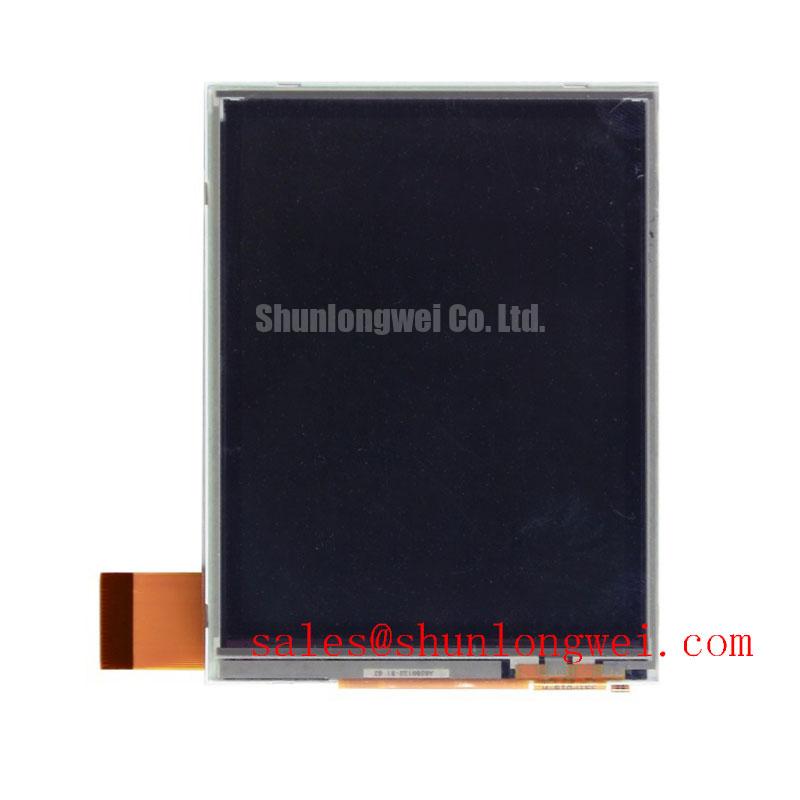

NEC NL2432HC22-41K | Reliable 3.5” QVGA Display for Industrial & Medical Devices
The NEC NL2432HC22-41K is not just another display; it's a testament to engineering for longevity and reliability. This 3.5-inch QVGA (240x320) TFT-LCD module is a workhorse component, specifically designed for industrial and medical applications where consistent performance and long-term availability are non-negotiable. For designers of handheld diagnostic tools, specialized HMI panels, or legacy systems requiring a dependable visual interface, the NL2432HC22-41K delivers stability and clarity in a compact, easy-to-integrate package.
Technical Deep Dive: Where Reliability is Engineered
The true value of the NEC NL2432HC22-41K lies in its design philosophy, which prioritizes operational robustness over superfluous features. This focus translates into tangible benefits for system designers.
- Integrated WLED Backlight System: This model incorporates a high-efficiency white LED backlight complete with its own integrated driver. This strategic integration simplifies your design process significantly. It eliminates the need for sourcing and qualifying a separate driver, reduces PCB footprint, and minimizes the risk of EMI issues often associated with external LCD backlight driving circuits. The result is a faster design cycle and a more reliable end product.
- Industrial-Grade Operational Range: Engineered to perform flawlessly in real-world conditions, the NL2432HC22-41K features a wide operating temperature range of -10°C to 60°C. This ensures stable, readable output whether the device is used in a temperature-fluctuating factory setting, a portable field instrument, or a tightly enclosed medical device.
Application Scenarios: Solving Specific Industry Challenges
The versatility of the NEC NL2432HC22-41K allows it to excel in various demanding environments by directly addressing key industry pain points.
- Handheld Diagnostic and Test Equipment: In devices like multimeters, environmental sensors, or medical readers, every component must be reliable and power-efficient. The NL2432HC22-41K provides a clear, crisp display for critical data readouts in a form factor that is ideal for portable, battery-powered applications.
- Industrial Control Panels (HMI): For machine controllers and process automation interfaces, uptime is paramount. This display's proven reliability and long product lifecycle reduce the risk of costly line-down situations due to screen failure, ensuring operators have a consistent and dependable interface.
- Legacy System Upgrades: Finding a form, fit, and function replacement for aging displays can be a major engineering challenge. The NL2432HC22-41K, with its standard 3.5" size and CMOS interface, often serves as a seamless drop-in upgrade, extending the life of valuable equipment without requiring a complete system redesign.
- Point-of-Sale (POS) and Kiosk Terminals: The compact size and clear readability make it an excellent choice for operator-facing displays in retail or hospitality, where space is at a premium and reliability directly impacts business operations.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Model | NL2432HC22-41K |
| Display Size | 3.5 inch |
| Resolution | 240(RGB) x 320 (QVGA) |
| Technology | a-Si TFT-LCD, Transmissive |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 300:1 (Typ.) |
| Interface Type | CMOS (1 ch, 6-bit), 54 pins FPC |
| Operating Temperature | -10 ~ 60 °C |
| Backlight | WLED with Integrated Driver |
| Backlight Lifetime | 20,000 Hours (Min.) |
For a complete list of parameters, please refer to the official NL2432HC22-41K Datasheet.
Selection Guidance: TN vs. Modern IPS in Industrial Context
As a TN (Twisted Nematic) panel, the NL2432HC22-41K has more focused viewing angles compared to modern IPS displays. While an IPS panel is superior for applications requiring wide, multi-viewer angles, the NEC NL2432HC22-41K is the strategically smarter choice when the primary viewing axis is direct and system longevity is the priority. It offers a highly cost-effective and proven solution for dedicated operator interfaces, where its robustness and long-term supply stability outweigh the need for off-axis color consistency. It is an ideal example of a purpose-built industrial LCD module designed for function-critical roles.
Frequently Asked Questions
- What does the integrated backlight driver mean for my design?
It means you can drive the backlight with a simple DC voltage, saving you the complexity and board space of an external boost converter or constant current circuit. This simplifies both hardware design and firmware control. - Is this display a good fit for a new, high-performance product?
While excellent for reliability-focused applications, for new designs requiring premium image quality and wide viewing angles (e.g., high-end medical imaging), you might consider a modern IPS panel. However, for most industrial control and portable test equipment, the NL2432HC22-41K remains an outstanding and pragmatic choice. Explore our full range of industrial LCDs for more options. - How does the CMOS interface compare to LVDS or MIPI?
The parallel CMOS interface is straightforward and requires less complex driver circuitry than high-speed serial interfaces like LVDS or MIPI. It is ideal for lower-resolution displays like this QVGA panel and is well-supported by a wide range of microcontrollers and display controllers.
For specific application advice or to discuss volume pricing for the NEC NL2432HC22-41K, please Contact Us for a Quote. Our team of specialists is ready to help you select the right display for your project.
