Brand NEC

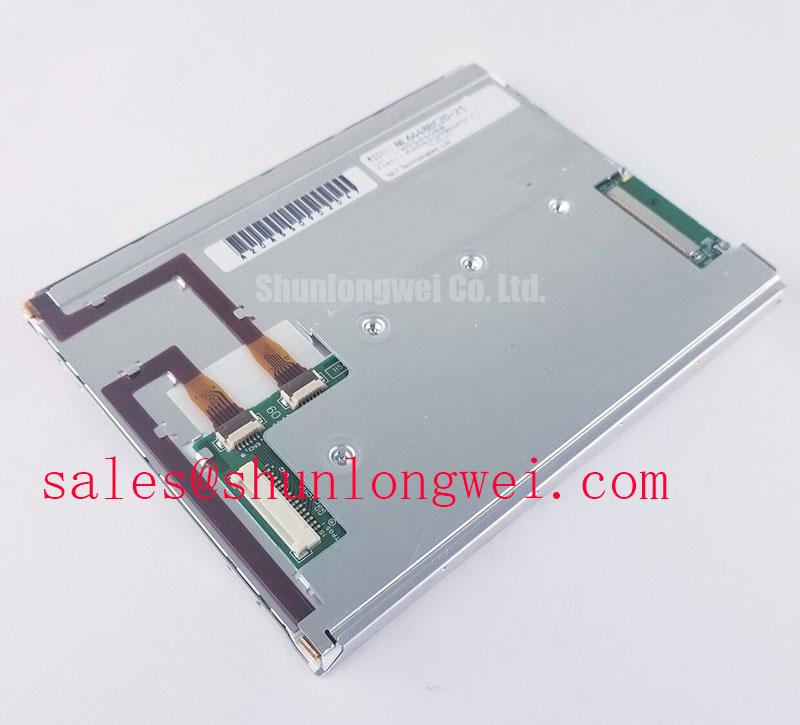

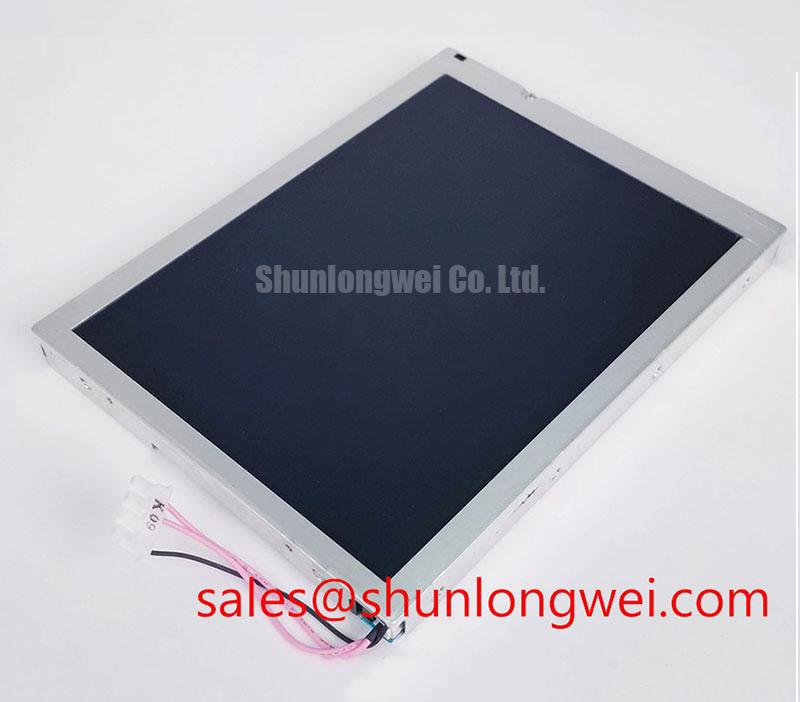

Model NL6448BC20-12Y
Diagonal Size 6.5 inch
Type a-Si TFT-LCD, LCM
Pixel Format 640(RGB)×480 [VGA] 122PPI
Configuration RGB Vertical Stripe
Active Area 132.48(H)×99.36(V) mm
Outline Dim 178.8(H)×126.8(V) mm
Bezel Area 141.5(H)×105.6(V) mm
Treatment Antiglare, Hard coating (2H)
Luminance 300 cd/m² (Typ.)
Contrast Ratio 250:1 (Typ.) (TM)
View Direction 6 o'clock
Response Time 13/36 (Typ.)(Tr/Td)
Viewing Angle 50/50/35/45 (Typ.)(CR≥10) Left / Right / Up / Down
Operating Mode TN, Normally White, Transmissive
Support Color 262K 42% NTSC
Light Source CCFL [2 pcs] , W/O Driver
Frame Rate 60HzTouch PanelWithout
Interface Type CMOS (1 ch, 6-bit) , 31 pins Connector
Power Supply 3.3/5.0V (Typ.)(VCC)
Environment Operating Temperature: 0 ~ 60 °C ; Storage Temperature: -25 ~ 70 °C
