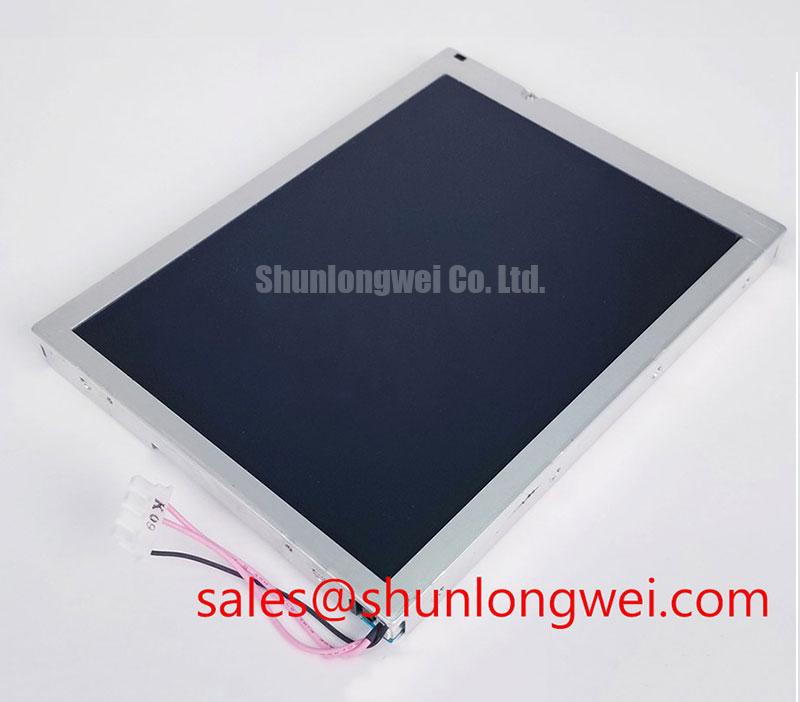

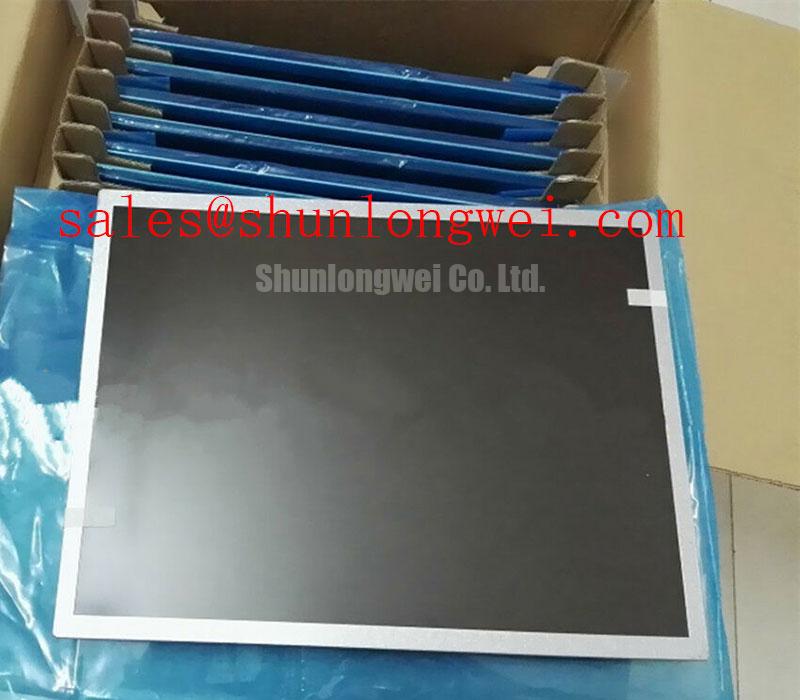

NEC NL6448BC20-30JF LCD Display

Panel Brand NEC

Panel Model NL6448BC20-30JF

Panel Size 6.5"

Panel Type a-Si TFT-LCD , LCM

Resolution 640(RGB)×480, VGA, 122PPI

Pixel Format RGB Vertical Stripe

Display Area 132.48(W)×99.36(H) mm

Bezel Opening 135.5(W)×102.4(H) mm

Outline Size 153(W)×118(H) mm

Surface Anti Fingerprint + Clear

Brightness 950 cd/m² (Typ.)

Contrast Ratio 800:1 (Typ.) (TM)

Viewing Angle 80/80/80/80 (Typ.)(CR≥10)

Display Mode TN, Normally White, Transmissive

Response Time 3/15 (Typ.)(Tr/Td)

Display Colors 262K/16.7M   40% NTSC

Lamp Type 4 strings WLED , 70K hours , Optional

Frequency 60Hz

Touch Screen PCAP, Optical Bonding

Weight210g (Typ.)Application

Application Application

Signal InterfaceLVDS (1 ch, 6/8-bit) , 20 pins Connector

Input Voltage3.3V (Typ.)

EnvironmentOperating Temp: -30 ~ 80 °C ; Storage Temp: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²)

NL6448BC20-30JF inverter, NL6448BC20-30JF power supply, NL6448BC20-30JF electronic board, NL6448BC20-30JF VGA board, NL6448BC20-30JF touchscreen available.
