Brand NEC

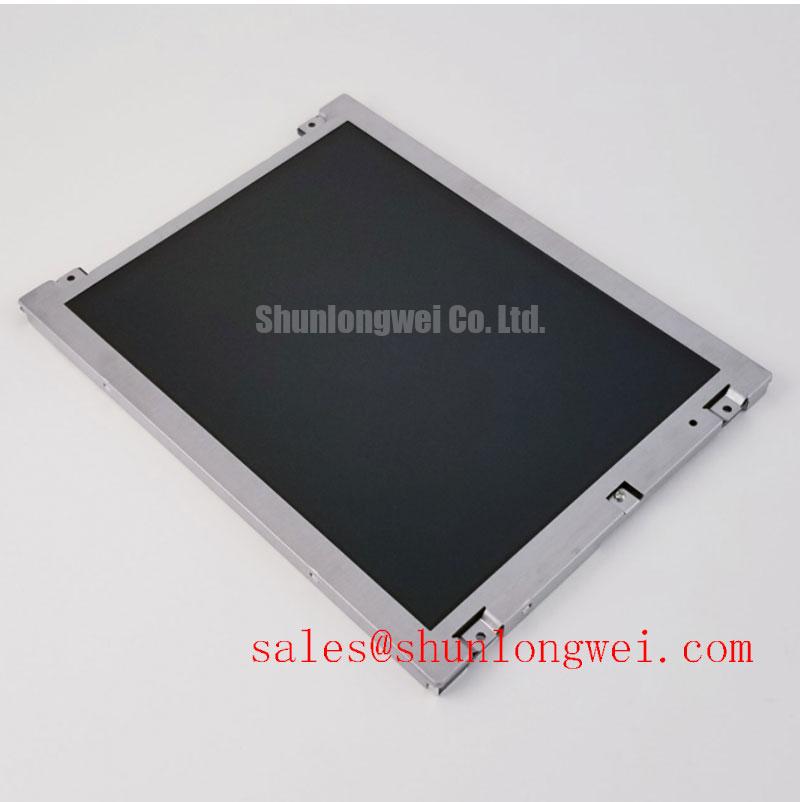

Model NL6448BC26-30D
Diagonal Size 8.4 inch
Type a-Si TFT-LCD , LCM
Pixel Format 640(RGB)×480 [VGA] 95PPI
Configuration RGB Vertical Stripe
Active Area 170.88(H)×128.16(V) mm
Outline Dim. 200(H)×152(V) ×8.7(D) mm
Bezel Area 174.0(H)×131.4(V) mm
Treatment Antiglare, Hard coating (3H)
Luminance 500 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Response Time 3/15 (Typ.)(Tr/Td)
Viewing Angle 80/80/80/80 (Typ.)(CR≥10)
Operating Mode TN, Normally White, Transmissive
Support Color 262K/16.7M 40% NTSC
Light Source WLED [3 strings] , 70K hours , W/O Driver
Weight 260/280g (Typ./Max.)
Designed For Industrial
Frame Rate 60Hz
Touch Panel Without
Interface Type LVDS (1 ch, 6/8-bit) 20 pins Connector
Power Supply 3.3V (Typ.)
Environment Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²)
