Panel Brand NEC
Panel Size 10.4"
Resolution 640(RGB)×480, VGA, 76PPI
Display Area 211.2(W)×158.4(H) mm
Outline Size 243(W)×185.1(H) ×11.5(D) mm
Brightness 250 cd/m² (Typ.)
Viewing Angle 75/55/40/55 (Typ.)(CR≥10)
Best View on 6 o'clock
Display Colors 262K 50% NTSC
Frequency 60Hz
Weight 560/590g (Typ./Max.)

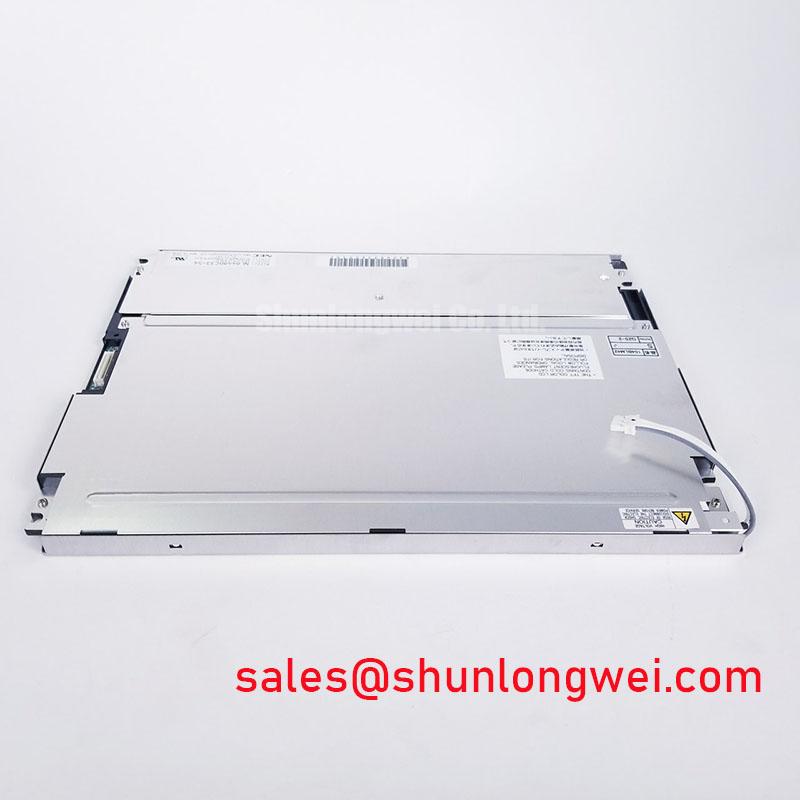

Panel Model NL6448BC33-50E
Panel Type a-Si TFT-LCD , LCM
Pixel Format RGB Vertical Stripe
Bezel Opening 215.4(W)×161.8(H) mm
Surface Clear, Hard coating (2H), Antireflection
Contrast Ratio 100:1 (Typ.) (TM) 8:1 (Typ.) (RF)
Display Mode TN, Normally White, Transflective
Response Time 5/20 (Typ.)(Tr/Td)
Lamp Type 2 pcs CCFL , Without Driver
Touch Screen Without
Application Industrial
Signal Interface CMOS (1 ch, 6-bit) , 31 pins Connector
Input Voltage 3.3/5.0V (Typ.)(VCC)
Environment Operating Temp.: 0 ~ 65 °C ; Storage Temp.: -20 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²)
