Content last revised on December 18, 2023
Panel Brand NEC
Panel Size 10.4 inch
Resolution 640(RGB)×480, VGA, 76PPI
Display Area 211.2(W)×158.4(H) mm
Outline Size 243(W)×185.1(H) ×11(D) mm
Brightness 900 cd/m² (Typ.)
Viewing Angle 80/80/80/80 (Typ.)(CR≥10)
Best View on -
Display Colors 262K/16.7M 40% NTSC
Frequency 60Hz
Weight 475/500g (Typ./Max.)

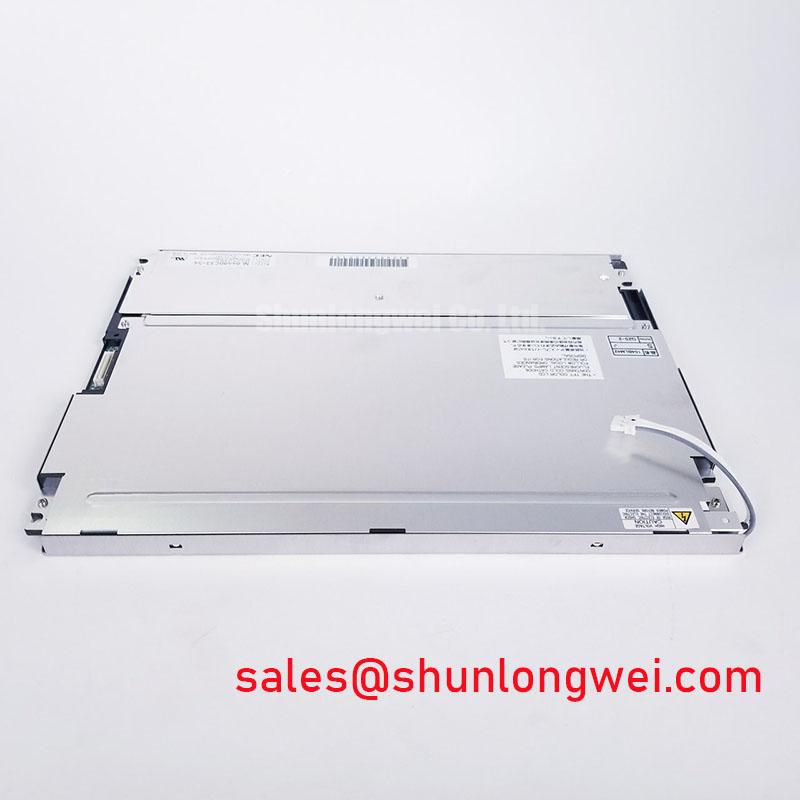

Panel Model NL6448BC33-71F
Panel Type a-Si TFT-LCD , LCM
Pixel Format RGB Vertical Stripe
Bezel Opening 215.4(W)×161.8(H) mm
Surface Clear, Hard coating (3H)
Contrast Ratio 900:1 (Typ.) (TM)
Display Mode TN, Normally White, Transmissive
Response Time 3/15 (Typ.)(Tr/Td)
Lamp Type 4 strings WLED , 70K hours , Without Driver
Touch Screen Without
Application Without
Interface TypeLVDS (1 ch, 6/8-bit) , 20 pins Connector
Power Supply3.3V (Typ.)
EnvironmentOperating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²)
