Diagonal Size: 10.4 inches

Panel Type: a-Si TFT-LCD, LCM

Resolution: 800 (RGB) × 600 pixels, SVGA

Pixel Density: 96 pixels per inch (PPI)

Pixel Format: RGB Vertical Stripe

Active Area: 211.2 mm (width) × 158.4 mm (height)

Bezel Opening: 215.2 mm (width) × 162.4 mm (height)

Outline Dimensions: Not provided

Luminance: 110 cd/m² (Typical)

View Direction: 6 o'clock

Viewing Angles: 50 degrees (left), 50 degrees (right), 20 degrees (up), 40 degrees (down) with a contrast ratio of ≥10

Support Color: 262,000 colors, 43% NTSC

Form Style: Wedge (PCBA Bent, T≥5.2mm)

Frame Rate: 60Hz (Panelook copyright, copying is strictly prohibited), 120Hz (with 60Hz input and embedded MEMC Circuit), 120Hz + 120Hz (120Hz Panel + 120Hz Backlight), 240Hz (with 60Hz input and embedded MEMC Circuit)

Treatment: Not provided

Contrast Ratio: 150:1 (Typical)

Response Time: 40 milliseconds (Max.)(Tr)

Operating Mode: TN (Twisted Nematic), Normally White, Transmissive [Panelook copyright, copy is strictly prohibited]

Light Source: CCFL (Cold Cathode Fluorescent Lamp), 1 piece, Without Driver

Designed For: Laptop

Touch Panel: Not included

Interface Type: CMOS (Complementary Metal-Oxide-Semiconductor), 1 channel, 6-bit, 41-pin connector

Power Supply: 3.3/5.0V (Typical) (VCC)

Environment: Operating Temperature: 0 to 50°C, Storage Temperature: -20 to 60°C

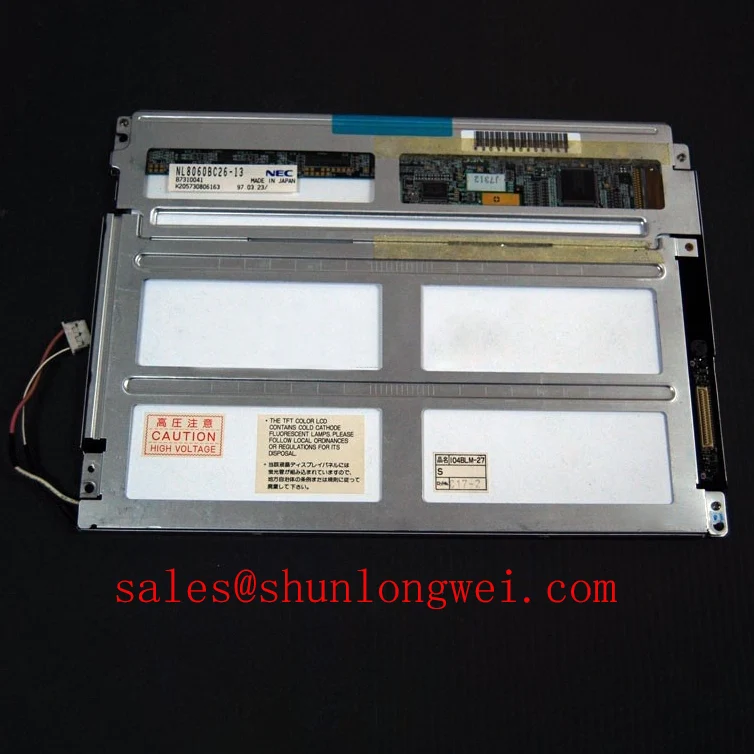

NEC NL8060BC26-13
