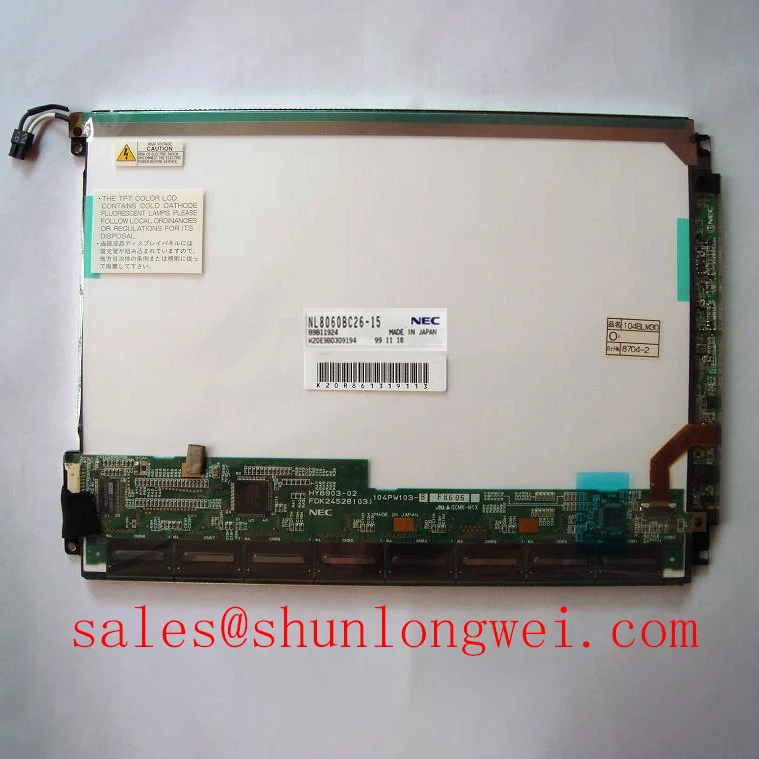

NEC NL8060BC26-15 LCD Display

The NEC 10.4-inch TFT-LCD display module with the model number P/NNL8060BC26-15:

Diagonal Size: 10.4 inches

Panel Type: a-Si TFT-LCD, LCM

Resolution: 800 (RGB) × 600 pixels, SVGA

Pixel Density: 96 pixels per inch (PPI)

Pixel Format: RGB Vertical Stripe

Active Area: 211.2 mm (width) × 158.4 mm (height)

Bezel Opening: 215.2 mm (width) × 162.4 mm (height)

Outline Dimensions: 237.8 mm (width) × 170 mm (height) × 6 mm (depth)

Treatment: Antireflection

Luminance: 100 cd/m² (Typical)

Contrast Ratio: 150:1 (Typical)

Viewing Angles: 50 degrees (left), 50 degrees (right), 20 degrees (up), 40 degrees (down) with a contrast ratio of ≥10

Operating Mode: TN (Twisted Nematic), Normally White, Transmissive

Support Color: 262,000 colors, 40% NTSC

Light Source: CCFL (Cold Cathode Fluorescent Lamp), 1 piece, Without Driver

Designed For: Laptop

Frame Rate: 60Hz

Interface Type: LVDS (Low Voltage Differential Signaling), 1 channel, 6-bit, 14-pin connector

Power Supply: 3.3V (Typical)

Environment:

Operating Temperature: 0 to 50°C

Storage Temperature: -20 to 60°C
