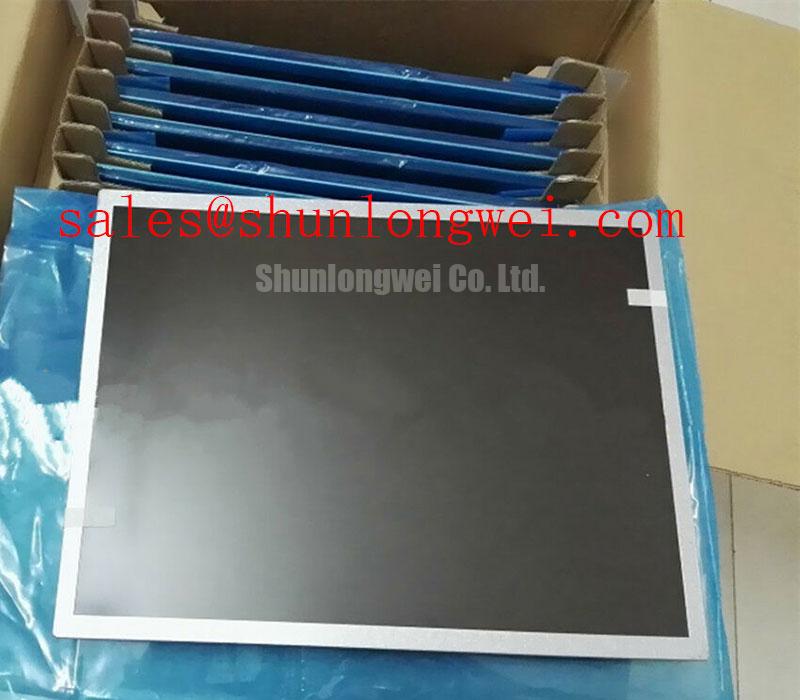

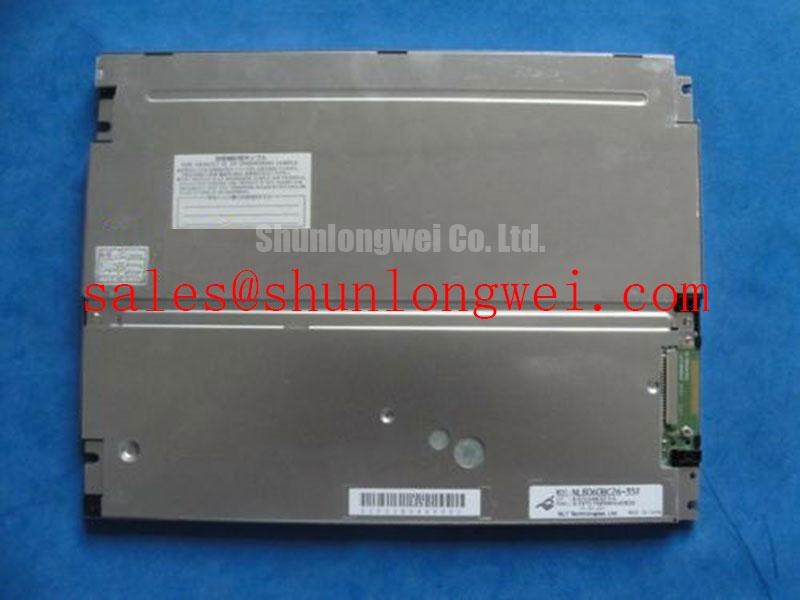

NEC NL8060BC26-35 | Wide Viewing Angle & High-Reliability Industrial Display
The NEC NL8060BC26-35 is a 10.4-inch SVGA TFT-LCD engineered not just to display information, but to ensure its unerring accuracy and accessibility in demanding industrial and medical environments. This display prioritizes operational reliability and visual consistency, addressing the critical pain points of system integrators who cannot compromise on performance or long-term serviceability. It's a cornerstone component for applications where data integrity is paramount.
- Display Technology: 10.4" SVGA (800x600) with NEC's proprietary SFT (Super-Fine TFT) technology, delivering IPS-level performance.
- Viewing Angle Superiority: Symmetrical 80/80/80/80 degree viewing angles ensure zero color or contrast inversion, regardless of observation point.
- Industrial Durability: Built to perform in a wide operating temperature range of -20°C to 70°C, making it suitable for non-climate-controlled settings.
- Maintainability Focus: Features a user-replaceable White LED backlight system, significantly extending the display's service life and reducing total cost of ownership.
- Primary Applications: Medical diagnostic equipment, industrial process control (HMI), high-precision test and measurement instruments, and transportation systems.
Technical Deep Dive: Core Advantages of the NL8060BC26-35
Uncompromised Visuals with SFT (Super-Fine TFT) Technology
Standard TFT displays often suffer from significant color and contrast shifts when viewed from an angle—a critical flaw in collaborative or dynamic environments. The NEC NL8060BC26-35 solves this with SFT technology. By optimizing the liquid crystal alignment, SFT ensures that color fidelity and luminance remain stable across an exceptionally wide viewing cone. For an engineer or medical professional, this means the data they see is the data that's true, eliminating ambiguity and the risk of misinterpretation, whether they are viewing a patient's vitals or a machine's status from across the room.
Engineered for Longevity and Harsh Conditions
System downtime is costly. The NL8060BC26-35 is designed with two key features to maximize uptime. First, its ability to operate flawlessly from freezing cold to high heat makes it a reliable choice for factory floors, outdoor kiosks, or vehicle cabins. This robustness is further enhanced by its replaceable backlight. Unlike displays where a failed backlight means replacing the entire unit, this module allows for a simple, cost-effective component swap. This design philosophy transforms the display from a disposable part into a long-term, maintainable asset. For more insight into designing for temperature extremes, see this article on wide temperature TFT displays.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | NL8060BC26-35 |
| Screen Size | 10.4 inches |
| Resolution | 800(RGB)×600 [SVGA] |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Signal Interface | LVDS (1 ch, 6-bit) |
| Operating Temperature | -20 ~ 70 °C |
| Backlight | WLED, with replaceable driver |
Application Scenarios & Value Proposition
- Medical Imaging & Diagnostics: In a diagnostic setting, multiple clinicians may view a screen simultaneously. The distortion-free viewing angles of the NL8060BC26-35 ensure that every viewer sees the exact same image, which is critical for accurate patient diagnosis.
- Industrial Automation (HMI): On a factory floor, an operator might need to glance at a control panel while moving or from an awkward angle. The anti-glare surface and stable image prevent misreadings that could lead to operational errors or safety incidents.
- Test and Measurement: For lab equipment that generates precise graphical data, the color stability and contrast of this display provide engineers with an accurate visual representation of their measurements, preventing costly errors in R&D and quality control.
- Point-of-Sale (POS) Systems: Delivers a clear, professional image to both the operator and the customer, enhancing the user experience and withstanding the rigors of a commercial environment.
Frequently Asked Questions (FAQ)
- What is the main advantage of the LVDS interface?
The Low-Voltage Differential Signaling (LVDS) interface on the NL8060BC26-35 provides excellent noise immunity, which is crucial in electrically noisy industrial environments. It also allows for longer cable runs between the display and the controller board without signal degradation. - How difficult is it to replace the backlight?
The process is designed for field serviceability. The LED driver board is a separate, accessible component, allowing technicians to perform the replacement with standard tools, minimizing system downtime and repair complexity. - Is this display suitable for outdoor use?
With its 400-nit brightness and wide temperature range, the NEC NL8060BC26-35 is robust for many semi-outdoor or sheltered applications. For systems exposed to direct, bright sunlight, we recommend exploring our dedicated portfolio of high-brightness and optically bonded industrial LCD modules.
Choosing the right display is an investment in your system's reliability and usability. The NEC NL8060BC26-35 provides a technically superior and cost-effective solution for applications that demand nothing less than visual perfection and long-term performance. For detailed integration support or to request a quote, please contact our technical team.
