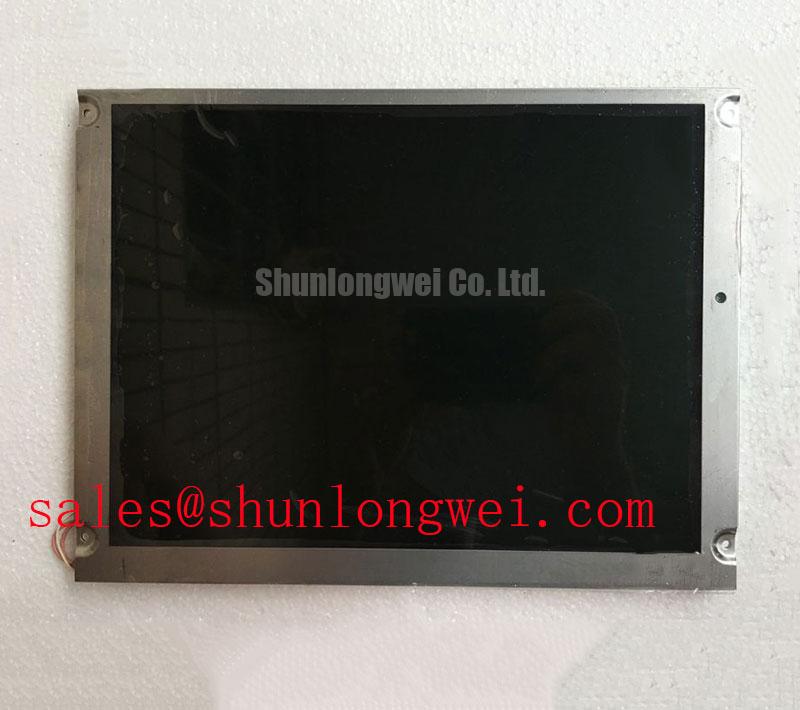

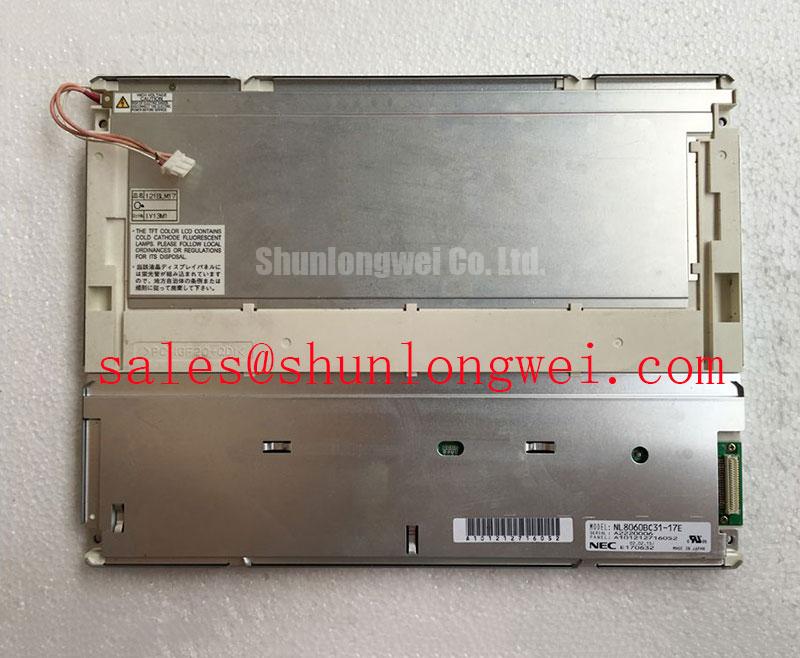

The model number P/NNL8060BC31-17E:
Diagonal Size: 12.1 inches
Panel Type: a-Si TFT-LCD, LCM
Resolution: 800 (RGB) × 600 pixels, SVGA
Pixel Density: 82 pixels per inch (PPI)
Pixel Format: RGB Vertical Stripe
Active Area: 246 mm (width) × 184.5 mm (height)
Bezel Opening: 249.0 mm (width) × 187.5 mm (height)
Outline Dimensions: 280 mm (width) × 210 mm (height) × 13.7 mm (depth)
Surface: Clear, Hard coating (3H)
Brightness: 400 cd/m² (Typical)
Contrast Ratio: 350:1 (Typical)
Viewing Angles: 55 degrees (left), 55 degrees (right), 40 degrees (up), 50 degrees (down) with a contrast ratio of ≥10
Response Time: 15 milliseconds (Typical) for Tr and 55 milliseconds (Typical) for Td (Tr/Td)
View Direction: 6 o'clock
Operating Mode: TN (Twisted Nematic), Normally White, Transmissive
Support Color: 262,000 colors, 43% NTSC
Lamp Type: 2 pieces CCFL (Cold Cathode Fluorescent Lamp), Without Driver
Panel Weight: 760 grams (Typical), 800 grams (Maximum)
Application: Industrial
Frame Rate:
60Hz
120Hz (with 60Hz input and embedded MEMC Circuit)
120Hz + 120Hz (120Hz Panel + 120Hz Backlight)
240Hz (with 60Hz input and embedded MEMC Circuit)
Touch Panel: Not included
Interface Type: CMOS, 1 channel, 6-bit, 41-pin connector
Input Voltage: 3.3/5.0V (Typical) (VCC)
Environment:
Operating Temperature: 0 to 50°C
Storage Temperature: -20 to 60°C
Vibration Level: 2.0G (19.6 m/s²)
