NLB104SV01L-01,

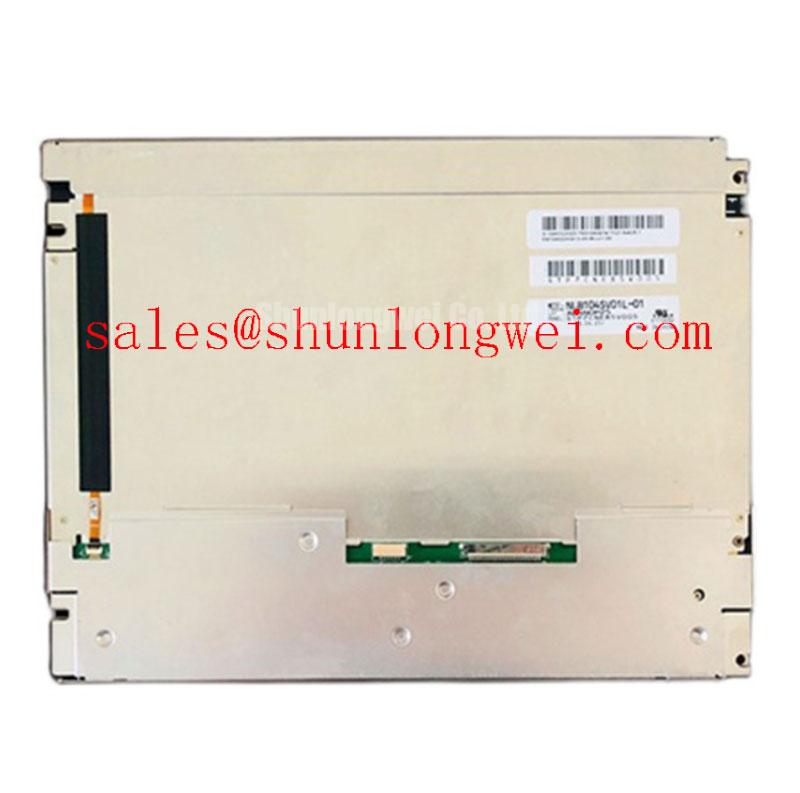

# NEC #NLB104SV01L-01 New Stock, NLT 10.4 inch LCM 800×600 400 900:1 80/80/80/80 262K/16.7M WLED LVDS;, #LCD_Display, #LCD, #NLB104SV01L_01
Email: sales@shunlongwei.com
URL:
https://www.slw-ele.com/nlb104sv01l-01.html
Brand NEC
Model NLB104SV01L-01
Diagonal Size 10.4 inch
Type a-Si TFT-LCD, LCM
Pixel Format 800(RGB)×600 [SVGA] 96PPI
Configuration RGB Vertical Stripe
Active Area 211.2(H)×158.4(V) mm
Outline Dim 243(H)×185.1(V) ×11(D) mm
Treatment Antiglare, Hard coating (3H)
Luminance 400 cd/m² (Typ.)
Contrast Ratio 900:1 (Typ.) (TM)
View Direction 6 o'clock
Response Time 3/15 (Typ.)(Tr/Td)
Viewing Angle 80/80/80/80 (Typ.)(CR≥10) Left / Right / Up / Down
Operating Mode TN, Normally White, Transmissive
Support Color 262K/16.7M 40% NTSC
Light Source WLED , 50K hours , With LED Driver
Weight 430/465g (Typ./Max.)Designed ForIndustrial
Frame Rate 60Hz
Touch Panel Without
Interface Type LVDS (1 ch, 6/8-bit) , 20 pins Connector
Power Supply 3.3V (Typ.)
Environment Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²)
NLB104SV01L-01 inverter, NLB104SV01L-01 power supply, NLB104SV01L-01 electronic board, NLB104SV01L-01 VGA board, NLB104SV01L-01 touchscreen available.
