Content last revised on October 9, 2024

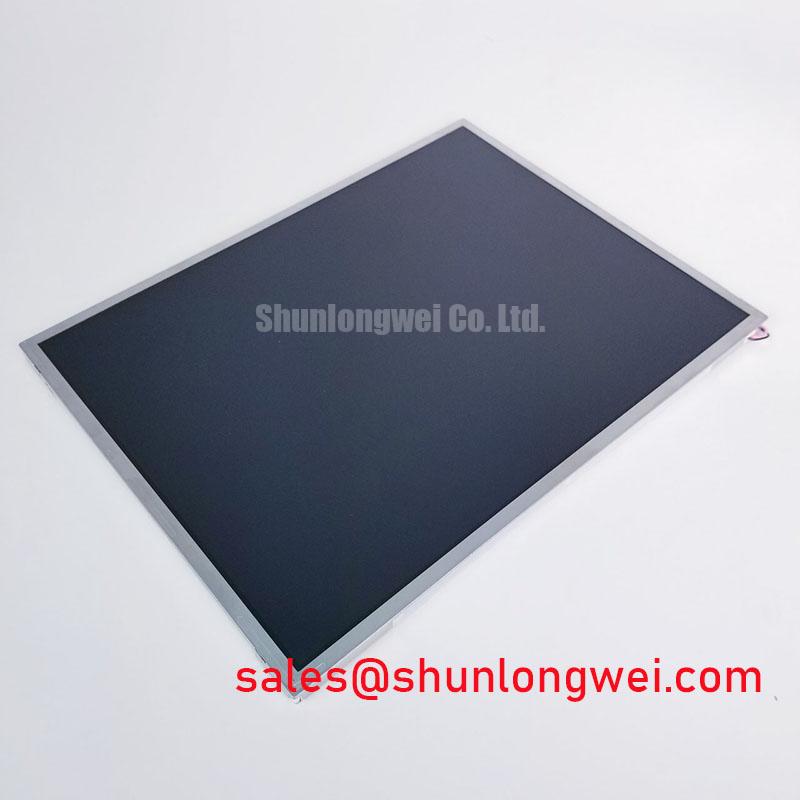

Brand: TIANMA
Model: P/NP0650VGF1MA10
Diagonal Size: 6.5 inches
Panel Type: a-Si TFT-LCD, LCM (Liquid Crystal Module)
Resolution: 640(RGB)×480 pixels (VGA)
Pixel Format: RGB Vertical Stripe
Active Area: 132.48(W)×99.36(H) mm
Bezel Opening: 135.48(W)×102.36(H) mm
Outline Dimensions: 153(H)×118(V)×11.2(D) mm
Treatment: Antiglare
Luminance: 800 cd/m² (Typical)
Contrast Ratio: 900:1 (Typical)
Viewing Angle: 85°/85°/85°/85° (Typical) (Left / Right / Up / Down)
Response Time: 25 ms (Typical) (Tr+Td)
Operating Mode: SFT (Super Fine TFT), Normally Black, Transmissive
IPS Family: AAS, ADS, AHVA, FFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich
VA Family: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA
Support Color: 262K/16.7M (99% sRGB coverage)
Backlight: 6S2P WLED (White Light Emitting Diode), 70K hours, With LED Driver
Mass: 161g (Typical)
Used For: Industrial Outdoor High Brightness Automotive Display
Refresh Rate: 60Hz
120Hz (60Hz Input): Embedded MEMC Circuit
120Hz+120Hz: 120Hz Panel + 120Hz Backlight
240Hz (60Hz Input): Embedded MEMC Circuit
Touch Panel: Without
Signal Type: LVDS (Low-Voltage Differential Signaling), 1 channel, 6/8-bit, 20 pins Connector
Voltage Supply: 3.3V (Typical)
Max. Ratings:
Storage Temp.: -40°C to 90°C
Operating Temp.: -30°C to 80°C
Vibration Level: 2.0G (19.6 m/s²)
