Content last revised on September 18, 2023
Brand: TIANMA

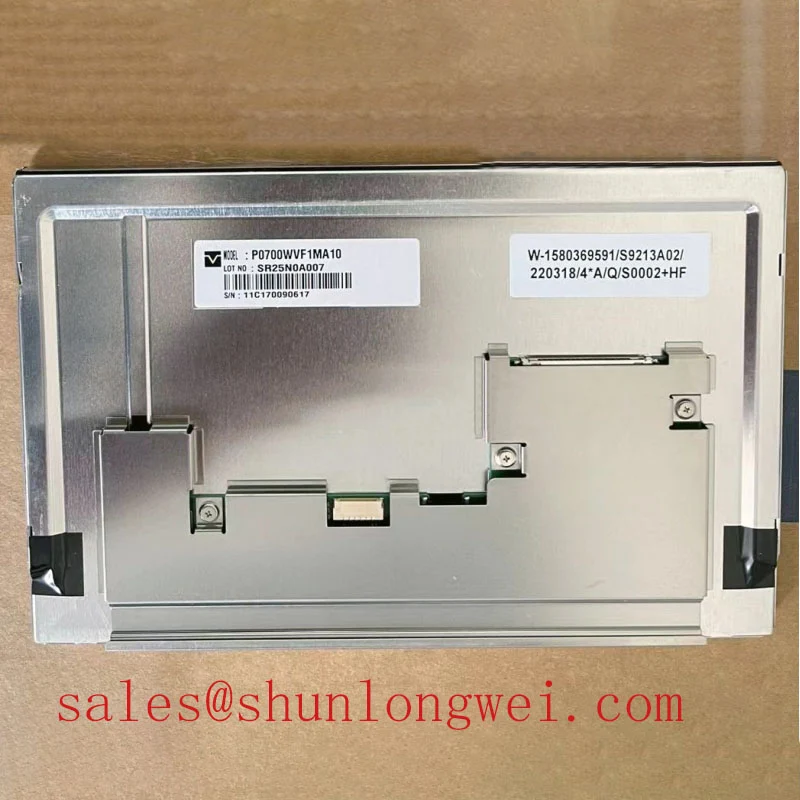

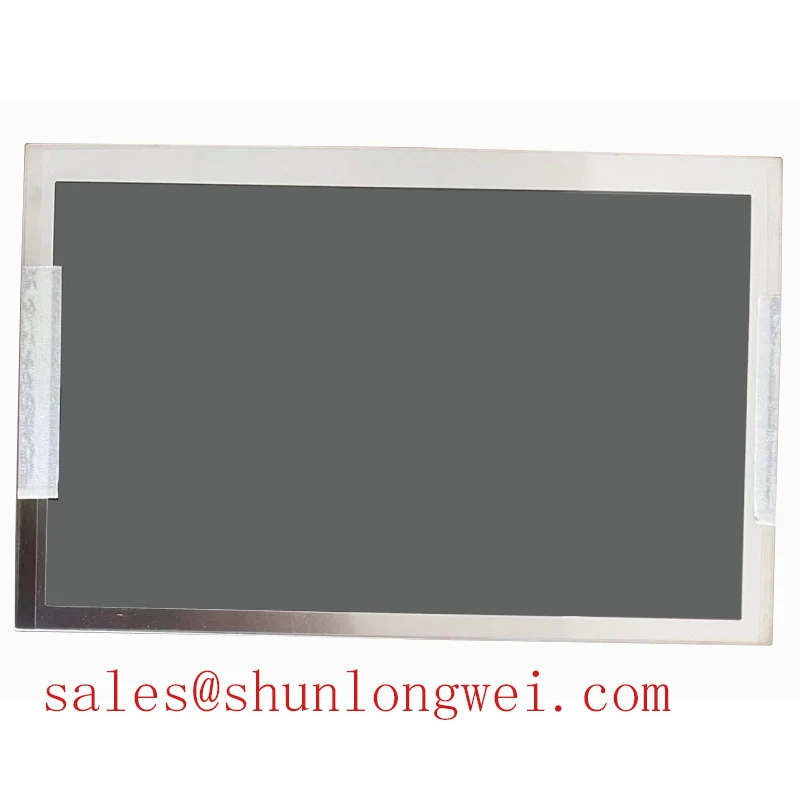

Model: P/NP0700WVF1MA00
Diagonal Size: 7.0 inches
Panel Type: a-Si TFT-LCD, LCM (Liquid Crystal Module)
Resolution: 800 (RGB) × 480, WVGA
Pixel Format: RGB Vertical Stripe
Active Area: 152.4 (W) × 91.44 (H) mm
Bezel Opening: 155.4 (W) × 94.94 (H) mm
Outline (Dimensions): 169.8 × 109.7 × 10.87 (H×V×D) mm
Treatment: Antiglare
Luminance: 1500 cd/m² (Typical)
Contrast Ratio: 1000:1 (Typical)
Viewing Angle: 88/88/88/88 (Typical) - This represents the viewing angles in degrees (Left, Right, Up, Down) with a minimum contrast ratio of 10.
Response Time: 25/35 ms (Typical/Maximum) - Tr+Td represents the total response time.
Good View at: Symmetry
Work Mode: SFT (Super Fine TFT), Normally Black, Transmissive
Color Depth: 262K/16.7M (70% NTSC)
Backlight: 7S2P WLED (White Light Emitting Diodes), 100K hours lifespan, No Driver
Mass: 210g (Typical)
Used for: Industrial Outdoor High Brightness applications
Refresh Rate:
60Hz (Standard)
120Hz (60Hz Input): Embedded MEMC (Motion Estimation, Motion Compensation) Circuit
120Hz + 120Hz: 120Hz Panel Refresh + 120Hz Backlight Refresh
240Hz (60Hz Input): Embedded MEMC Circuit
Touchscreen: Without
Signal Type: LVDS (Low Voltage Differential Signaling), 1 channel, 6/8-bit, 20 pins Connector
Voltage Supply: 3.3V (Typical)
Max. Ratings:
Storage Temperature: -40 ~ 90°C
Operating Temperature: -30 ~ 80°C
